Xerox PHASER 3435 Service Manual

General Procedures and Information
Phaser 3435 5/08 6-49
GP 11 Print Cartridge Service
It is not guaranteed for the default caused by using other print cartridge other than the cartridge
supplied by Xerox or caused by non-licensed refill production.
Precautions on Safe Keeping of Print Cartridge
Excessive exposure to direct light more than a few minutes may cause damage to the cartridge.
Service for the Life of Print Cartridge
If the printed image is light due to the life of the toner, you can temporarily improve the print quality
by redistributing the toner (Shake the print cartridge), however, you should replace the print car-
tridge to solve the problem thoroughly.
Distinguish Function for Choice Cartridge
An EEPROM is mounted to a cartridge for distinguishing a choice print cartridge. Items written in
below are detected by checking up memory information. If the data of the EEPROM is broken, it
cannot be detected.
1. Detecting existence of a print cartridge: It detects whether a print cartridge is mounted or not.
2. Detecting a serial number of a print cartridge.
3. Detecting a print cartridge supplying company: If it is not original, it is not operated.
4. Detecting an OPC rotating counter: It detects the life span of an OPC drum.

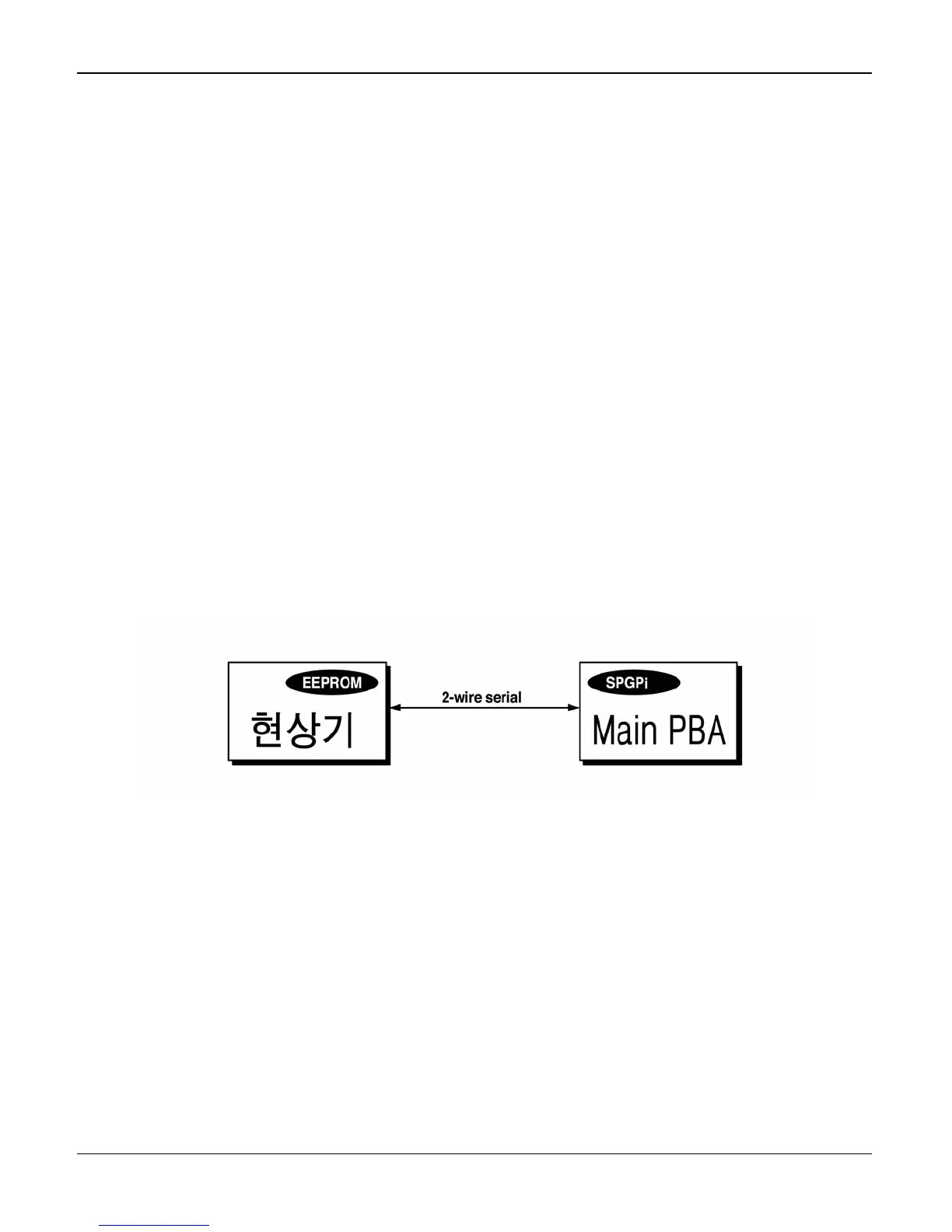

Figure 1
Distinguish a refilled cartridge
1. Check whether One-way screw is damaged or not
2. Check the cartridge on configuration sheet (Print out the self-test configuration): Manufacture
date and serial number of print cartridge are different (permissible range: +/- 1).
Error message (LCD window) related in a toner sensor
It explains a message related in toner sensor in a LCD.
Invalid Toner
- Contents: It is displayed when a supplier is different between a print cartridge and a
machine. If this message is shown up, a printing process cannot operate.

Xerox PHASER 3435 Specifications

General

Color	No
Maximum resolution	600 x 600 DPI
Time to first page (black, normal)	8.5 s
Print speed (black, normal quality, A4/US Letter)	33 ppm
Internal memory	64 MB
Sound power level (standby)	25 dB
Total input capacity	300 sheets
Total output capacity	150 sheets
Maximum input capacity	550 sheets
Media weight (tray 1)	60 - 163 gsm
Paper tray media types	Envelopes
Non-ISO print media sizes	Executive (184 x 267mm), index card, Letter (media size), Legal (media size)
ISO A-series sizes (A0...A9)	A4, A5, A6
ISO B-series sizes (B0...B9)	B5
Maximum ISO A-series paper size	A4
Network ready	Yes
Authentication method	IP filtering, 802.1x
Power consumption (active)	526 W
Maximum operating temperature range (T-T)	10 - 32 °C
Maximum duty cycle	80000 pages per month
Power consumption (standby)	36 W
Power consumption (PowerSave)	11 W
Operating temperature (T-T)	50 - 90 °F
Operating relative humidity (H-H)	20 - 80 %
Certification	CB Report (IEC 60950-1/EN 60950-1), Certified to UL 60950-1/CSA 60950-1-03, 1st Edition, CE Marked, EMC Directive 2004/108/EC, FCC Part 15, Class B, Low Voltage Directive 2006/95/EC, R&TTE Directive 1999/5/EC, RoHS Directive 2002/95/EC
