8-54 Phaser 6130 Color Laser Printer Service Manual
Service Parts Disassembly
Electrical

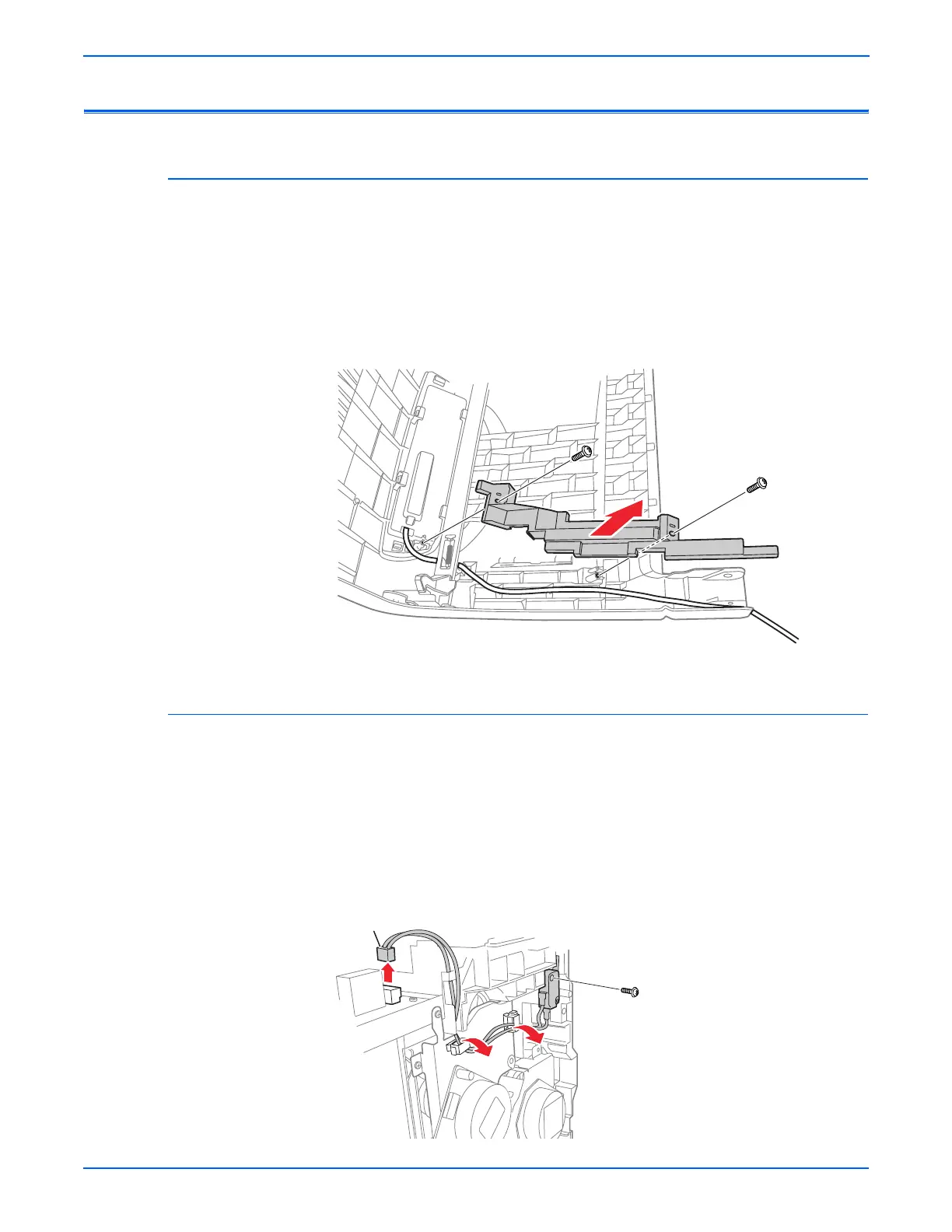

Control Panel Harness
(PL1.1.17)
1. Remove the Control Panel (page 8-13)
2. Remove the Front Cover (page 8-19).
3. Remove the two screws (silver, tapping) that attach the Right Guide to the
Front Cover, and lift off the Right Guide.
4. Release the Control Panel Harness from the hooks in the Front Cover and
remove the Control Panel Harness.
Interlock Harness
(PL8.2.5)
1. Remove the Left Side Cover (page 8-17).
2. Unplug the connector (P/J44) of the Interlock Harness on the LVPS
Board.
3. Release the clamps that attach the harness of the Interlock Harness,
remove the harness.
4. Remove the screw (sliver, tap, 6mm) that attaches the Interlock Harness
to the printer, remove the Interlock Harness.
s6130-149
P/J44
