Xerox
®
W130 / W110 Scanner Scanner Options, Maintenance and Troubleshooting
6-18 User Guide

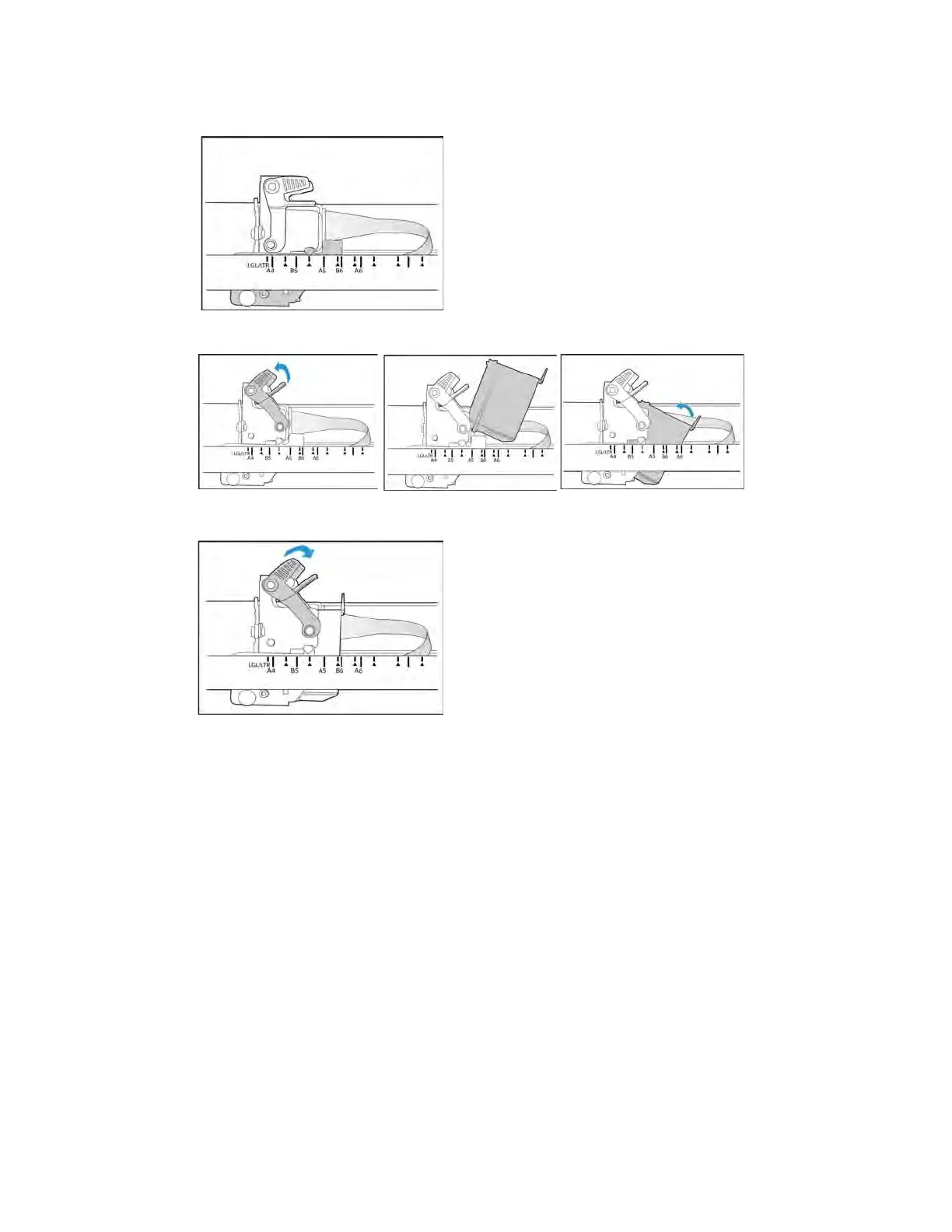

4. Move the ink cartridge carriage to the imprinter unit.
5. Insert the ink cartridge into the carriage as shown in the diagram.
6. Lower the arms on the carriage to lock the ink cartridge in place.
7. Reverse this procedure to remove the ink cartridge when it is time to be replaced.
