Xiaomi QiCycle EF1 User Manual

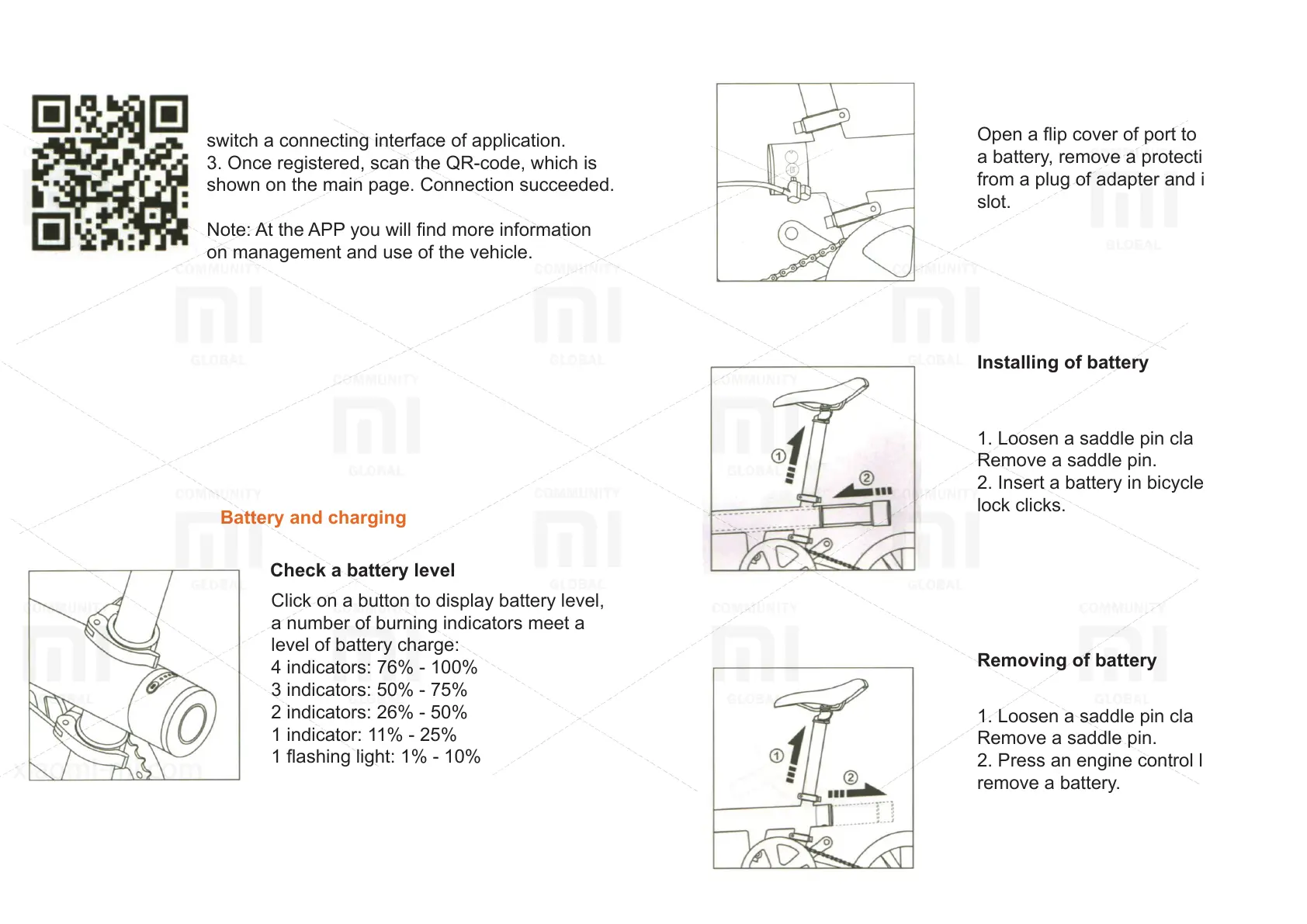

Installing an АРР
1. Scan the QR-code, to download an APP.
2. At rest, press the top/bottom display button to
switch a connecting interface of application.
3. Once registered, scan the QR-code, which is
shown on the main page. Connection succeeded.
Note: At the APP you will nd more information
on management and use of the vehicle.
Battery and charging
Click on a button to display battery level,
a number of burning indicators meet a
level of battery charge:
4 indicators: 76% - 100%
3 indicators: 50% - 75%
2 indicators: 26% - 50%
1 indicator: 11% - 25%
1 ashing light: 1% - 10%
Check a battery level
Open a ip cover of port to charge
a battery, remove a protective cover
from a plug of adapter and insert it into
slot.
1. Loosen a saddle pin clamp.
Remove a saddle pin.
2. Insert a battery in bicycle frame until
lock clicks.
Battery charging
Installing of battery
Removing of battery
1. Loosen a saddle pin clamp.
Remove a saddle pin.
2. Press an engine control lever and
remove a battery.

Xiaomi QiCycle EF1 Specifications

Power

continuous output power	180 W
rated output torque	7.3 Nm
maximum charging voltage	42 V
power input	36 V --- 6 A

Battery

battery capacity	5.8 Ah
battery type	18650 mAh lithium-ion battery
recharging time	3 hours
protection of the voltage	24.5 V

Performance

maximum speed	20 km/h
rated speed	about 260 r/min
duration of continuous use	45 km
payload	100 kg

Display and Connectivity

display size	1.8 inches
display resolution	160 x 128
type of wireless connectivity	Bluetooth 4.0

Weight and Dimensions

weight	14.5 kg
size	1290 x 540 x 910 mm
wheel size	16 inches
distance between front and rear wheels	870 mm
