Chapter 1: SP605 Evaluation Board
User Pushbutton Switches
The SP605 provides five active-High pushbutton switches: SW4, SW5, SW6, SW7 and SW8.
The five pushbuttons all have the same topology as the sample shown in Figure 1-16. Four
pushbuttons are assigned as GPIO, and the fifth is assigned as a CPU_RESET. Figure 1-16
and Table 1-24 describe the pushbutton switches.
X-Ref Target - Figure 1-16

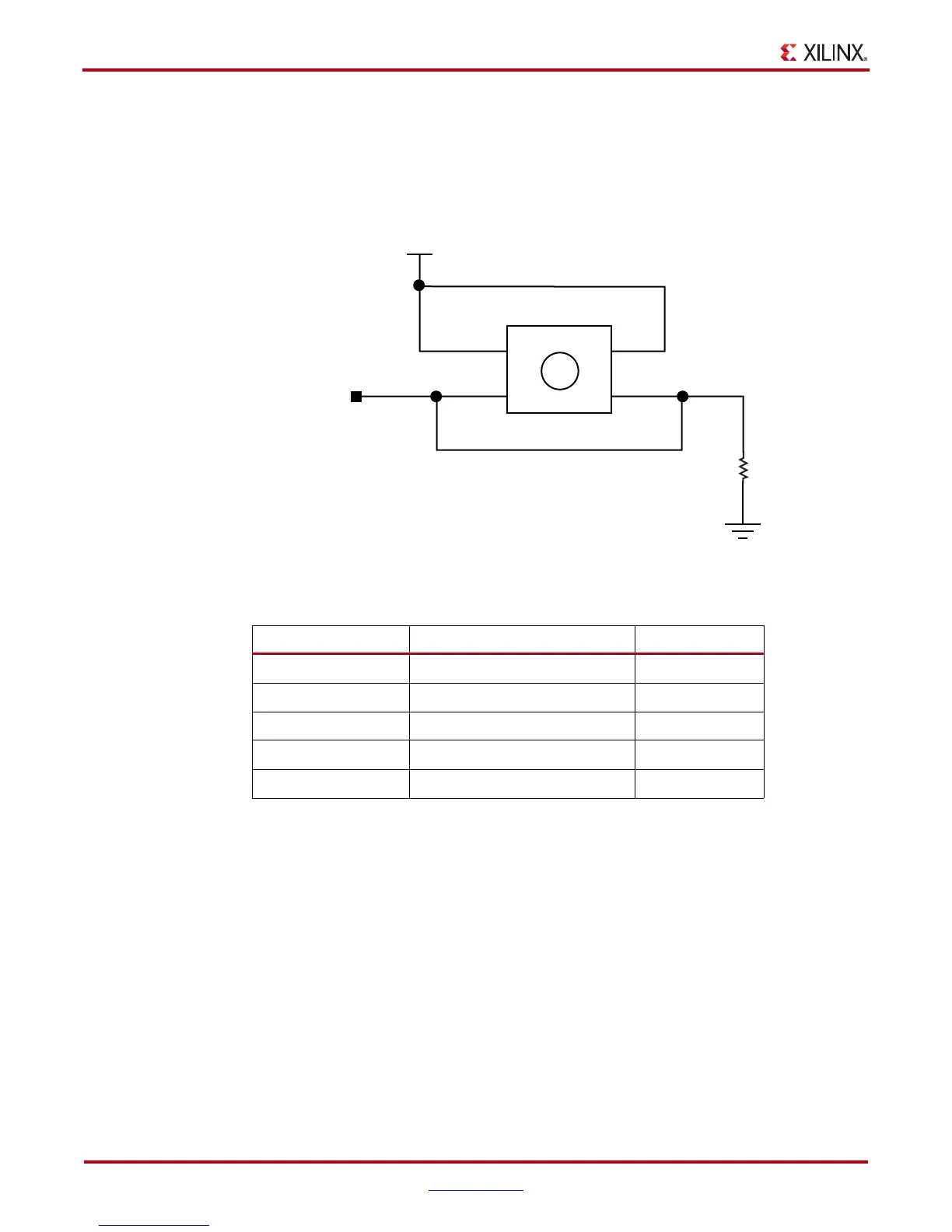

Figure 1-16: User Pushbutton Switch (Typical)
Table 1-24: Pushbutton Switch Connections
U1 FPGA Pin Schematic Netname Switch Pin
F3 GPIO_BUTTON_0 SW4.2
G6 GPIO_BUTTON_1 SW7.2
F5 GPIO_BUTTON_2 SW5.2
C1 GPIO_BUTTON_3 SW8.2
H8 CPU_RESET SW6.2
VCC1V5
CPU_RESET
Pushbutton
1
1
2
4
2
SW6
R230
1.00K
1%
1/16W
3
P1
P2 P3
P4
UG526_16_092409
