Xilinx VC707 Getting Started

Getting Started with the VC707 Evaluation Kit www.xilinx.com 13
UG848 (v1.4.1) October 14, 2015
AMS 101 Card Demonstration
Extract the AMS Design Files
1. Go to the VC707 Evaluation Kit website and navigate to the Docs & Designs tab.
2. Click Virtex-7 FPGA VC707 Evaluation Kit.
3. Navigate to the software version that you are using, click + to expand the document
type list, and click Targeted Reference Designs.
4. Download the “AMS Targeted Reference Design for Virtex-7 FPGA VC707 Evaluation
Kit” zip file.
5. After downloading the design files, open the xadc_eval_design_vc707_vxx
folder and unzip the files to a working directory on the host computer.
6. Open the ChipScope™ Pro Analyzer in the ISE design tools.
7. Click Open_cable.
8. Select Device, choose Configure, and click Select New File.
9. Open the AMS design in the xadc_eval_design_vc707_vxx folder by opening the
ready_to_test folder and selecting the xadc_eval_design.bit file.
Set Up the Hardware
1. Complete the tasks under Preliminary Setup, page 6.
2. On the AMS101 card (Figure 1-11), place jumpers across
pins 1–2 on J3 and J5.
X-Ref Target - Figure 1-10

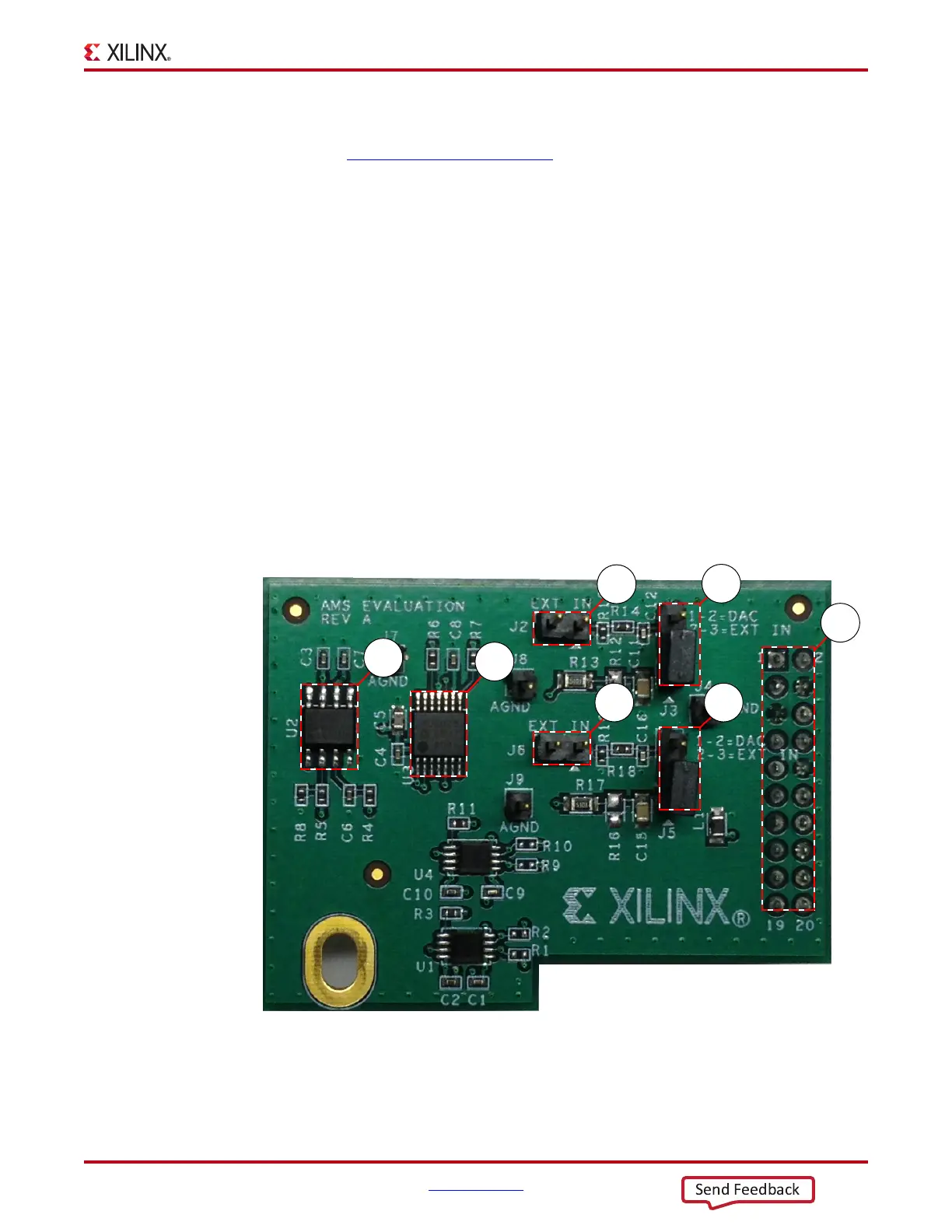

Figure 1-10: AMS101 Evaluation Card
UG848_c1_18_073112
1
2
3
6
7
4
5
2
Send Feedback
