Xilinx VCU118 Software Install And Board Setup
4
of 1
of 1 rating
35 pages
Give review
Manual
Specs
To Next Page
To Next Page
To Previous Page
To Previous Page
Loading...
Setting

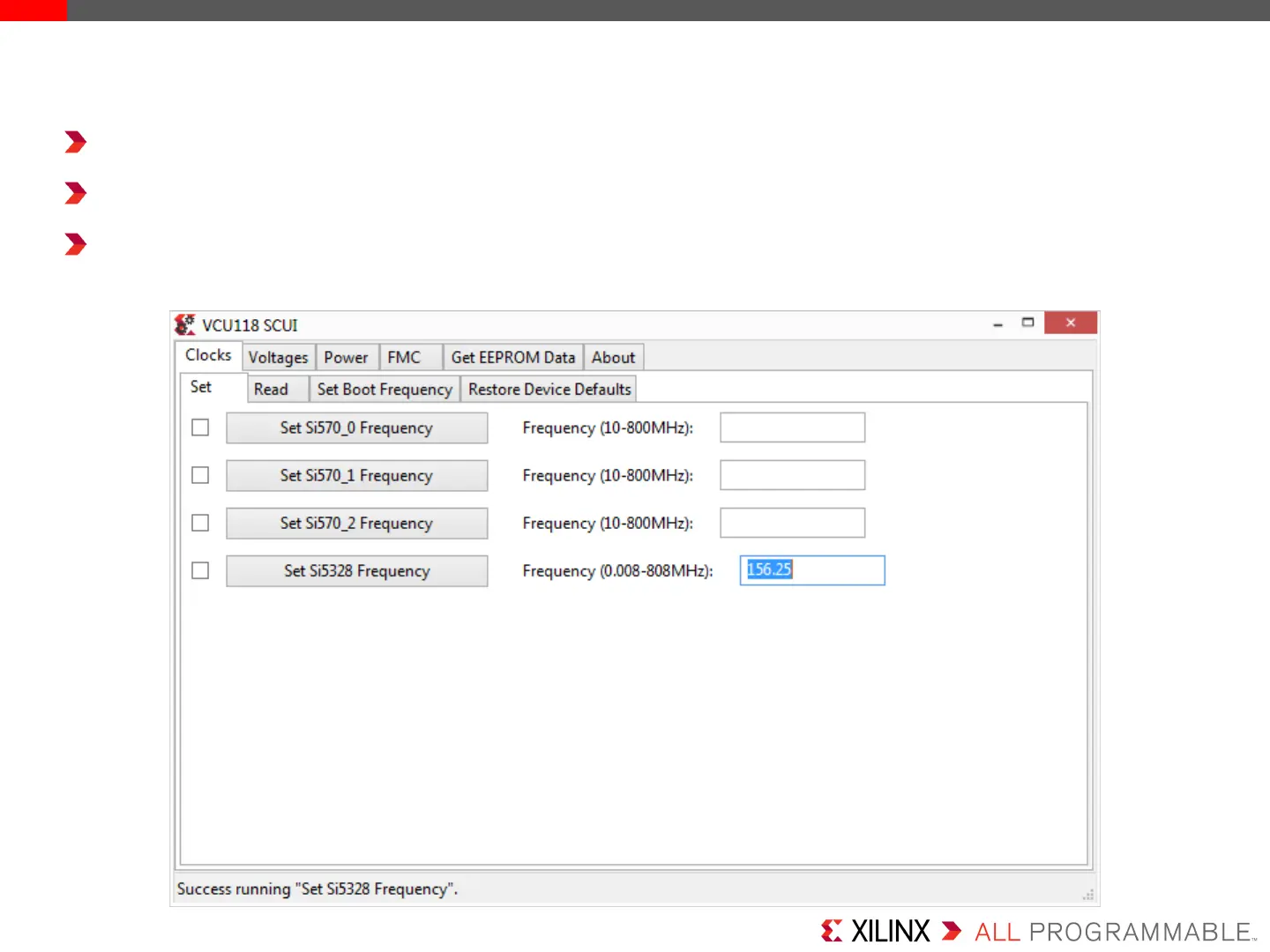

the clocks with the System Controlle
r GUI
See XTP447
for details on using the System Controller
GUI
Select the
Set
tab underneath the
Clocks
tab
Enter
156.25
for
the Si5328 and click
Set Si5328 Frequency
Note:
Presentation applies
to the VCU1
18
20
22
