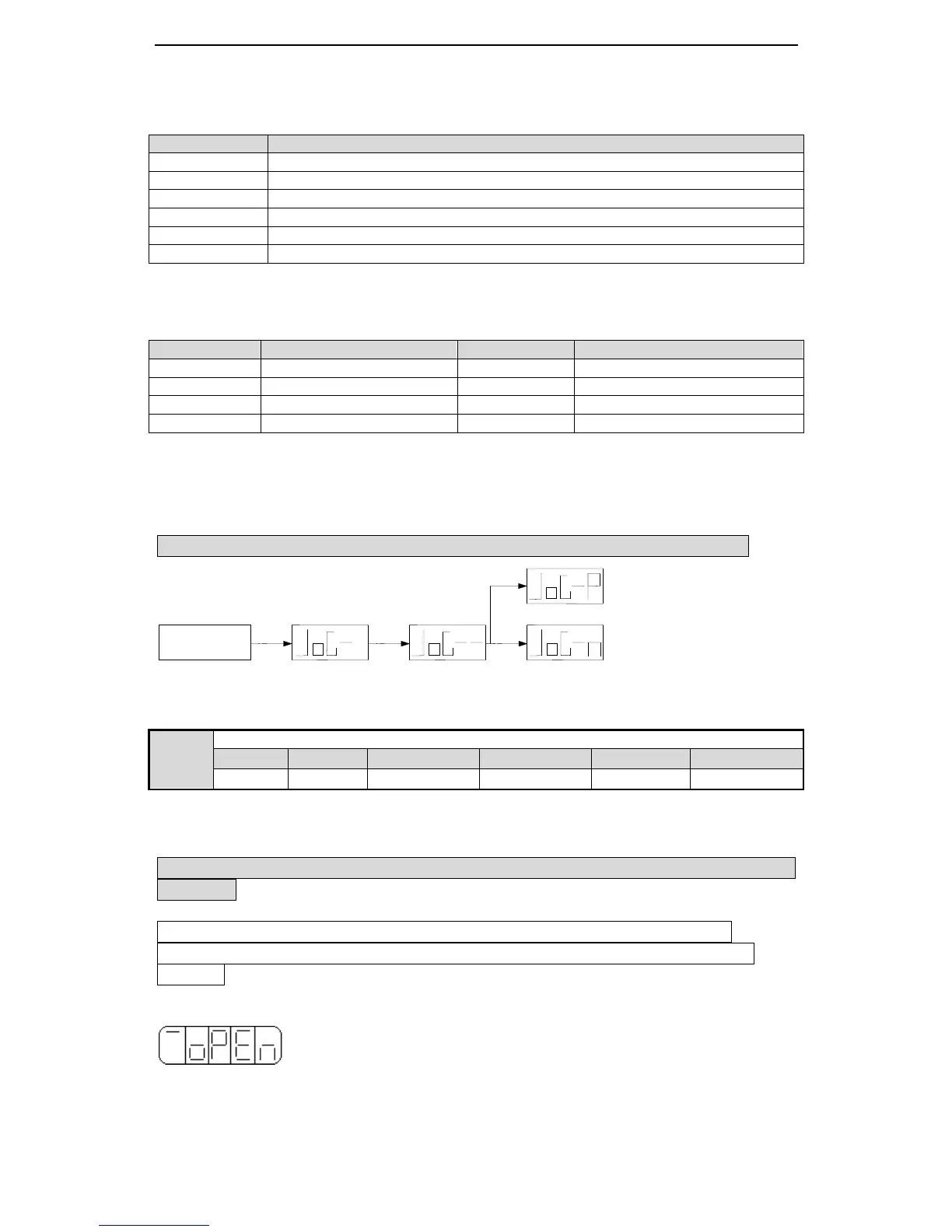

4-4．Auxiliary Function
Use the operate panel to do application in auxiliary function mode.
Group No.
Content
F0-**
Check system information, display the system code and data
F1-**
Auxiliary run mode, display the auxiliary run command and result
F2-**
Set the motor code
F3-**
Check the alarm information, clear the alarm
F4-00
Reset parameters to default value
F5-00
External communication monitoring
4-4-1．F0-XX
Function No.
Description
Function No.
Description
F0-00
Motor Code
F0-01
Servo Series
F0-02
Servo Model
F0-03
Produce Date: Year
F0-04
Produce Date: Month
F0-05
Produce Date: Day
F0-06
Software Version
F0-07
Hardware Version
4-4-2. F1-XX
1. Jog (F1-00)
Make sure that the motor shaft is not connected to the machine before jogging!
P3-04
JOG speed
Unit
Default
Setting range
Suitable mode
Change
Effective
1Rpm
100
0~1000
JOG
Servo OFF
Immediately
2. Trial Operation (F1-01)
Make sure that the motor shaft is not connected to the machine before trial
operation!
When servo drive is connected with non-original encoder line or power line, trial
operation must be run first to ensure that the encoder line or power line is connected
correctly.
Set the display to F1-01, and press and hold ENTER key to enter trial operation mode.
The operate panel displays:
If correctly wired, the motor would rotate in 5 seconds in forward direction (fixed to
counter-clockwise), otherwise the motor would shock or viberate, raising an alarm for
worse. In this case the power must be switched off immedietely and check the wiring
again.
F1-00
Press ENTER
INC
Keep Press ENTER
Reverse
Forward
DEC
