The gain and other parameters will participate in the control during the jog run. According to
the running condition, we can judge whether the parameter setting is appropriate.
P3-18
JOG run speed
Unit
Default setting
Range
Suitable mode
Modify
Effective
1rpm
100
0~1000
JOG run
Servo OFF
At once
(H) debug with motor and machine
Observe the running direction of the machine head. If it is contrary to actual needs, after the
servo OFF, set the parameter p0-05 to 1, and then restart the power to make the change take
effect.
(I) Before the device is enabled, the parameters of the servo drive are set according to the
actual application and adjusted according to the actual application. During the operation,
observe the stability and responsiveness of the operation, and adjust the servo control
parameters appropriately
10. Motor code
Motor code
Power
KW
Torque
Nm
Speed
RPM
Current
A
Overload
times
Motor
code
MS-40ST-M00330-20P1
0.1
0.032
3000
1.8
3
1002
MS-60ST-M00630-20P2
0.2
0.637
3000
1.8
3
1003
MS-60ST-M01330-20P4
0.4
1.27
3000
2.5
3
0004
MS-60ST-M01330-20P4
0.4
1.27
3000
1.8
3
1004
MS-80ST-M02430-20P7
0.75
2.39
3000
3.0
3
0011
MS-80ST-M02430-20P7
0.75
2.39
3000
3.0
3
1011

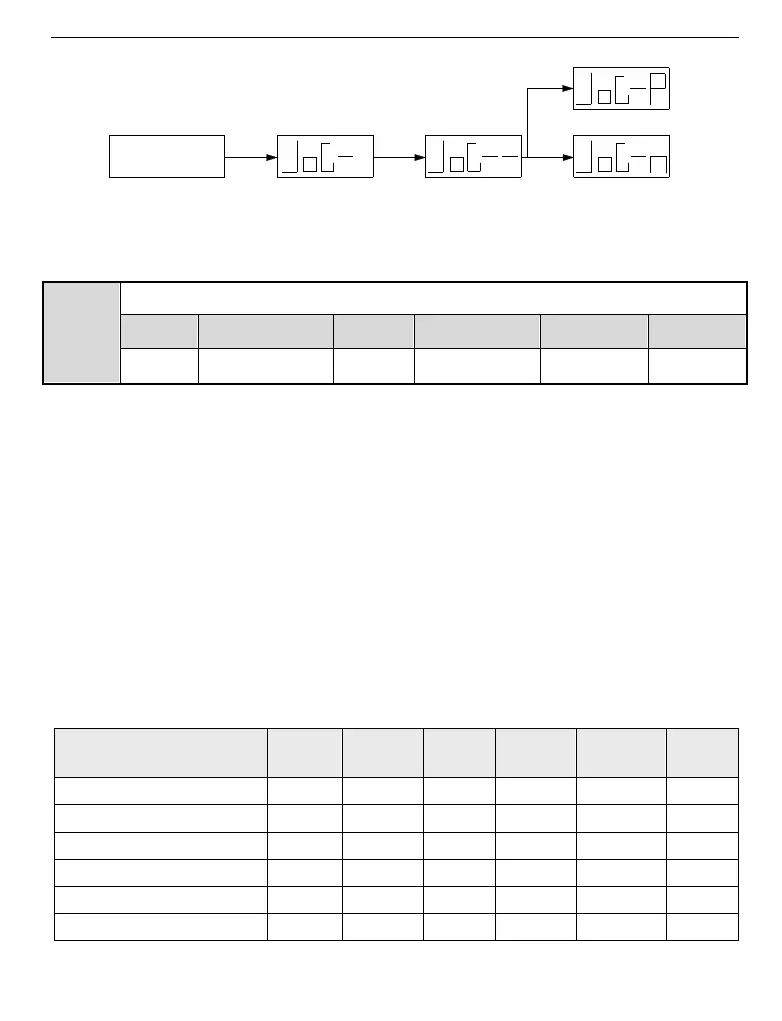

F1-00
Press ENTER
Press INC
Keep press ENTER
Press DEC
Reverse run
Forward run
