Servo Drive Orientation
Install the servo drive perpendicular to the wall so the front panel containing connectors faces
outward.
Cooling

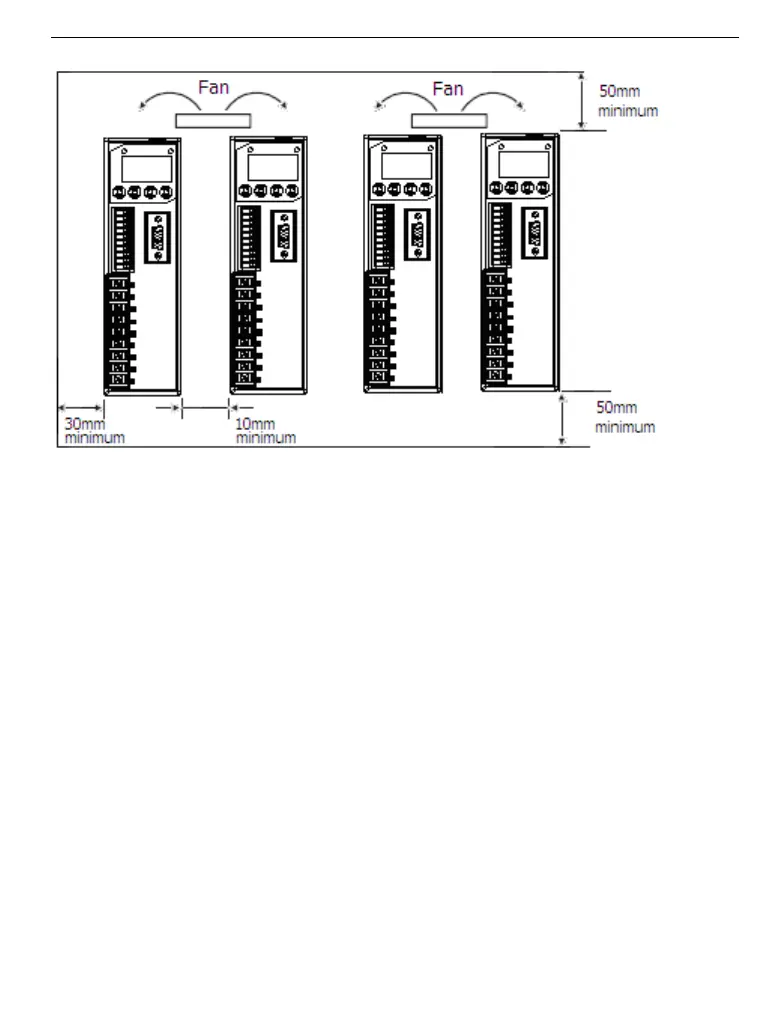

As shown in the figure above, allow sufficient space around each servo drive for cooling by
cooling fans or natural convection.
Side-by-side Installation
When install servo drives side by side as shown in the figure above, make at least 10mm
between and at least 50mm above and below each servo drive. Install cooling fans above the
servo drives to avoid excessive temperature rise and to maintain even temperature inside the
control panel.
