Xray GTX8 User Manual

46
960030
902325
358047
960030
349400
902318
901306
351430
351420
351420
358106
REAR SHOCK
358106
FRONT SHOCK
GTX8
12
BAG
302291 STEEL STEERING BUSHING (2+2)
349400 BODY CLIP (10)
351201 GT COMPOSITE FRONT BUMPER
351210 GT COMPOSITE FRONT UPPER BUMPER
351232 GT COMPOSITE FRONT & REAR SUSPENSION HOLDER PLATE
351240 GT COMPOSITE FRONT UPPER BUMPER BRACE
351410 GT COMPOSITE FRONT HOLDER FOR BODY POSTS
351420 GT COMPOSITE BODY POSTS (2)
351430 GT COMPOSITE REAR HOLDER FOR BODY POSTS
351450 GT COMPOSITE CENTER BODY POST HOLDER
355261 WHEEL NUT - RIBBED - HARD COATED (2)
356200 BRAKE/THROTTLE ARMS & SERVO ARMS - SET
356402 XB8 BRAKE/THROTTLE SYSTEM - SET
356433 GT COMPOSITE BRAKE WIRE HOLDER (2)
356510 CLOSED BALL JOINT 3.9 (4)
358047 STEEL SCREW SHOCK PIVOT BALL WITH HEX (2)
358811 AIR FILTER ELBOW - LOW PROFILE
358821 AIR FILTER BODY & CAP - LOW PROFILE
358841 AIR FILTER FOAM & OIL - LOW PROFILE
358950 SILICONE TUBING 1M (2.4 x 5.5MM)
901303 HEX SCREW SB M3x3 (10)
901306 HEX SCREW SB M3x6 (10)
902308 HEX SCREW SH M3x8 (10)
902310 HEX SCREW SH M3x10 (10)
902312 HEX SCREW SH M3x12 (10)
902314 HEX SCREW SH M3x14 (10)
902316 HEX SCREW SH M3x16 (10)
902318 HEX SCREW SH M3x18 (10)
902319 HEX SCREW SH M3x18 - LEFT THREAD (10)
902325 HEX SCREW SH M3x25 (10)
903414 HEX SCREW SFH M4x14 (10)
903416 HEX SCREW SFH M4x16 (10)
960030 NUT M3 (10)
960040 NUT M4 (10)
961022 WASHER S 2.2 (10)
358106 GTX8 SHOCK ABSORBERS V2 (2)
351220 GT FOAM BUMPER

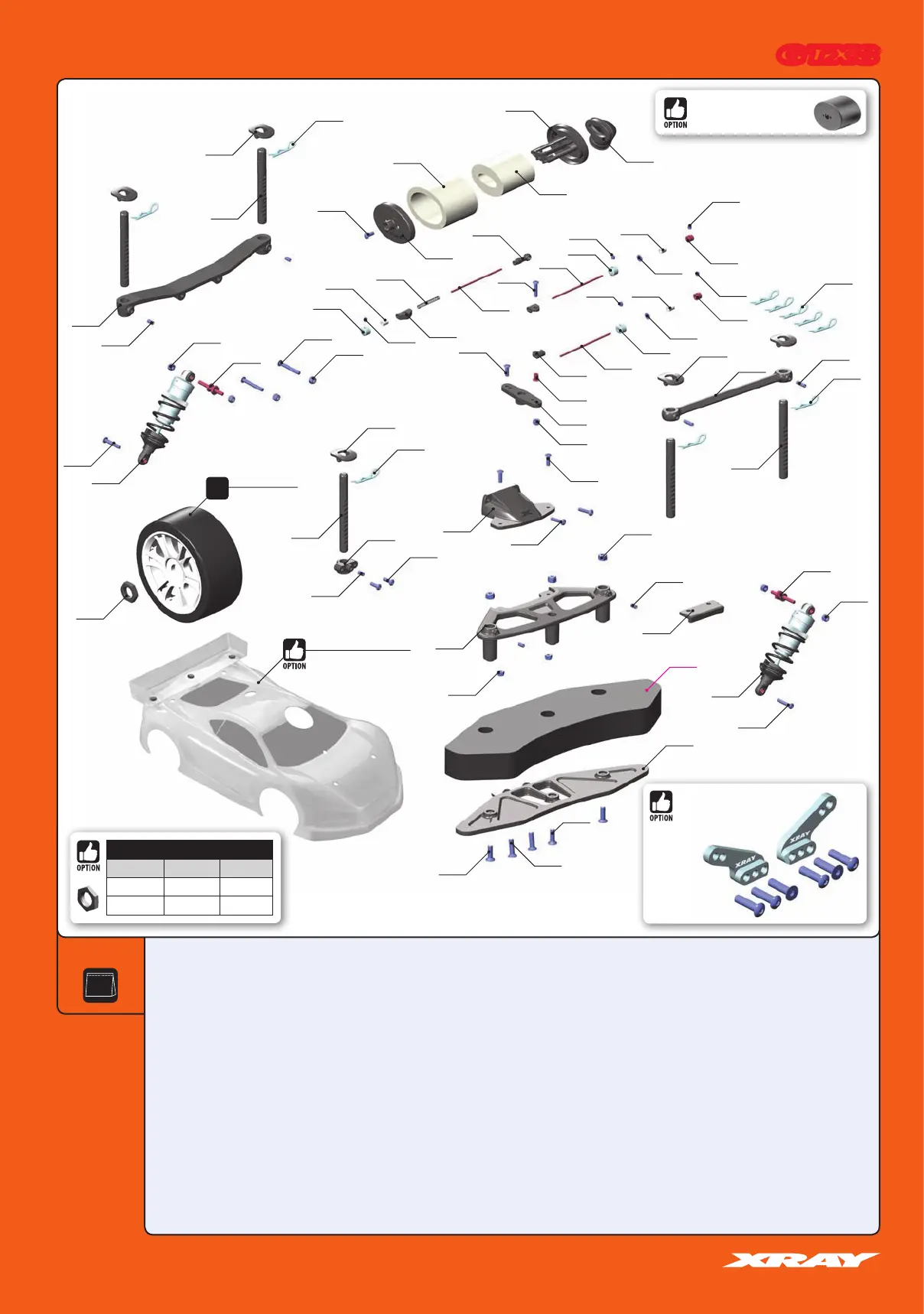

12. FINAL ASSEMBLY
#358832
AIR FILTER RAIN COVER
WHEEL NUTS
#355261 OPEN INCLUDED
#293560 COVERED OPTION
#355265 COVERED OPTION
902319
358047
960030
349400
351420
902316
349400
901303
901306
351410
960040
902310
349400
351420
351450
901306
351220
351201
903414
302291
902312
356200
356433
351420
351240
351210
901306
351420
960030
903414
351232
356510
358811
356402
356402
901303
903416
901303
356402
961022
961022
356402
356402
901303
356402
356402
901303
358950
358950
960030
356402
358841
358821
358821
356402
358950
902310
902314
356402
358841
Wheel & Tire
(NOT INCLUDED)
355261
902308
4x
#359730 XRAY GT BODY
(NOT INCLUDED)
# 352390
GT ALU SHOCK PLATE -
SWISS 7075 T6 (L+R)
