8

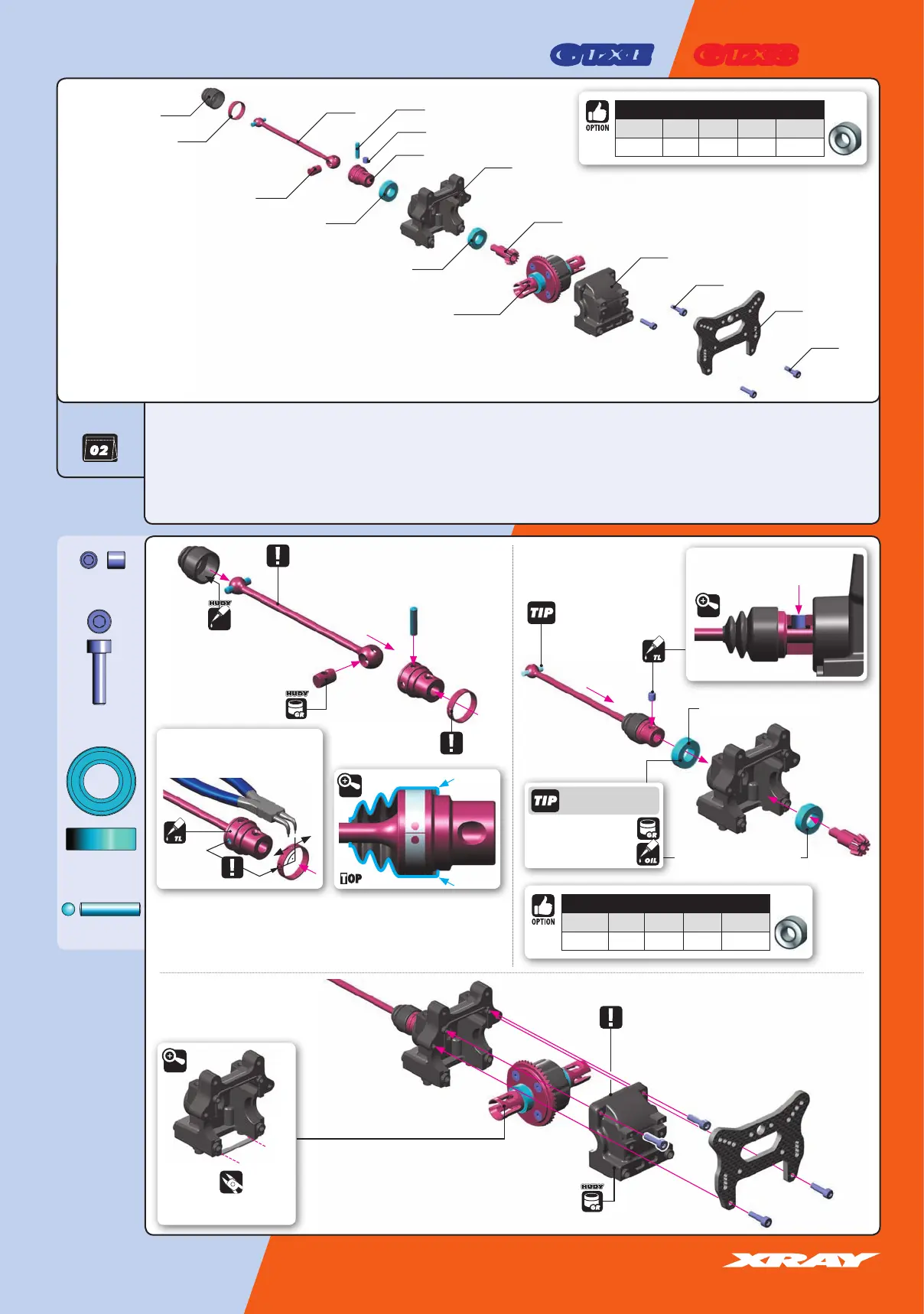

2. FRONT TRANSMISSION
930816
BB 8x16x5
980314
P 3x14
901404
SB M4x4
Graphite Grease
(HUDY #106210)
Apply oil from inside
to prevent breakage
of the rubber boot.
SHORT CVD DRIVE SHAFT
BEFORE inserting the clip on the central CVD shaft joint, apply a small
amount of threadlock on the area where the clip goes.
AFTER inserting the clip on the central CVD shaft joint, turn the clip so that
the slot is 90°from the pin. This will prevent the pin from opening the clip.
PIN
DETAIL
Cut on both front
and rear bulkhead blocks
DETAIL
➊
➊
➋
➋
➌
➌
➍
➍
STEP DETAIL
➍
STEP
DETAIL
➎
352006 DIFF BULKHEAD BLOCK SET FRONT/REAR
352041 GTX8.3 GRAPHITE FRONT SHOCK TOWER - CNC MACHINED 3.5MM
355115 BEVEL DRIVE GEAR 13T
355236 CVD DRIVE SHAFT COUPLING - HUDY SPRING STEEL™
355416 CENTRAL CVD SHAFT UNIVERSAL JOINT - HUDY SPRING STEEL™
355425 FRONT CENTRAL CVD DRIVE SHAFT - HUDY SPRING STEEL™
355471 DRIVE SHAFT LOCKING RING (2)
355472 DRIVE SHAFT BOOT (2)
901404 HEX SCREW SB M4x4 (10)
908312 HEX SCREW SOCKET HEAD CAP SCH M3x12 (10)
930816
BALL-BEARING 8x16x5 STEEL SEALED - GREASE (2)
980314 PIN 3x14 (10)
355005
DIFFERENTIAL 46T - V2 - SET
BAG
➎
➎
➎
355005
FRONT DIFF
908312
352041
908312
FRONT DIFF 300.000cSt
Graphite Grease
(HUDY #106210)
Push joint against gear to remove gap.
Tighten setscrew onto gear flat spot.
The ring can be assembled by hand,
but for easy disassembly we recommend
using snap ring pliers (HUDY #189040)
355472
355471
SHORT
355425
355236
352006
355115
352006
355416
980314
901404
930816
930816
step 1 step 2
step 3
OIL
DETAIL
Follow the TECH TIP on page 5
for drive shaft pin servicing
NOTE
ORIENTATION
GTX8GTXE
Use HUDY Ball-Bearing
Grease or Oil for servicing:
#106220 - Standard
#106221 - Extra
#106222 - Premium
#106230 - Bearing Oil
908312
SCH M3x12
XRAY BALL-BEARING
#930816 8x16x5 GREASE STEEL INCLUDED
#930817 8x16x5 OIL STEEL OPTION
XRAY BALL-BEARING
#930816 8x16x5 GREASE STEEL INCLUDED
#930817 8x16x5 OIL STEEL OPTION
Ball-bearing with STEEL covers
Ball-bearing with STEEL covers
