Xray T3 User Manual

8
302027-O

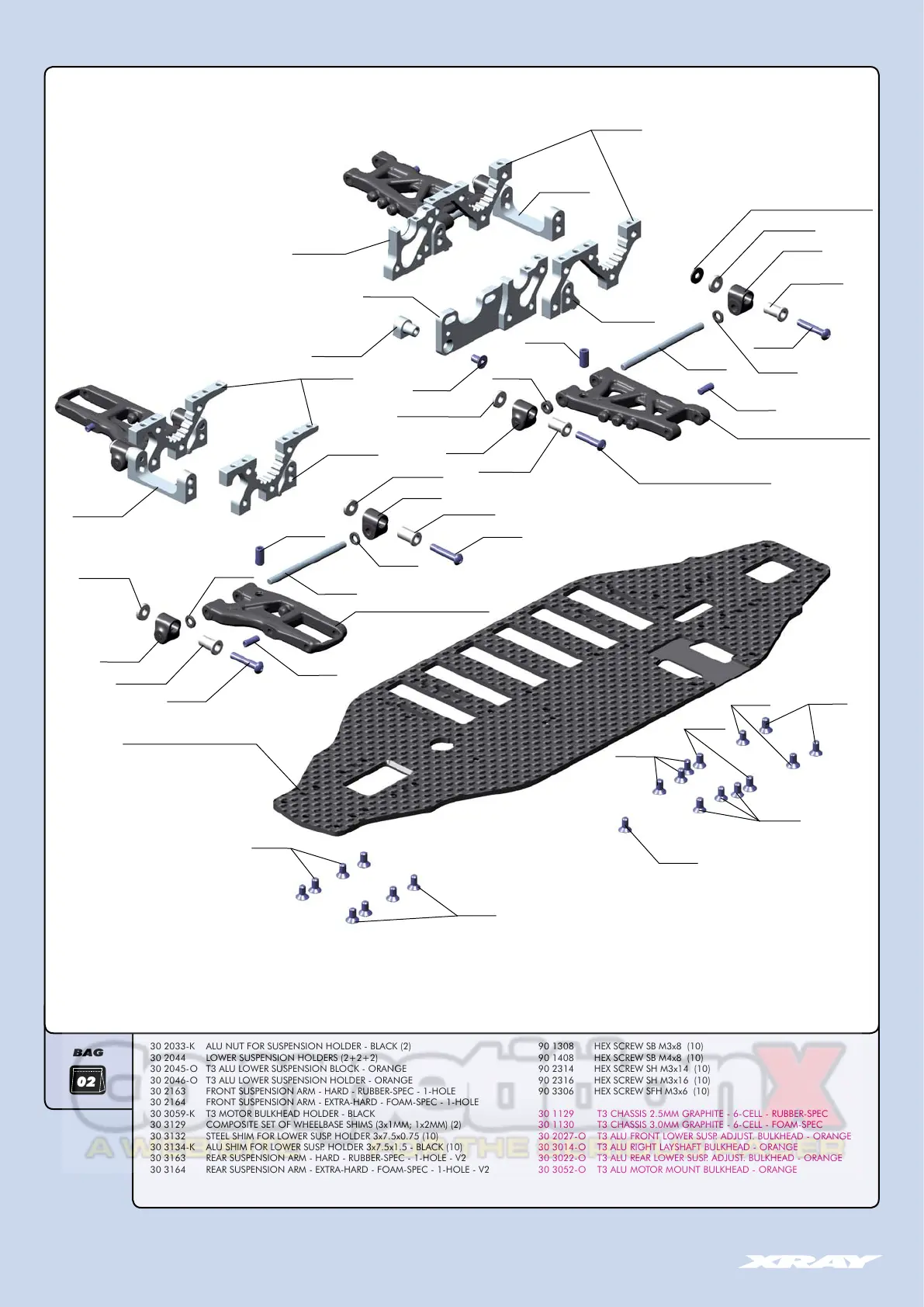

2. FRONT & REAR SUSPENSION
BAG
02
30 2033-K ALU NUT FOR SUSPENSION HOLDER - BLACK (2)
30 2044 LOWER SUSPENSION HOLDERS (2+2+2)
30 2045-O T3 ALU LOWER SUSPENSION BLOCK - ORANGE
30 2046-O T3 ALU LOWER SUSPENSION HOLDER - ORANGE
30 2163 FRONT SUSPENSION ARM - HARD - RUBBER-SPEC - 1-HOLE
30 2164 FRONT SUSPENSION ARM - EXTRA-HARD - FOAM-SPEC - 1-HOLE
30 3059-K T3 MOTOR BULKHEAD HOLDER - BLACK
30 3129 COMPOSITE SET OF WHEELBASE SHIMS (3x1MM; 1x2MM) (2)
30 3132 STEEL SHIM FOR LOWER SUSP. HOLDER 3x7.5x0.75 (10)
30 3134-K ALU SHIM FOR LOWER SUSP. HOLDER 3x7.5x1.5 - BLACK (10)
30 3163 REAR SUSPENSION ARM - HARD - RUBBER-SPEC - 1-HOLE - V2
30 3164 REAR SUSPENSION ARM - EXTRA-HARD - FOAM-SPEC - 1-HOLE - V2
30 7215 T2 FRONT SUSPENSION PIVOT PIN (2)
30 7314 T2‘008 REAR SUSPENSION PIVOT PIN (2)
90 1308 HEX SCREW SB M3x8 (10)
90 1408 HEX SCREW SB M4x8 (10)
90 2314 HEX SCREW SH M3x14 (10)
90 2316 HEX SCREW SH M3x16 (10)
90 3306 HEX SCREW SFH M3x6 (10)
30 1129 T3 CHASSIS 2.5MM GRAPHITE - 6-CELL - RUBBER-SPEC
30 1130 T3 CHASSIS 3.0MM GRAPHITE - 6-CELL - FOAM-SPEC
30 2027-O T3 ALU FRONT LOWER SUSP. ADJUST. BULKHEAD - ORANGE
30 3014-O T3 ALU RIGHT LAYSHAFT BULKHEAD - ORANGE
30 3022-O T3 ALU REAR LOWER SUSP. ADJUST. BULKHEAD - ORANGE
30 3052-O T3 ALU MOTOR MOUNT BULKHEAD - ORANGE
90 3306 HEX SCREW SFH M3x6 (10)
303129
303132 (US FOAM-SPEC)
303134-K
302044
302033-K
902316
901408
901308
307314
302046-O
303163 (EU RUBBER-SPEC)
303164 (US FOAM-SPEC)
301129 (EU RUBBER-SPEC)
301130 (US FOAM-SPEC)
303129
302033-K
902314 (EU RUBBER-SPEC)
902316 (US FOAM-SPEC)
902316
302033-K
302044
303129
901408
303134-K
302046-O
303129
307215
302163 (EU RUBBER-SPEC)
302164 (US FOAM-SPEC)
303134-K
302044
302033-K
902316
901308
903306
303014-O
303052-O
303022-O
303134-K
(US FOAM-SPEC)
302044
903306
903306
903306
903306
903306
903306
903306
903306
303059-K
302045-O
302045-O
