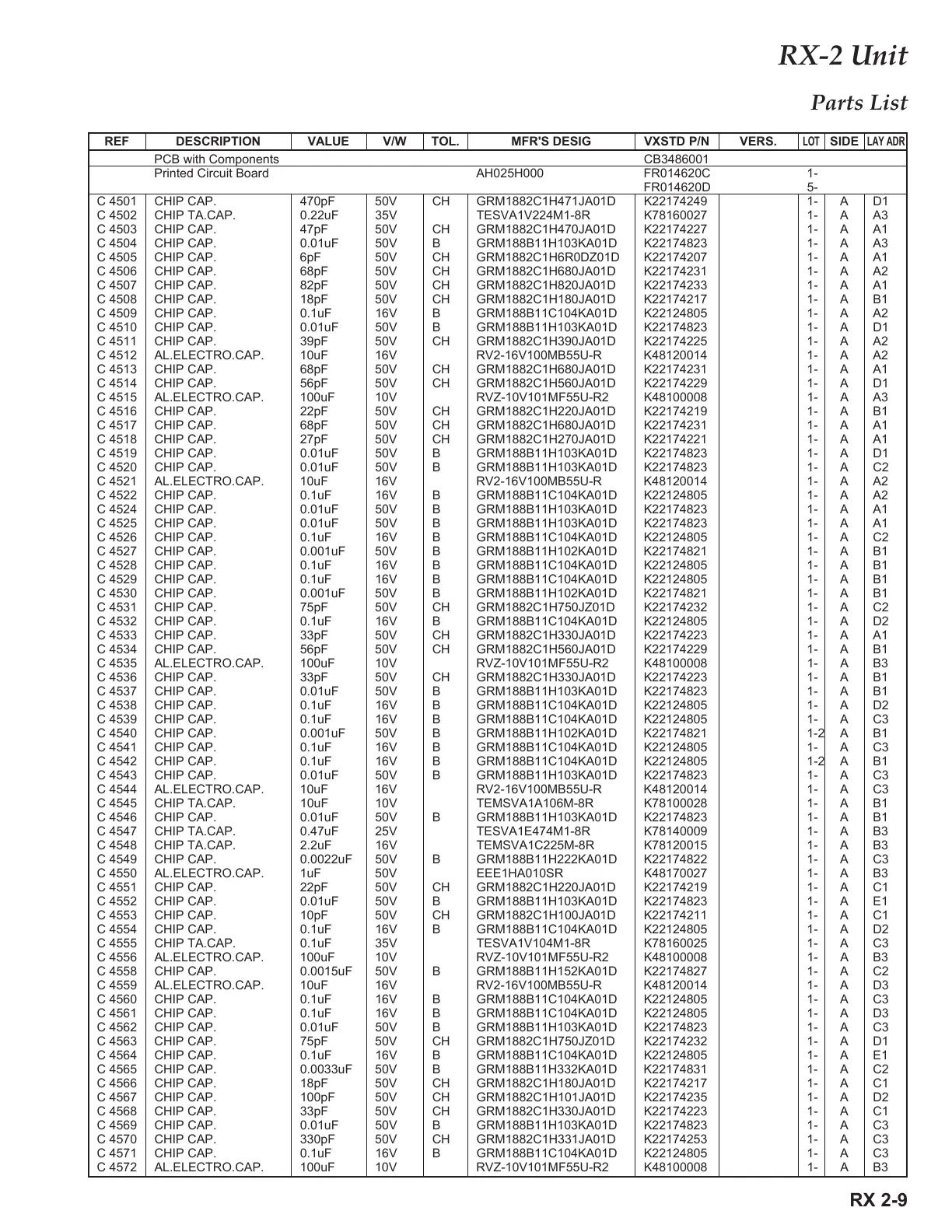

RX 2-9

Parts List

REF DESCRIPTION VALUE V/W TOL. MFR'S DESIG VXSTD P/N VERS.

LOT

SIDE

LAY ADR

RX-2 Unit

PCB with Components CB3486001

Printed Circuit Board AH025H000 FR014620C 1-

FR014620D 5-

C 4501 CHIP CAP. 470pF 50V CH GRM1882C1H471JA01D K22174249 1- A D1

C 4502 CHIP TA.CAP. 0.22uF 35V TESVA1V224M1-8R K78160027 1- A A3

C 4503 CHIP CAP. 47pF 50V CH GRM1882C1H470JA01D K22174227 1- A A1

C 4504 CHIP CAP. 0.01uF 50V B GRM188B11H103KA01D K22174823 1- A A3

C 4505 CHIP CAP. 6pF 50V CH GRM1882C1H6R0DZ01D K22174207 1- A A1

C 4506 CHIP CAP. 68pF 50V CH GRM1882C1H680JA01D K22174231 1- A A2

C 4507 CHIP CAP. 82pF 50V CH GRM1882C1H820JA01D K22174233 1- A A1

C 4508 CHIP CAP. 18pF 50V CH GRM1882C1H180JA01D K22174217 1- A B1

C 4509 CHIP CAP. 0.1uF 16V B GRM188B11C104KA01D K22124805 1- A A2

C 4510 CHIP CAP. 0.01uF 50V B GRM188B11H103KA01D K22174823 1- A D1

C 4511 CHIP CAP. 39pF 50V CH GRM1882C1H390JA01D K22174225 1- A A2

C 4512 AL.ELECTRO.CAP. 10uF 16V RV2-16V100MB55U-R K48120014 1- A A2

C 4513 CHIP CAP. 68pF 50V CH GRM1882C1H680JA01D K22174231 1- A A1

C 4514 CHIP CAP. 56pF 50V CH GRM1882C1H560JA01D K22174229 1- A D1

C 4515 AL.ELECTRO.CAP. 100uF 10V RVZ-10V101MF55U-R2 K48100008 1- A A3

C 4516 CHIP CAP. 22pF 50V CH GRM1882C1H220JA01D K22174219 1- A B1

C 4517 CHIP CAP. 68pF 50V CH GRM1882C1H680JA01D K22174231 1- A A1

C 4518 CHIP CAP. 27pF 50V CH GRM1882C1H270JA01D K22174221 1- A A1

C 4519 CHIP CAP. 0.01uF 50V B GRM188B11H103KA01D K22174823 1- A D1

C 4520 CHIP CAP. 0.01uF 50V B GRM188B11H103KA01D K22174823 1- A C2

C 4521 AL.ELECTRO.CAP. 10uF 16V RV2-16V100MB55U-R K48120014 1- A A2

C 4522 CHIP CAP. 0.1uF 16V B GRM188B11C104KA01D K22124805 1- A A2

C 4524 CHIP CAP. 0.01uF 50V B GRM188B11H103KA01D K22174823 1- A A1

C 4525 CHIP CAP. 0.01uF 50V B GRM188B11H103KA01D K22174823 1- A A1

C 4526 CHIP CAP. 0.1uF 16V B GRM188B11C104KA01D K22124805 1- A C2

C 4527 CHIP CAP. 0.001uF 50V B GRM188B11H102KA01D K22174821 1- A B1

C 4528 CHIP CAP. 0.1uF 16V B GRM188B11C104KA01D K22124805 1- A B1

C 4529 CHIP CAP. 0.1uF 16V B GRM188B11C104KA01D K22124805 1- A B1

C 4530 CHIP CAP. 0.001uF 50V B GRM188B11H102KA01D K22174821 1- A B1

C 4531 CHIP CAP. 75pF 50V CH GRM1882C1H750JZ01D K22174232 1- A C2

C 4532 CHIP CAP. 0.1uF 16V B GRM188B11C104KA01D K22124805 1- A D2

C 4533 CHIP CAP. 33pF 50V CH GRM1882C1H330JA01D K22174223 1- A A1

C 4534 CHIP CAP. 56pF 50V CH GRM1882C1H560JA01D K22174229 1- A B1

C 4535 AL.ELECTRO.CAP. 100uF 10V RVZ-10V101MF55U-R2 K48100008 1- A B3

C 4536 CHIP CAP. 33pF 50V CH GRM1882C1H330JA01D K22174223 1- A B1

C 4537 CHIP CAP. 0.01uF 50V B GRM188B11H103KA01D K22174823 1- A B1

C 4538 CHIP CAP. 0.1uF 16V B GRM188B11C104KA01D K22124805 1- A D2

C 4539 CHIP CAP. 0.1uF 16V B GRM188B11C104KA01D K22124805 1- A C3

C 4540 CHIP CAP. 0.001uF 50V B GRM188B11H102KA01D K22174821 1-2 A B1

C 4541 CHIP CAP. 0.1uF 16V B GRM188B11C104KA01D K22124805 1- A C3

C 4542 CHIP CAP. 0.1uF 16V B GRM188B11C104KA01D K22124805 1-2 A B1

C 4543 CHIP CAP. 0.01uF 50V B GRM188B11H103KA01D K22174823 1- A C3

C 4544 AL.ELECTRO.CAP. 10uF 16V RV2-16V100MB55U-R K48120014 1- A C3

C 4545 CHIP TA.CAP. 10uF 10V TEMSVA1A106M-8R K78100028 1- A B1

C 4546 CHIP CAP. 0.01uF 50V B GRM188B11H103KA01D K22174823 1- A B1

C 4547 CHIP TA.CAP. 0.47uF 25V TESVA1E474M1-8R K78140009 1- A B3

C 4548 CHIP TA.CAP. 2.2uF 16V TEMSVA1C225M-8R K78120015 1- A B3

C 4549 CHIP CAP. 0.0022uF 50V B GRM188B11H222KA01D K22174822 1- A C3

C 4550 AL.ELECTRO.CAP. 1uF 50V EEE1HA010SR K48170027 1- A B3

C 4551 CHIP CAP. 22pF 50V CH GRM1882C1H220JA01D K22174219 1- A C1

C 4552 CHIP CAP. 0.01uF 50V B GRM188B11H103KA01D K22174823 1- A E1

C 4553 CHIP CAP. 10pF 50V CH GRM1882C1H100JA01D K22174211 1- A C1

C 4554 CHIP CAP. 0.1uF 16V B GRM188B11C104KA01D K22124805 1- A D2

C 4555 CHIP TA.CAP. 0.1uF 35V TESVA1V104M1-8R K78160025 1- A C3

C 4556 AL.ELECTRO.CAP. 100uF 10V RVZ-10V101MF55U-R2 K48100008 1- A B3

C 4558 CHIP CAP. 0.0015uF 50V B GRM188B11H152KA01D K22174827 1- A C2

C 4559 AL.ELECTRO.CAP. 10uF 16V RV2-16V100MB55U-R K48120014 1- A D3

C 4560 CHIP CAP. 0.1uF 16V B GRM188B11C104KA01D K22124805 1- A C3

C 4561 CHIP CAP. 0.1uF 16V B GRM188B11C104KA01D K22124805 1- A D3

C 4562 CHIP CAP. 0.01uF 50V B GRM188B11H103KA01D K22174823 1- A C3

C 4563 CHIP CAP. 75pF 50V CH GRM1882C1H750JZ01D K22174232 1- A D1

C 4564 CHIP CAP. 0.1uF 16V B GRM188B11C104KA01D K22124805 1- A E1

C 4565 CHIP CAP. 0.0033uF 50V B GRM188B11H332KA01D K22174831 1- A C2

C 4566 CHIP CAP. 18pF 50V CH GRM1882C1H180JA01D K22174217 1- A C1

C 4567 CHIP CAP. 100pF 50V CH GRM1882C1H101JA01D K22174235 1- A D2

C 4568 CHIP CAP. 33pF 50V CH GRM1882C1H330JA01D K22174223 1- A C1

C 4569 CHIP CAP. 0.01uF 50V B GRM188B11H103KA01D K22174823 1- A C3

C 4570 CHIP CAP. 330pF 50V CH GRM1882C1H331JA01D K22174253 1- A C3

C 4571 CHIP CAP. 0.1uF 16V B GRM188B11C104KA01D K22124805 1- A C3

C 4572 AL.ELECTRO.CAP. 100uF 10V RVZ-10V101MF55U-R2 K48100008 1- A B3
