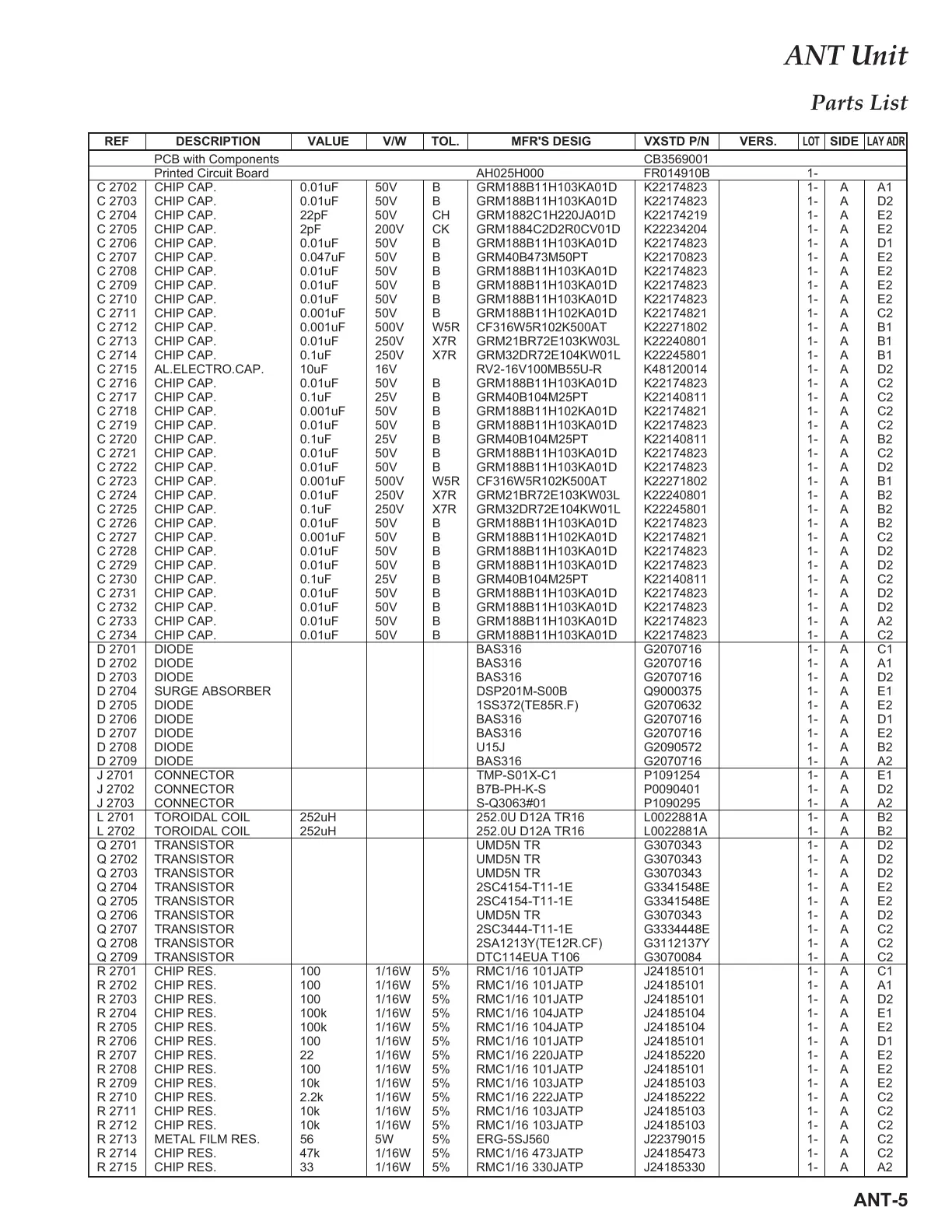

Parts List
REF DESCRIPTION VALUE V/W TOL. MFR'S DESIG VXSTD P/N VERS. LOT SIDE LAY ADR
ANT Unit
ANT-5
PCB with Components CB3569001
Printed Circuit Board AH025H000 FR014910B 1-
C 2702 CHIP CAP. 0.01uF 50V B GRM188B11H103KA01D K22174823 1- A A1
C 2703 CHIP CAP. 0.01uF 50V B GRM188B11H103KA01D K22174823 1- A D2
C 2704 CHIP CAP. 22pF 50V CH GRM1882C1H220JA01D K22174219 1- A E2
C 2705 CHIP CAP. 2pF 200V CK GRM1884C2D2R0CV01D K22234204 1- A E2
C 2706 CHIP CAP. 0.01uF 50V B GRM188B11H103KA01D K22174823 1- A D1
C 2707 CHIP CAP. 0.047uF 50V B GRM40B473M50PT K22170823 1- A E2
C 2708 CHIP CAP. 0.01uF 50V B GRM188B11H103KA01D K22174823 1- A E2
C 2709 CHIP CAP. 0.01uF 50V B GRM188B11H103KA01D K22174823 1- A E2
C 2710 CHIP CAP. 0.01uF 50V B GRM188B11H103KA01D K22174823 1- A E2
C 2711 CHIP CAP. 0.001uF 50V B GRM188B11H102KA01D K22174821 1- A C2
C 2712 CHIP CAP. 0.001uF 500V W5R CF316W5R102K500AT K22271802 1- A B1
C 2713 CHIP CAP. 0.01uF 250V X7R GRM21BR72E103KW03L K22240801 1- A B1
C 2714 CHIP CAP. 0.1uF 250V X7R GRM32DR72E104KW01L K22245801 1- A B1
C 2715 AL.ELECTRO.CAP. 10uF 16V RV2-16V100MB55U-R K48120014 1- A D2
C 2716 CHIP CAP. 0.01uF 50V B GRM188B11H103KA01D K22174823 1- A C2
C 2717 CHIP CAP. 0.1uF 25V B GRM40B104M25PT K22140811 1- A C2
C 2718 CHIP CAP. 0.001uF 50V B GRM188B11H102KA01D K22174821 1- A C2
C 2719 CHIP CAP. 0.01uF 50V B GRM188B11H103KA01D K22174823 1- A C2
C 2720 CHIP CAP. 0.1uF 25V B GRM40B104M25PT K22140811 1- A B2
C 2721 CHIP CAP. 0.01uF 50V B GRM188B11H103KA01D K22174823 1- A C2
C 2722 CHIP CAP. 0.01uF 50V B GRM188B11H103KA01D K22174823 1- A D2
C 2723 CHIP CAP. 0.001uF 500V W5R CF316W5R102K500AT K22271802 1- A B1
C 2724 CHIP CAP. 0.01uF 250V X7R GRM21BR72E103KW03L K22240801 1- A B2
C 2725 CHIP CAP. 0.1uF 250V X7R GRM32DR72E104KW01L K22245801 1- A B2
C 2726 CHIP CAP. 0.01uF 50V B GRM188B11H103KA01D K22174823 1- A B2
C 2727 CHIP CAP. 0.001uF 50V B GRM188B11H102KA01D K22174821 1- A C2
C 2728 CHIP CAP. 0.01uF 50V B GRM188B11H103KA01D K22174823 1- A D2
C 2729 CHIP CAP. 0.01uF 50V B GRM188B11H103KA01D K22174823 1- A D2
C 2730 CHIP CAP. 0.1uF 25V B GRM40B104M25PT K22140811 1- A C2
C 2731 CHIP CAP. 0.01uF 50V B GRM188B11H103KA01D K22174823 1- A D2
C 2732 CHIP CAP. 0.01uF 50V B GRM188B11H103KA01D K22174823 1- A D2
C 2733 CHIP CAP. 0.01uF 50V B GRM188B11H103KA01D K22174823 1- A A2
C 2734 CHIP CAP. 0.01uF 50V B GRM188B11H103KA01D K22174823 1- A C2
D 2701 DIODE BAS316 G2070716 1- A C1
D 2702 DIODE BAS316 G2070716 1- A A1
D 2703 DIODE BAS316 G2070716 1- A D2
D 2704 SURGE ABSORBER DSP201M-S00B Q9000375 1- A E1
D 2705 DIODE 1SS372(TE85R.F) G2070632 1- A E2
D 2706 DIODE BAS316 G2070716 1- A D1
D 2707 DIODE BAS316 G2070716 1- A E2
D 2708 DIODE U15J G2090572 1- A B2
D 2709 DIODE BAS316 G2070716 1- A A2
J 2701 CONNECTOR TMP-S01X-C1 P1091254 1- A E1
J 2702 CONNECTOR B7B-PH-K-S P0090401 1- A D2
J 2703 CONNECTOR S-Q3063#01 P1090295 1- A A2
L 2701 TOROIDAL COIL 252uH 252.0U D12A TR16 L0022881A 1- A B2
L 2702 TOROIDAL COIL 252uH 252.0U D12A TR16 L0022881A 1- A B2
Q 2701 TRANSISTOR UMD5N TR G3070343 1- A D2
Q 2702 TRANSISTOR UMD5N TR G3070343 1- A D2
Q 2703 TRANSISTOR UMD5N TR G3070343 1- A D2
Q 2704 TRANSISTOR 2SC4154-T11-1E G3341548E 1- A E2
Q 2705 TRANSISTOR 2SC4154-T11-1E G3341548E 1- A E2
Q 2706 TRANSISTOR UMD5N TR G3070343 1- A D2
Q 2707 TRANSISTOR 2SC3444-T11-1E G3334448E 1- A C2
Q 2708 TRANSISTOR 2SA1213Y(TE12R.CF) G3112137Y 1- A C2
Q 2709 TRANSISTOR DTC114EUA T106 G3070084 1- A C2
R 2701 CHIP RES. 100 1/16W 5% RMC1/16 101JATP J24185101 1- A C1
R 2702 CHIP RES. 100 1/16W 5% RMC1/16 101JATP J24185101 1- A A1
R 2703 CHIP RES. 100 1/16W 5% RMC1/16 101JATP J24185101 1- A D2
R 2704 CHIP RES. 100k 1/16W 5% RMC1/16 104JATP J24185104 1- A E1
R 2705 CHIP RES. 100k 1/16W 5% RMC1/16 104JATP J24185104 1- A E2
R 2706 CHIP RES. 100 1/16W 5% RMC1/16 101JATP J24185101 1- A D1
R 2707 CHIP RES. 22 1/16W 5% RMC1/16 220JATP J24185220 1- A E2
R 2708 CHIP RES. 100 1/16W 5% RMC1/16 101JATP J24185101 1- A E2
R 2709 CHIP RES. 10k 1/16W 5% RMC1/16 103JATP J24185103 1- A E2
R 2710 CHIP RES. 2.2k 1/16W 5% RMC1/16 222JATP J24185222 1- A C2
R 2711 CHIP RES. 10k 1/16W 5% RMC1/16 103JATP J24185103 1- A C2
R 2712 CHIP RES. 10k 1/16W 5% RMC1/16 103JATP J24185103 1- A C2
R 2713 METAL FILM RES. 56 5W 5% ERG-5SJ560 J22379015 1- A C2
R 2714 CHIP RES. 47k 1/16W 5% RMC1/16 473JATP J24185473 1- A C2
R 2715 CHIP RES. 33 1/16W 5% RMC1/16 330JATP J24185330 1- A A2
