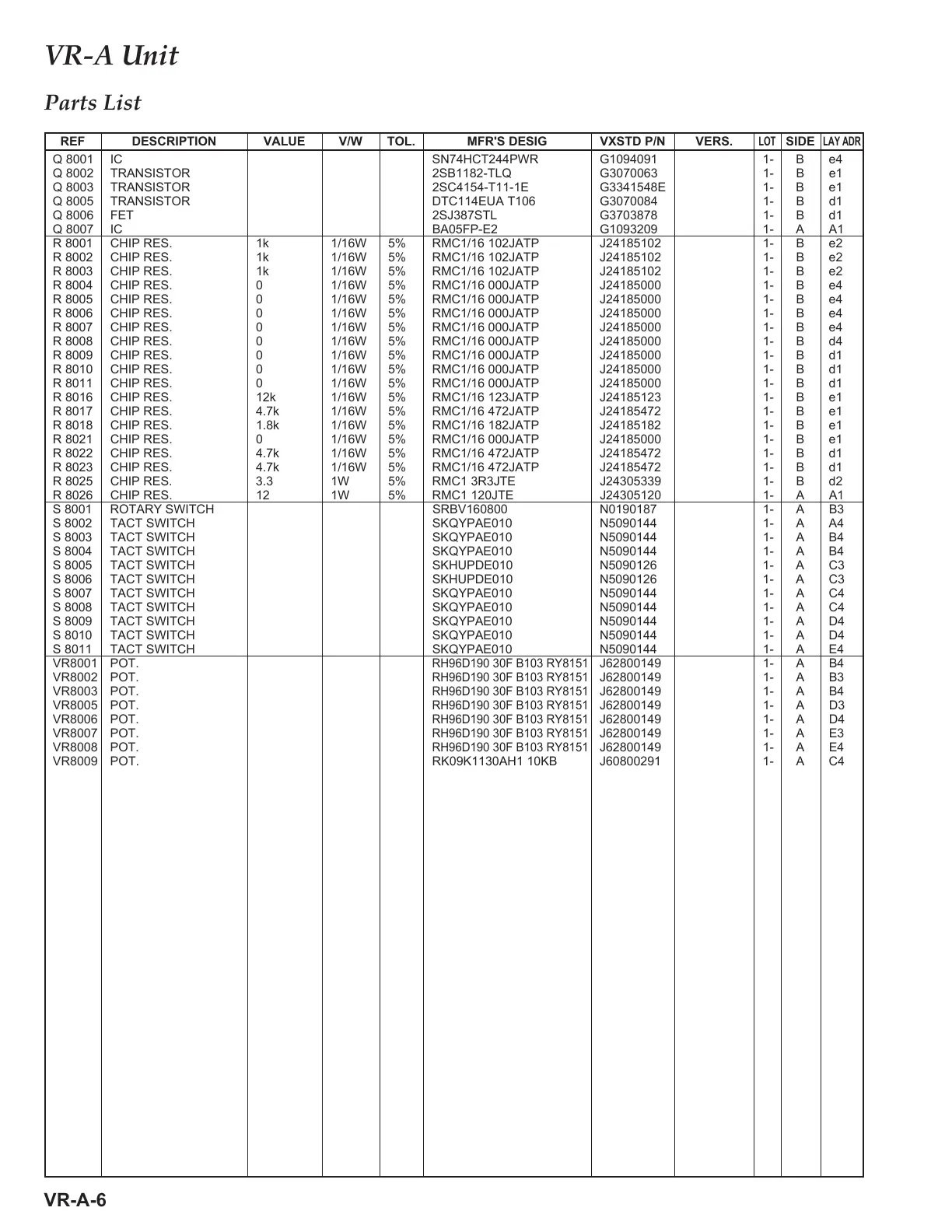

Yaesu FT-2000/D User Manual

VR-A-6
Parts List
REF DESCRIPTION VALUE V/W TOL. MFR'S DESIG VXSTD P/N VERS. LOT SIDE LAY ADR
VR-A Unit
Q 8001 IC SN74HCT244PWR G1094091 1- B e4
Q 8002 TRANSISTOR 2SB1182-TLQ G3070063 1- B e1
Q 8003 TRANSISTOR 2SC4154-T11-1E G3341548E 1- B e1
Q 8005 TRANSISTOR DTC114EUA T106 G3070084 1- B d1
Q 8006 FET 2SJ387STL G3703878 1- B d1
Q 8007 IC BA05FP-E2 G1093209 1- A A1
R 8001 CHIP RES. 1k 1/16W 5% RMC1/16 102JATP J24185102 1- B e2
R 8002 CHIP RES. 1k 1/16W 5% RMC1/16 102JATP J24185102 1- B e2
R 8003 CHIP RES. 1k 1/16W 5% RMC1/16 102JATP J24185102 1- B e2
R 8004 CHIP RES. 0 1/16W 5% RMC1/16 000JATP J24185000 1- B e4
R 8005 CHIP RES. 0 1/16W 5% RMC1/16 000JATP J24185000 1- B e4
R 8006 CHIP RES. 0 1/16W 5% RMC1/16 000JATP J24185000 1- B e4
R 8007 CHIP RES. 0 1/16W 5% RMC1/16 000JATP J24185000 1- B e4
R 8008 CHIP RES. 0 1/16W 5% RMC1/16 000JATP J24185000 1- B d4
R 8009 CHIP RES. 0 1/16W 5% RMC1/16 000JATP J24185000 1- B d1
R 8010 CHIP RES. 0 1/16W 5% RMC1/16 000JATP J24185000 1- B d1
R 8011 CHIP RES. 0 1/16W 5% RMC1/16 000JATP J24185000 1- B d1
R 8016 CHIP RES. 12k 1/16W 5% RMC1/16 123JATP J24185123 1- B e1
R 8017 CHIP RES. 4.7k 1/16W 5% RMC1/16 472JATP J24185472 1- B e1
R 8018 CHIP RES. 1.8k 1/16W 5% RMC1/16 182JATP J24185182 1- B e1
R 8021 CHIP RES. 0 1/16W 5% RMC1/16 000JATP J24185000 1- B e1
R 8022 CHIP RES. 4.7k 1/16W 5% RMC1/16 472JATP J24185472 1- B d1
R 8023 CHIP RES. 4.7k 1/16W 5% RMC1/16 472JATP J24185472 1- B d1
R 8025 CHIP RES. 3.3 1W 5% RMC1 3R3JTE J24305339 1- B d2
R 8026 CHIP RES. 12 1W 5% RMC1 120JTE J24305120 1- A A1
S 8001 ROTARY SWITCH SRBV160800 N0190187 1- A B3
S 8002 TACT SWITCH SKQYPAE010 N5090144 1- A A4
S 8003 TACT SWITCH SKQYPAE010 N5090144 1- A B4
S 8004 TACT SWITCH SKQYPAE010 N5090144 1- A B4
S 8005 TACT SWITCH SKHUPDE010 N5090126 1- A C3
S 8006 TACT SWITCH SKHUPDE010 N5090126 1- A C3
S 8007 TACT SWITCH SKQYPAE010 N5090144 1- A C4
S 8008 TACT SWITCH SKQYPAE010 N5090144 1- A C4
S 8009 TACT SWITCH SKQYPAE010 N5090144 1- A D4
S 8010 TACT SWITCH SKQYPAE010 N5090144 1- A D4
S 8011 TACT SWITCH SKQYPAE010 N5090144 1- A E4
VR8001 POT. RH96D190 30F B103 RY8151 J62800149 1- A B4
VR8002 POT. RH96D190 30F B103 RY8151 J62800149 1- A B3
VR8003 POT. RH96D190 30F B103 RY8151 J62800149 1- A B4
VR8005 POT. RH96D190 30F B103 RY8151 J62800149 1- A D3
VR8006 POT. RH96D190 30F B103 RY8151 J62800149 1- A D4
VR8007 POT. RH96D190 30F B103 RY8151 J62800149 1- A E3
VR8008 POT. RH96D190 30F B103 RY8151 J62800149 1- A E4
VR8009 POT. RK09K1130AH1 10KB J60800291 1- A C4
