Page 134 FT-2000D OPERATING MANUAL
I
NSTALLATION
OF
THE
O
PTIONAL
F
ILTER (YF-122C
OR
YF-122CN)
1. Turn the FT-2000D’s
[
POWER
]
switch “off,” then
turn the FP-2000’s
[
POWER
]
switch “off.”
2. Unplug the AC cable from the AC jack on the FP-
2000 rear panel.
3. Disconnect the all of the cables from the transceiver.

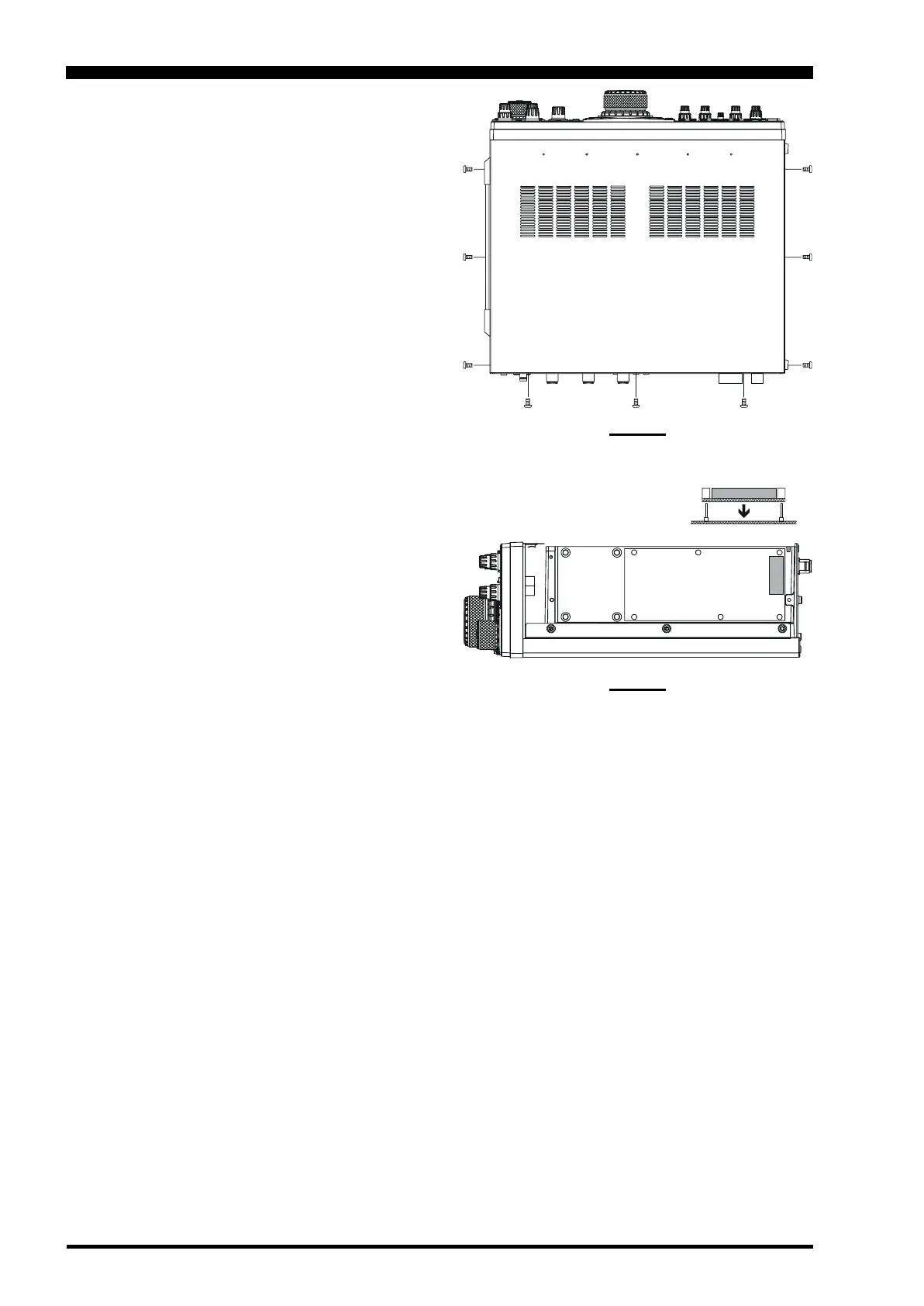

4. Referring to Figure 1, remove the three screws from
each side of the transceiver, and three screws from the
top edge of the rear panel. Slide the top cover toward
to the rear about 1/2 inch (1 cm), then remove the top
cover.
5. Refer to Figure 2 for the mounting location for the
optional filter. Position the filter so that its connectors
are aligned with the mounting pins on the board, and
push it into place.
6. Replace the top cover and its nine screws.
7. Filter installation is now complete. Now you must en-
able the newly-installed filter, using the Menu.
8. Connect the two DC cables to the FT-2000D rear panel,
and then connect the AC cable to the AC jack on the
FP-2000 rear panel.
9. Turn the FP-2000’s
[
POWER
]
switch “on,” then turn
the FT-2000D’s
[
POWER
]
switch “on.”
10. Press the
[
MENU
]
button momentarily to engage the
Menu mode.
11. Rotate the Main Tuning Dial knob to select the Menu
item “037 GEnE SUB FIL.”
12. Rotate the
[
SUB VFO-B
]
knob to choose the selec-
tion appropriate for the filter you have just installed
(“300” for YF-122CN, “500” for YF-122C).
13. Press and hold in the
[
MENU
]
button for two seconds
to save the new setting and exit to normal operation.
FIGURE 1
FIGURE 2
RX-2 UNIT
Optional Filter
RX-2 UNIT
