Parametric Gain

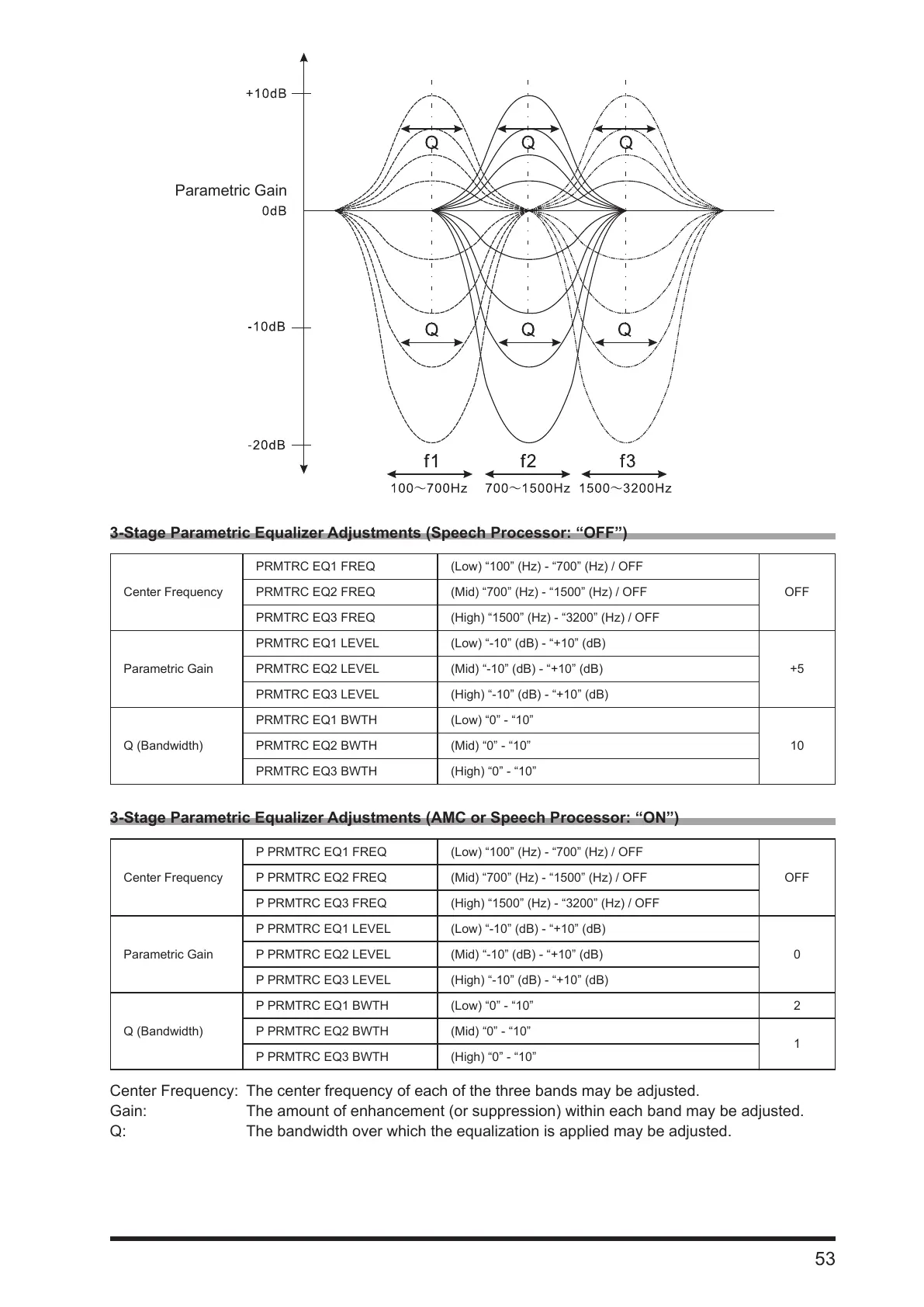

3-Stage Parametric Equalizer Adjustments (Speech Processor: “OFF”)
Center Frequency
PRMTRC EQ1 FREQ (Low) “100” (Hz) - “700” (Hz) / OFF
OFFPRMTRC EQ2 FREQ (Mid) “700” (Hz) - “1500” (Hz) / OFF
PRMTRC EQ3 FREQ (High) “1500” (Hz) - “3200” (Hz) / OFF
Parametric Gain
PRMTRC EQ1 LEVEL (Low) “-10” (dB) - “+10” (dB)
+5PRMTRC EQ2 LEVEL (Mid) “-10” (dB) - “+10” (dB)
PRMTRC EQ3 LEVEL (High) “-10” (dB) - “+10” (dB)
Q (Bandwidth)
PRMTRC EQ1 BWTH (Low) “0” - “10”
10PRMTRC EQ2 BWTH (Mid) “0” - “10”
PRMTRC EQ3 BWTH (High) “0” - “10”
3-Stage Parametric Equalizer Adjustments (AMC or Speech Processor: “ON”)
Center Frequency
P PRMTRC EQ1 FREQ (Low) “100” (Hz) - “700” (Hz) / OFF
OFFP PRMTRC EQ2 FREQ (Mid) “700” (Hz) - “1500” (Hz) / OFF
P PRMTRC EQ3 FREQ (High) “1500” (Hz) - “3200” (Hz) / OFF
Parametric Gain
P PRMTRC EQ1 LEVEL (Low) “-10” (dB) - “+10” (dB)
0P PRMTRC EQ2 LEVEL (Mid) “-10” (dB) - “+10” (dB)
P PRMTRC EQ3 LEVEL (High) “-10” (dB) - “+10” (dB)
Q (Bandwidth)
P PRMTRC EQ1 BWTH (Low) “0” - “10” 2
P PRMTRC EQ2 BWTH (Mid) “0” - “10”
1
P PRMTRC EQ3 BWTH (High) “0” - “10”
Center Frequency: The center frequency of each of the three bands may be adjusted.
Gain: The amount of enhancement (or suppression) within each band may be adjusted.
Q: The bandwidth over which the equalization is applied may be adjusted.

Yaesu FTDX101D Specifications

General

Type	HF/50MHz Transceiver
IF DSP	Yes
Power Supply	13.8 V DC ±15%
Frequency Coverage	1.8 MHz to 54 MHz
Antenna Tuner	Automatic Antenna Tuner
Operating Modes	SSB, CW, AM, FM, RTTY, PSK
Antenna Connectors	2 x SO-239
Current Consumption	TX: 23A (at 100W), RX: 3.0A (signal present)
