Fork Tip Alignment
Length of Forks 3% Dimension
915 mm (36 in) 27 mm (1.10 in)
1067 mm (42 in) 32 mm (1.26 in)
1220 mm (48 in) 37 mm (1.46 in)
1372 mm (54 in) 41 mm (1.61 in)
1524 mm (60 in) 46 mm (1.81 in)
1830 mm (72 in) 55 mm (2.17 in)
1. TIP ALIGNMENT (MUST BE WITHIN 3% OF FORK LENGTH)
2.
CRACKS
3. LATCH DAMAGE
4. HEEL OF FORK (MUST BE 90% OF DIMENSION “X”)
5. CARRIAGE
6. LOAD BACKREST EXTENSION
7. MAXIMUM ANGLE 93°
8. FORK REMOVAL NOTCH

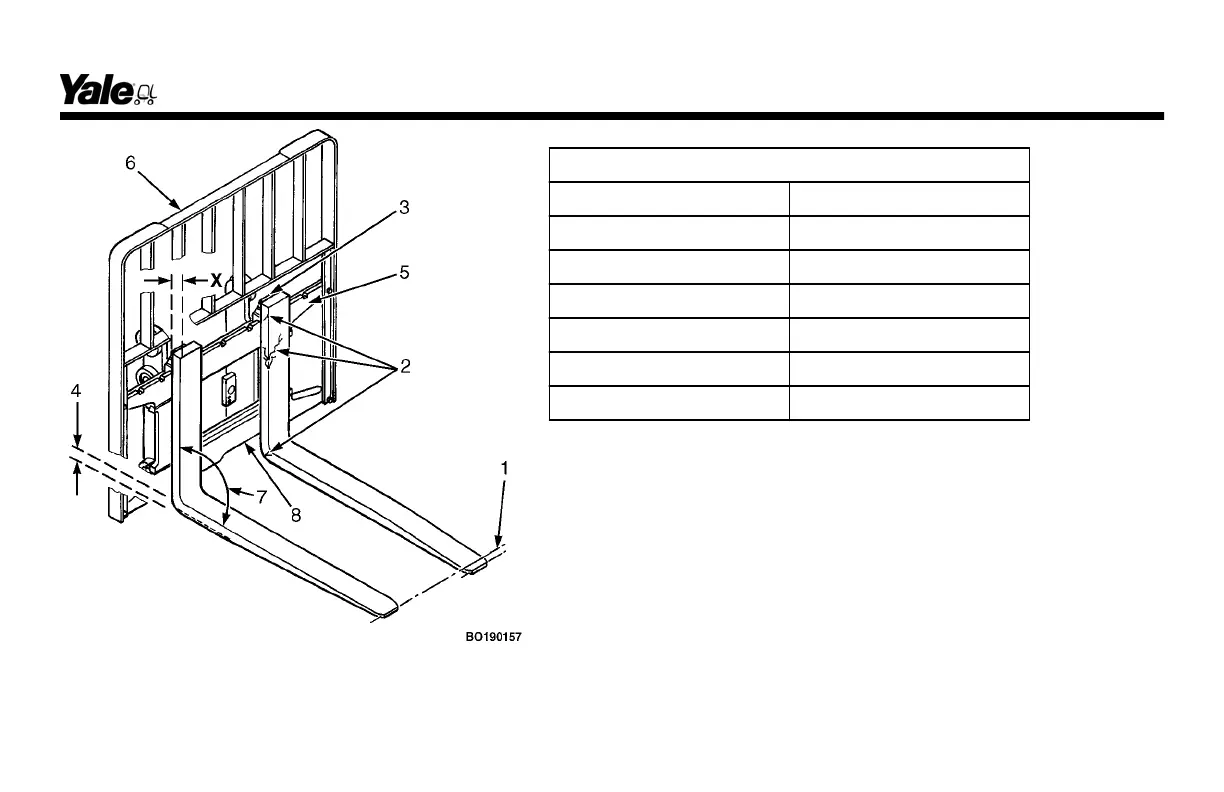

Figure 39. Forks Check
