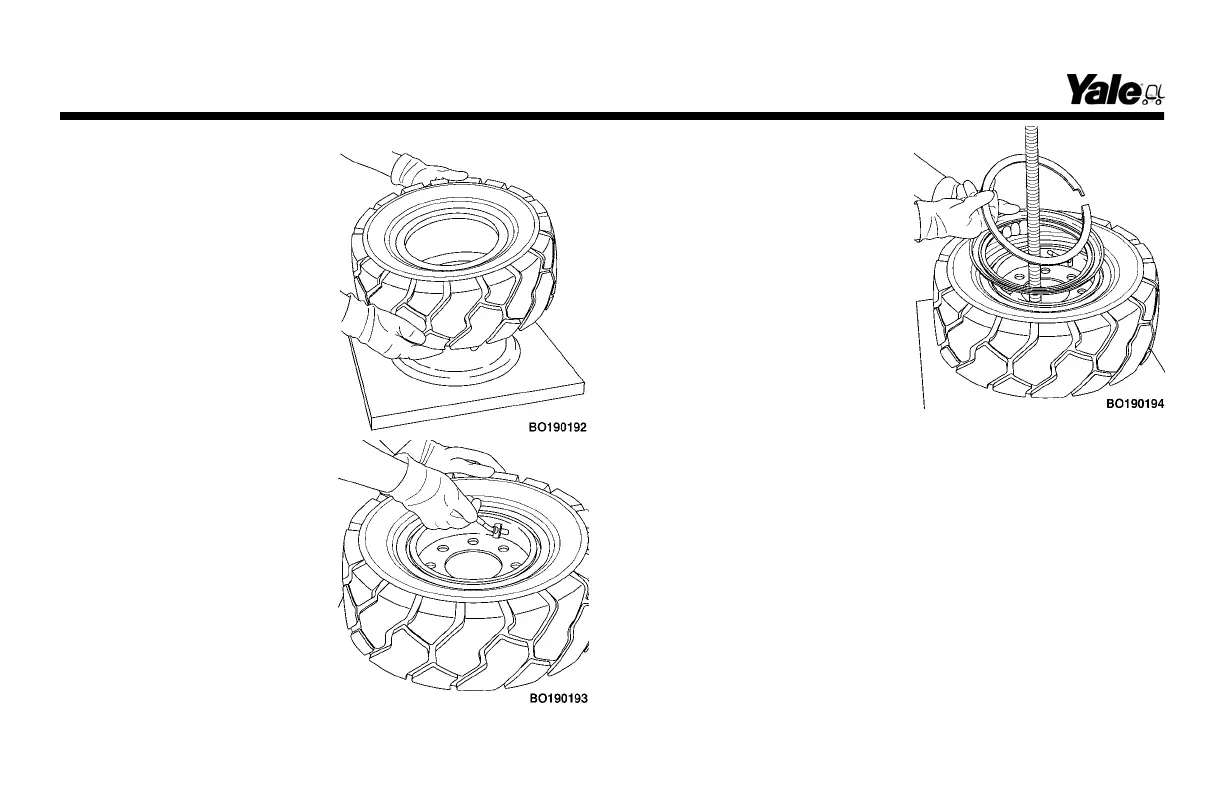

band. Slide the tire and TBS onto the wheel.
Line up the valve hole in the
TBS with the valve slot in the
wheel. Lubricate and insert
the valve into the valve hole.
Make sure it is fully inserted.
5. Place the wheel and tire
assembly on a flat surface.
Turn the valve a 1/4 turn to
lock the collar under the
edges of the rim valve slot.
6. Raise the tire and position
the base and threaded stem
of the press through the hole
in the center of the wheel.
Insert in wheel assembly, the
following parts:
• Advance band (four-piece wheel only)
• Loose flange
• Locking ring
7. Position the advance band. Ensure that it does not go in
too far and damage the valve. Position the arms of the
press onto the loose flange.
Maintenance
188
