– 8 –

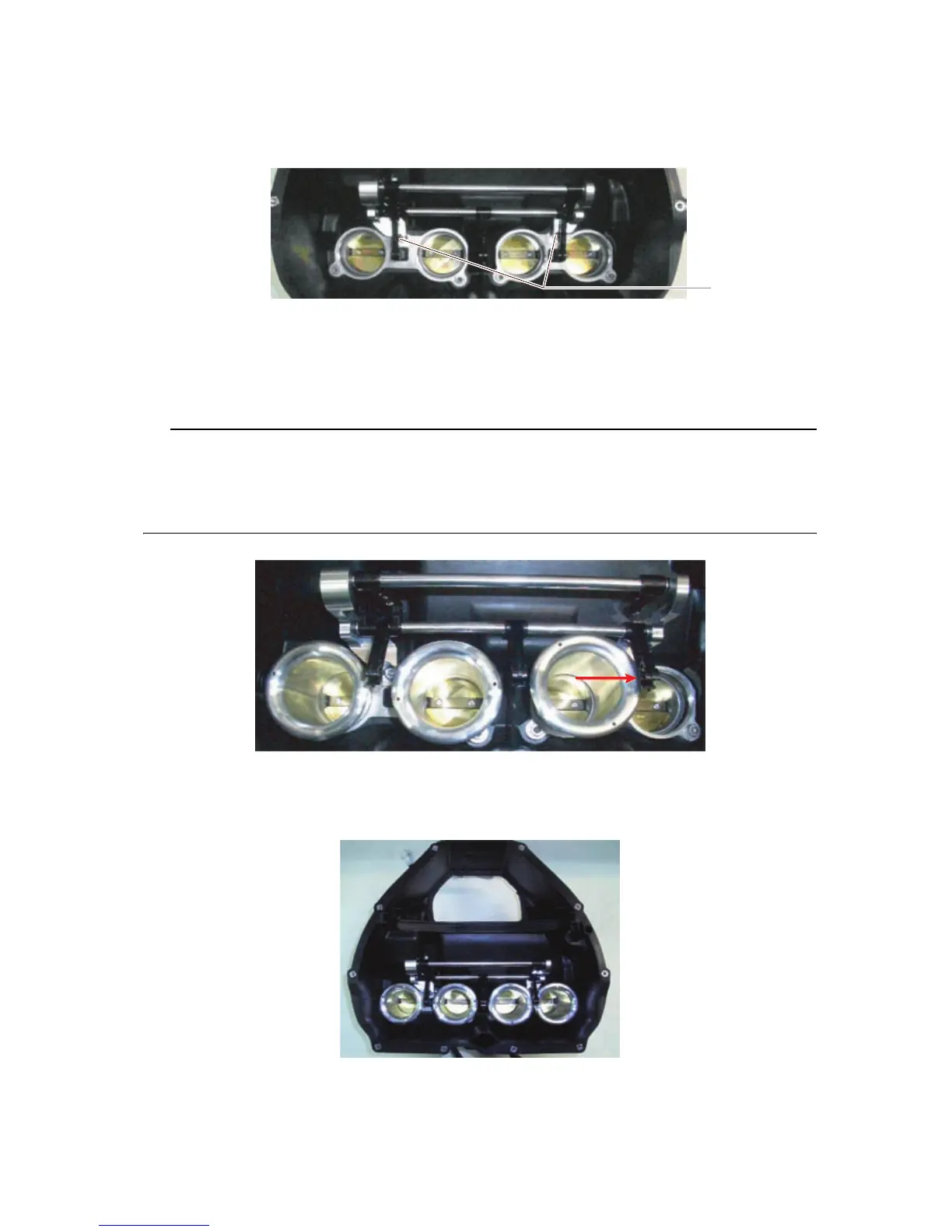

3. Installing the Lever Assembly
Secure the lever assembly onto the plates.
Using the supplied screws (30mm long), secure the assembly at the locations as shown.
4. Installing the Primary Funnels
Secure the primary funnel by screwing it into the plate.
TIP
• For installation of the plate and funnel, apply a thin coat of grease to their screw
threads.
• For installation of the right-hand funnel, arrange the resin portion of the lever to be
located above the funnel.
5. Installing the Secondary Funnel
Install the STD secondary funnel onto the lever assembly.
Holes for
installation
