PERIODIC MAINTENANCE AND MINOR REPAIR
6-20
6
EW000105
WARNING
@
After adjusting the pedal height, ad-
just brake pedal free play.
@
Free play
The brake pedal free play should be
adjusted to 20 ~ 30 mm at the brake
pedal end. Turn the adjusting nut on
the brake rod in direction
a
to increase
free play or in direction
b
to decrease
free play.
EAU00713
Brake light switch adjustment
The rear brake light switch is activated
by the brake pedal and is properly ad-
justed when the brake light comes on
just before braking takes effect. To ad-
just the rear brake light switch, hold the
switch body so it does not rotate while
turning the adjusting nut. Turn the ad-
justing nut in direction
a
to make the
brake light come on earlier.
Turn the adjusting nut in direction
b
to
make the brake light come on later.

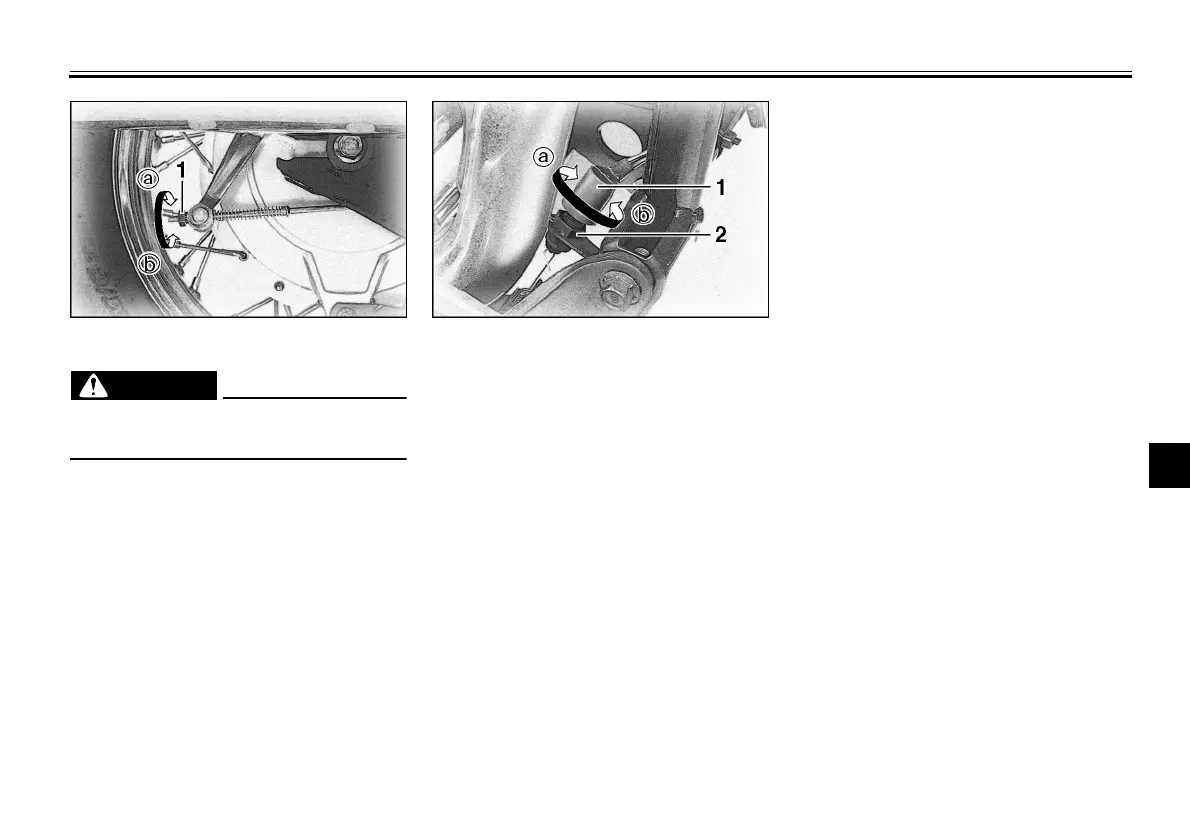

1. Adjusting nut 1. Brake light switch
2. Adjusting nut
E_4xs_Periodic.fm Page 20 Tuesday, November 30, 1999 2:36 PM
