CARBURETOR

Extent of removal: 1 Carburetor removal

Extent of removal Order Part name Q’ty Remarks

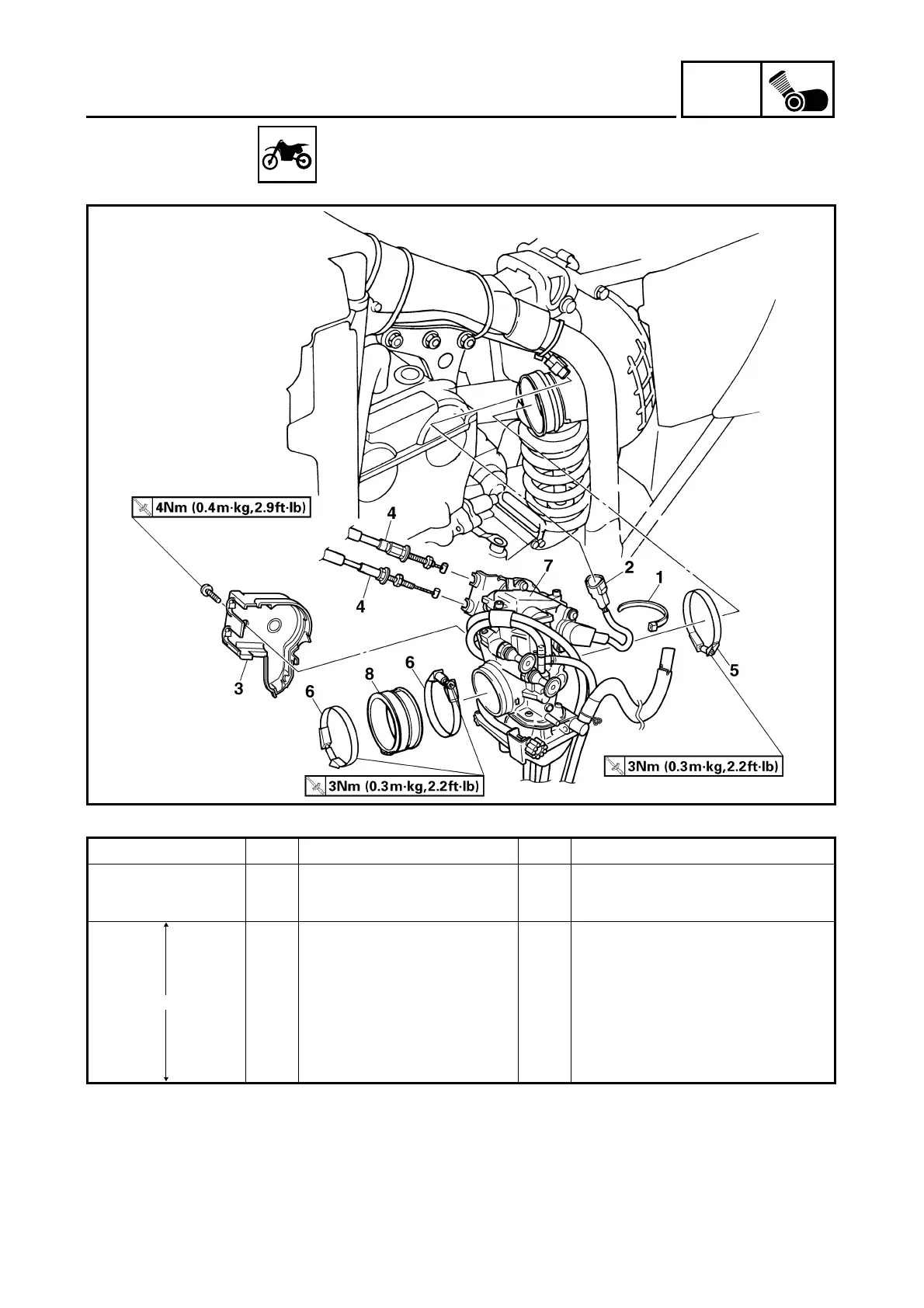

CARBURETOR REMOVAL

Preparation for removal Fuel tank Refer to “SEAT, FUEL TANK AND SIDE

COVERS” section.

1 Band 1

2 TPS coupler 1

3 Throttle cable cover 1

4 Throttle cable 2

5 Clamp (air cleaner joint) 1 Loosen the screw (air cleaner joint).

6 Clamp (carburetor joint) 2 Loosen the screws (carburetor joint).

7 Carburetor 1

8 Carburetor joint 1
