4 - 62

ENG

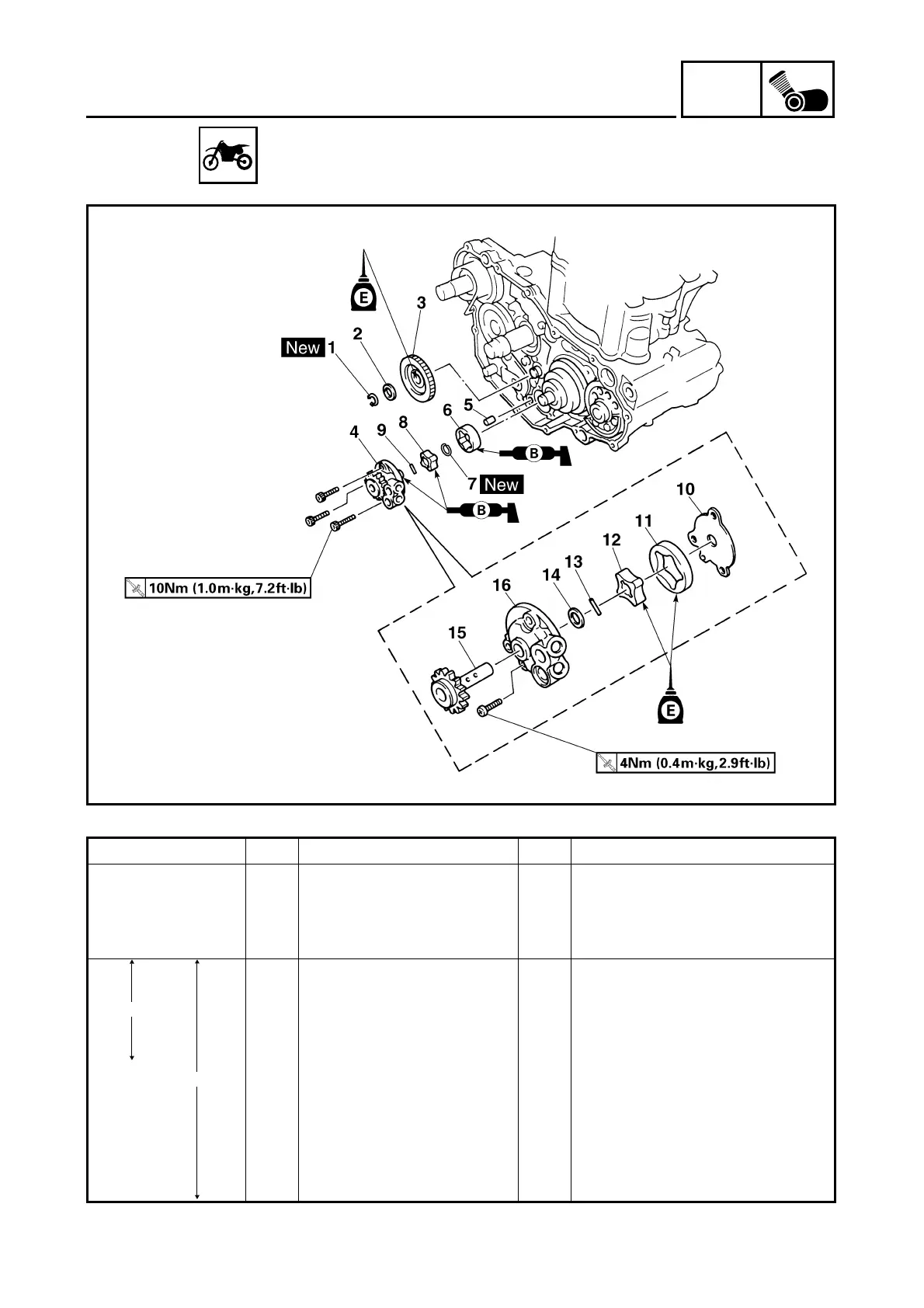

OIL PUMP

Extent of removal:

Oil pump removal

Oil pump disassembly

Extent of removal Order Part name Q’ty Remarks

OIL PUMP REMOVAL AND DIS-

ASSEMBLY

Preparation for removal Clutch housing Refer to “CLUTCH” section.

Crankcase cover (right) Refer to “OIL FILTER, WATER PUMP AND

CRANKCASE COVER (RIGHT)” section.

1 Circlip 1

2 Plate washer 1

3 Oil pump drive gear 1

4 Oil pump assembly 1

5 Dowel pin 1

6 Outer rotor 2 1

7 Circlip 1

8 Inner rotor 2 1

9 Pin 1

10 Oil pump cover 1

11 Outer rotor 1 1

Inner rotor 1
