CHAS

FRONT FORK

EC558000

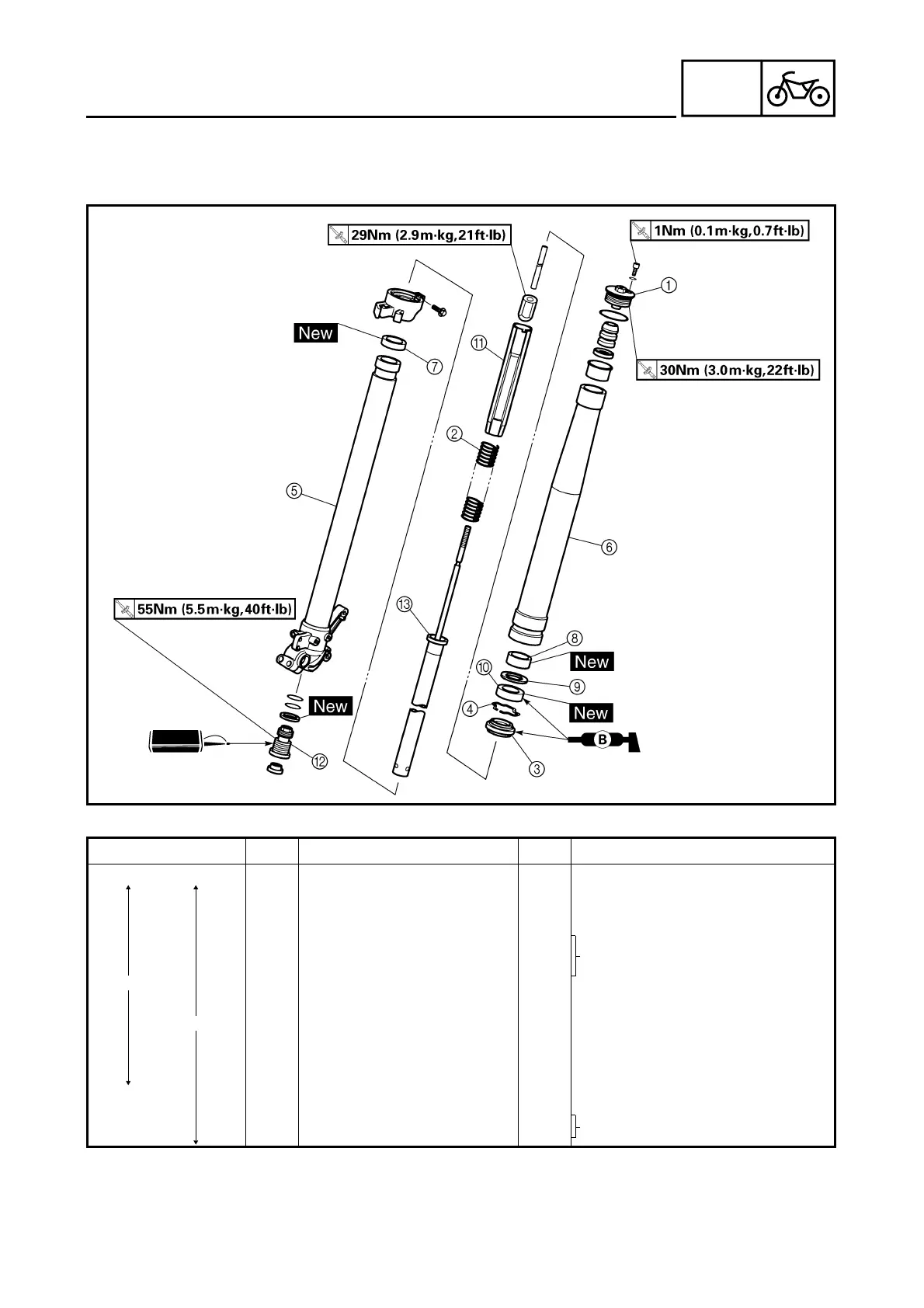

FRONT FORK DISASSEMBLY

Extent of removal: 1 Oil seal removal 2 Damper rod removal

Extent of removal Order Part name Q’ty Remarks

FRONT FORK DISASSEMBLY

1 Cap bolt 1 Refer to “REMOVAL POINTS”.

2 Fork spring 1 Drain the fork oil.

3 Dust seal 1

Refer to “REMOVAL POINTS”.4 Stopper ring 1

5 Inner tube 1

6 Outer tube 1

7 Piston metal 1

8 Slide metal 1

9 Plain washer 1

0 Oil seal 1

A Spring guide 1

B Base valve 1 Use special tool.

C Damper rod 1 Refer to “REMOVAL POINTS”.
