6 - 10
–+
ELEC
TPS (THROTTLE POSITION SENSOR) SYSTEM

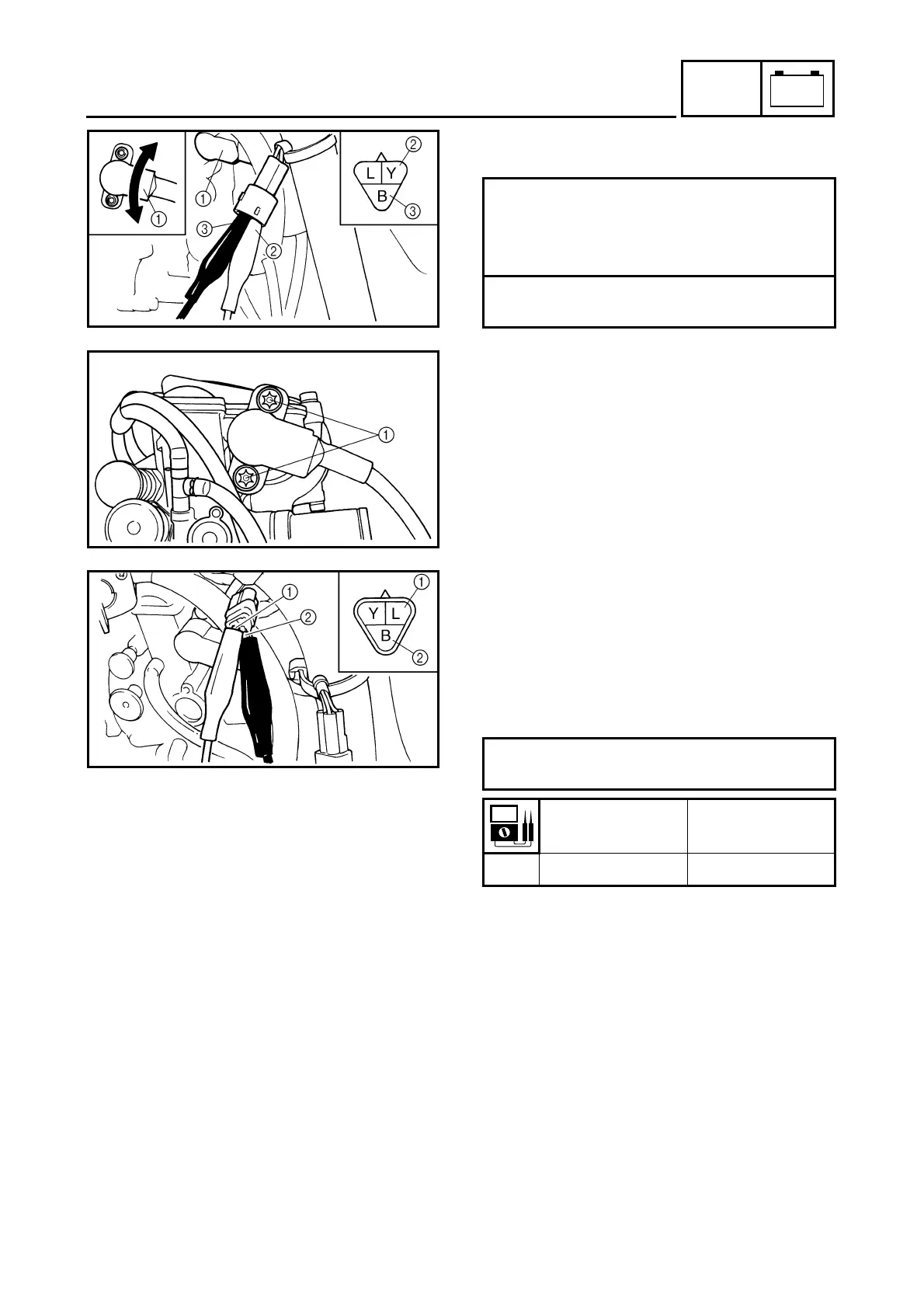

6. Adjust:
●
TPS coil resistance at idle speed
Adjustment steps:
Adjust the angle of the TPS
1
to obtain
the resistance calculated (example: 650 ~
750
Ω
)
Tester (+) lead
→
Yellow lead
2
Tester (–) lead
→
Black lead
3
7. Tighten:
●
Screw (TPS)
1
8. Install:
●
TPS coupler
EC694000
TPS INPUT VOLTAGE INSPECTION
1. Disconnect the TPS coupler.
2. Start the engine.
3. Inspect:
●
TPS input voltage
Out of specification
→
Replace the CDI
unit.
Tester (+) lead
→
Blue lead
1
Tester (–) lead
→
Black lead
2
TPS input
voltage
Tester selector
position
4 ~ 6 V DCV-20
