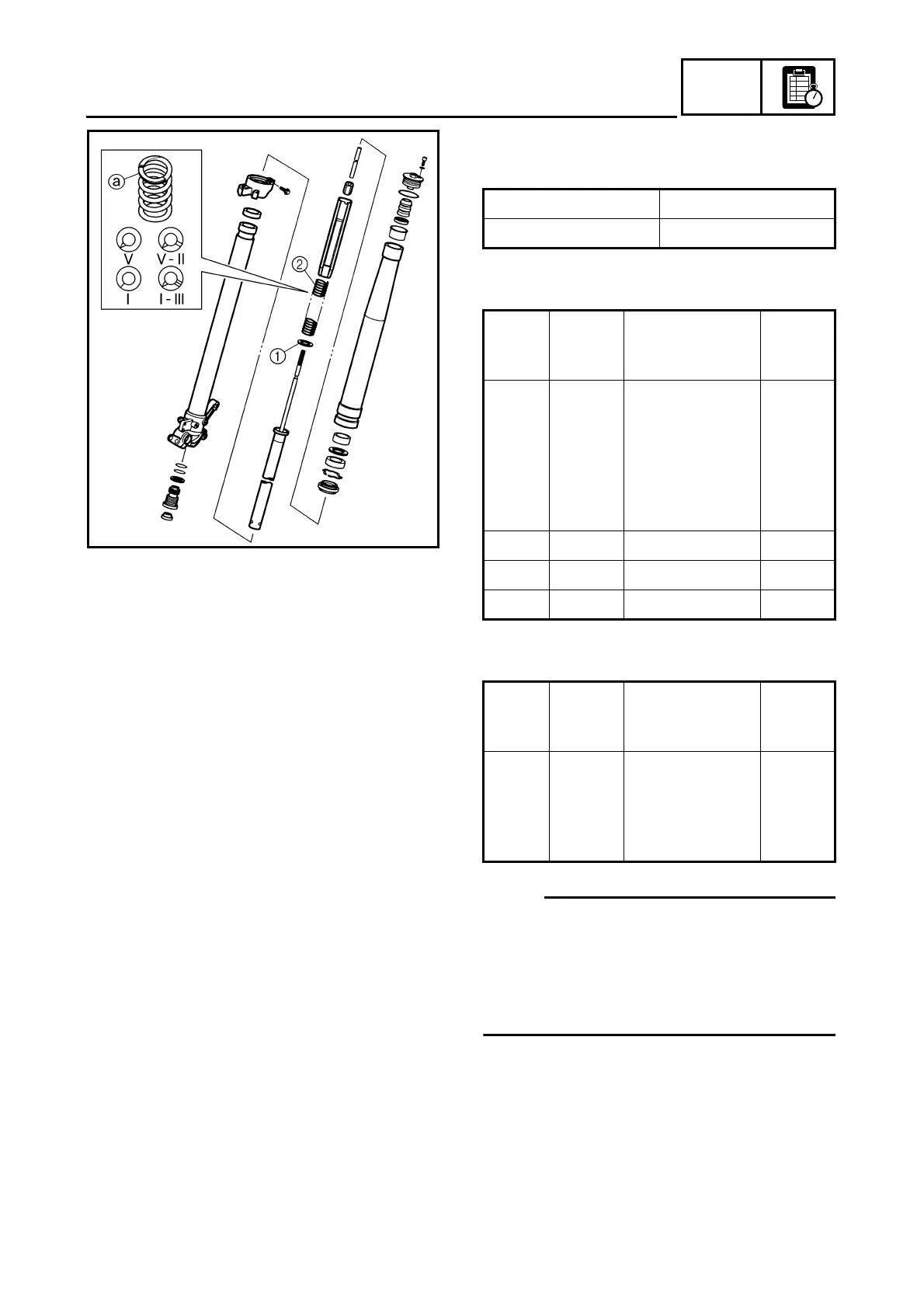

Front fork setting parts
●
Adjustment washer
1
●
Front fork spring
2
[Equal pitch spring]
* For EUROPE
[Unequal pitch spring]
OTE:
●
The unequal pitch spring is softer in initial
characteristic than the equal pitch spring and
is difficult to bottom out under full compres-
sion.
●
The I.D. mark (slits)
a
is proved on the end
of the spring.
TYPE (thickness) PART NUMBER
T = 2.3 mm (0.09 in) 4SS-23364-L0
TYPE
SPRING
RATE
SPRING
PART NUMBER
I.D.
MARK
(slits)
SOFT
0.380
0.390
0.400
0.410
0.420
0.430
0.440
4SS-23141-10
4SS-23141-20
4SS-23141-30
4SS-23141-40
4SS-23141-50
4SS-23141-60
4SS-23141-70
I-I
I-II
I-III
I
II
III
IIII
*STD 0.450 5BE-23141-L0 –
STD 0.460 5GR-23141-L0 –
STIFF 0.470 5GR-23141-00 II-II
TYPE
SPRING
RATE
(approx.)
SPRING
PART NUMBER
I.D.
MARK
(slits)
SOFT
STIFF
0.400
0.410
0.420
0.430
0.440
5ET-23141-20
5ET-23141-00
5ET-23141-30
5ET-23141-10
5ET-23141-40
V
V-I
V-II
V-III
V-IIII
SETTING
