INSTRUMENT AND CONTROL FUNCTIONS
4-6
4
EAU12092
Self-diagnosis device
This model is equipped with a self-diag-
nosis device for various electrical cir-
cuits.
If a problem is detected in any of those
circuits, the engine trouble warning light
will come on or flash. If this occurs,
have a Yamaha dealer check the vehi-
cle.
NOTICE
ECA11170
To prevent engine damage, be sure
to consult a Yamaha dealer as soon
as possible if this occurs.
EAU12348

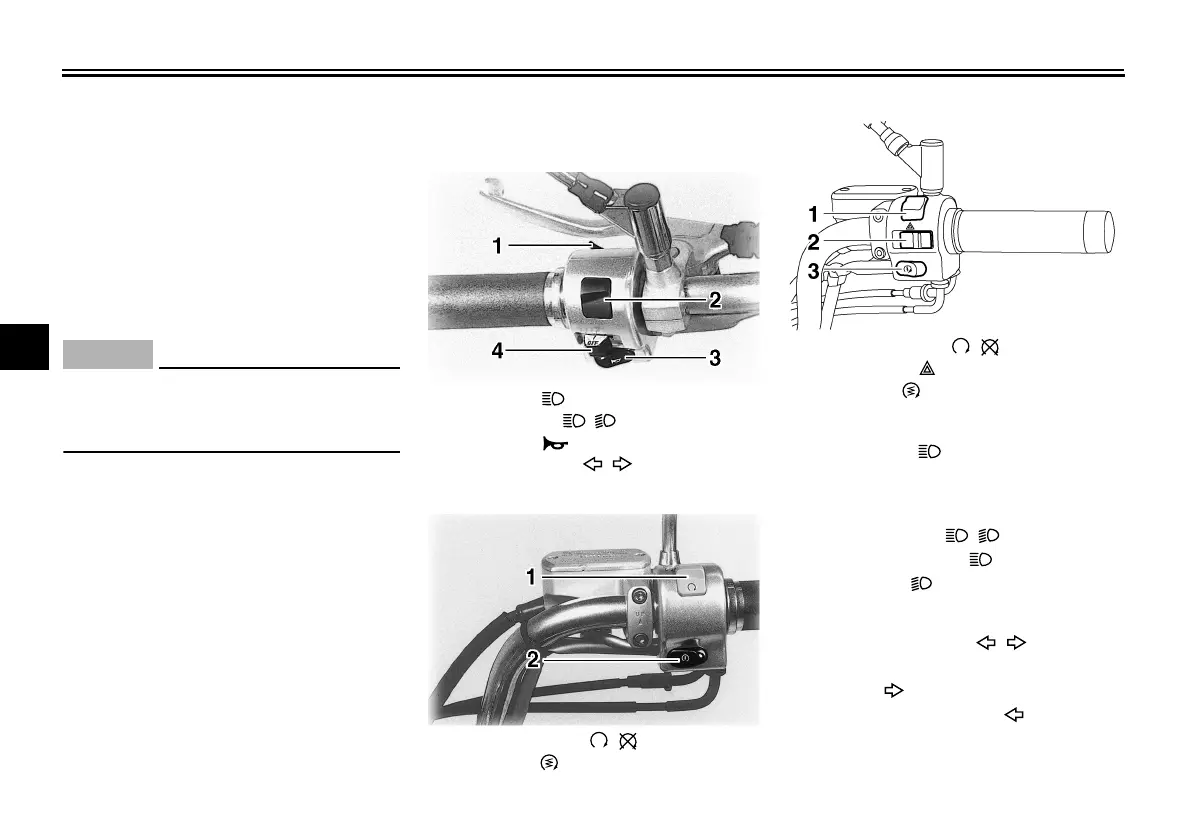

Handlebar switches
Left
Right (XVS650Z)
Right (XVS650AZ)
EAU12350
Pass switch “”
Press this switch to flash the headlight.
EAU12400
Dimmer switch “ / ”
Set this switch to “” for the high
beam and to “” for the low beam.
EAU12460
Turn signal switch “ / ”
To signal a right-hand turn, push this
switch to “”. To signal a left-hand
turn, push this switch to “”. When re-
leased, the switch returns to the center
1. Pass switch “”
2. Dimmer switch “ / ”
3. Horn switch “”
4. Turn signal switch “ / ”
1. Engine stop switch “ / ”
2. Start switch “”
1. Engine stop switch “ / ”
2. Hazard switch “”
3. Start switch “”
