PERIODIC MAINTENANCE AND ADJUSTMENT
7-34
7
2. Lift the wheel up between the fork
legs.
TIP
Make sure that there is enough space
between the brake pads before insert-
ing the brake disc and that the slot in
the speedometer gear unit fits over the
retainer on the fork leg.
3. Insert the wheel axle.
4. Lower the front wheel so that it is
on the ground, and then put the
sidestand down.
5. Tighten the wheel axle to the spec-
ified torque.
6. Tighten the front wheel axle pinch
bolt to the specified torque.
7. While applying the front brake,
push down hard on the handlebars
several times to check if the front
fork compresses and rebounds
smoothly.
8. Connect the speedometer cable.
EAU25080
Rear wheel
EAU25142
To remove the rear wheel
WARNING
EWA10821
To avoid injury, securely support the
vehicle so there is no danger of it
falling over.
1. Loosen the axle nut.
2. Disconnect the brake torque rod
from the brake shoe plate by re-
moving the bolt and nut.
3. Loosen the brake torque rod nut at
the swingarm.

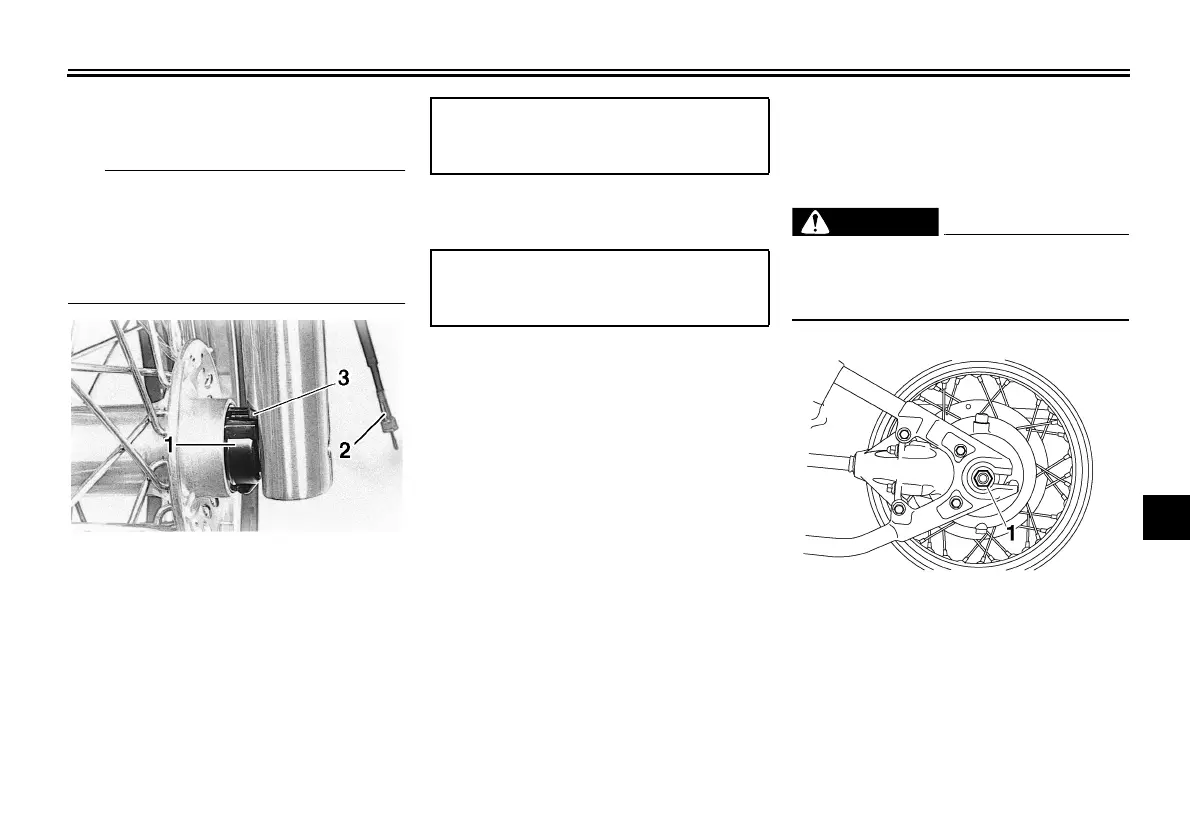

1. Speedometer gear unit
2. Speedometer cable
3. Retainer
Tightening torque:
Wheel axle:
59 Nm (5.9 m·kgf, 43 ft·lbf)
Tightening torque:
Front wheel axle pinch bolt:
20 Nm (2.0 m·kgf, 14 ft·lbf)
1. Axle nut
U1BF20E0.book Page 34 Thursday, April 9, 2009 9:10 AM
