Components
12
EMU25850
Fuel tank cap

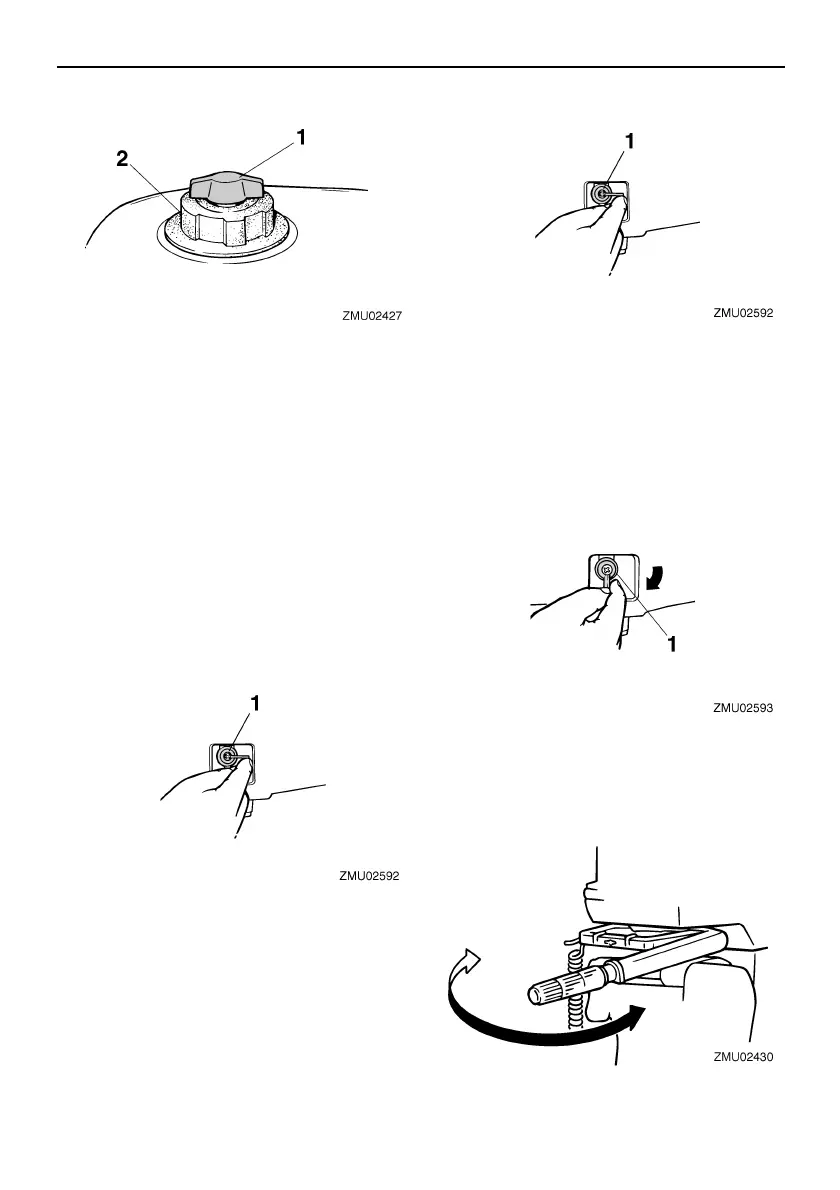

This cap seals the fuel tank. When removed,
the tank can be filled with fuel. To remove the
cap, turn it counterclockwise.
EMU25860
Air vent screw
This screw is on the fuel tank cap. To loosen
the screw, turn it counterclockwise.
EMU25872
Fuel cock
The fuel cock turns on and off the supply of
fuel from the fuel tank to the engine.
EMU25881
Close
To stop fuel flow to the engine, turn the lever
or knob to close position.
Always turn the lever or knob to close position
when the engine is not running.
EMU25891
Open
With the lever/knob in this position, fuel flows
to the carburetor.
Normal running is done with the lever/knob in
this position.
EMU25911
Tiller handle
To change direction, move the tiller handle to
the left or right as necessary.
1. Air vent screw
2. Fuel tank cap
1. Fuel cock
1. Close position
1. Open position
