5-12

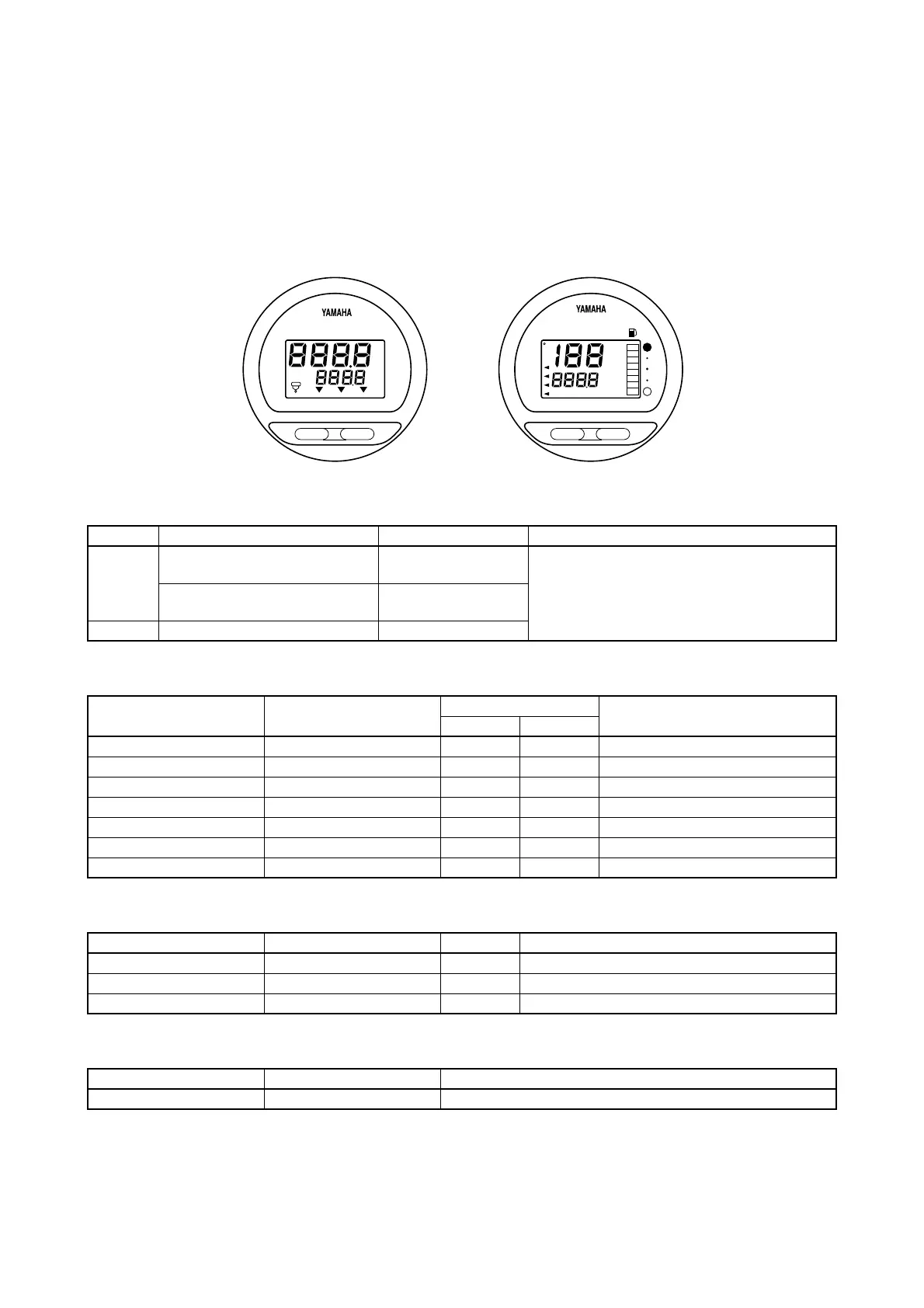

FUEL MANAGEMENT GAUGE
The fuel management gauge has the functions as a fuel flow gauge, fuel consumption gauge, fuel
economy gauge, twin engine RPM synchronizer for dual installations, and an optional water separa-
tor warning indicator that detects water in the fuel filter.
The gauge can display by receiving data from the fuel flow sensor and either an NMEA 0183 com-
patible GPS unit or the digital speedometer.
* Fuel management gauge with speedometer does not have the function as twin engine RPM synchronizer,
water detection warning, and each engine’s fuel measurement.
FUEL MANAGEMENT GAUGE TYPES AND APPLICATIONS
FUEL MGT GAUGE KIT CONTENTS
ADDITIONAL PARTS REQUIREMENTS (FOR FUEL MGT w/ speedometer)
OPTIONAL WIRE-HARNESS
Ref. No. Description Part No. Applicable model
1
Fuel mgt gauge kit 1
For single-engine
6Y5-W0088-54
Above 115
Above F115 [Mechanical RC]
Fuel mgt gauge kit 2
For twin-engine
6Y5-W0088-65
2 Fuel mgt gauge with speedometer 6Y5-83500-40
Description Part No.
Q’ty
Remarks
Kit 1 Kit 2
Fuel mgt gauge 6Y5-8350F-01 1 1 w/ 3-prong connector
EXT wire-harness 6Y5-83553-F1 1 1 8 m (26 ft)
Fuel flow sensor 6Y5-85752-02 1 2
EXT wire-lead 6Y5-82117-00 1 1 30 cm (1 ft) (BLK)
Screw 90158-06003 2 4
Wire-lead 703-82531-00 — 1 70 cm (2.3 ft) (BLK)
Installation manual 6Y5-2819K-F0 1 1
Description Part No. Q’ty Remarks
Fuel flow sensor 6Y5-85752-02 1
EXT wire-harness 6Y5-83553-F1 1 8 m (26 ft)
Screw 90158-06003 2
Description Part No. Remarks
GPS signal lead 6Y5-85721-F0 To connect an NMEA0183 compatible GPS unit
set
mode
TTL ECON SYNC
l/h
gph
km/l
mpg
FUEL MANAGEMENT
P S
1
2
set
mode
km/h
knots
mph
CPS
mile V
mpgph
TRIP
FLOW
ECOM
TTL
SPEED
FUEL
km/l/h
BAT
