7-8
NETWORK HUB
Shared between 6Y8 and 6Y9 network systems.
Ref. No. Part name Part No. Remarks
1 Multi-hub 6Y8-81920-01 w/ ending resistor cap (P/N: 6Y8-85371-01)
2 Single hub (Inline hub) 6Y8-81920-11 Included ending resistor
3 2P sealing cap, RED 6Y8-82582-01
4 4P sealing cap, WHT 6Y8-82582-11

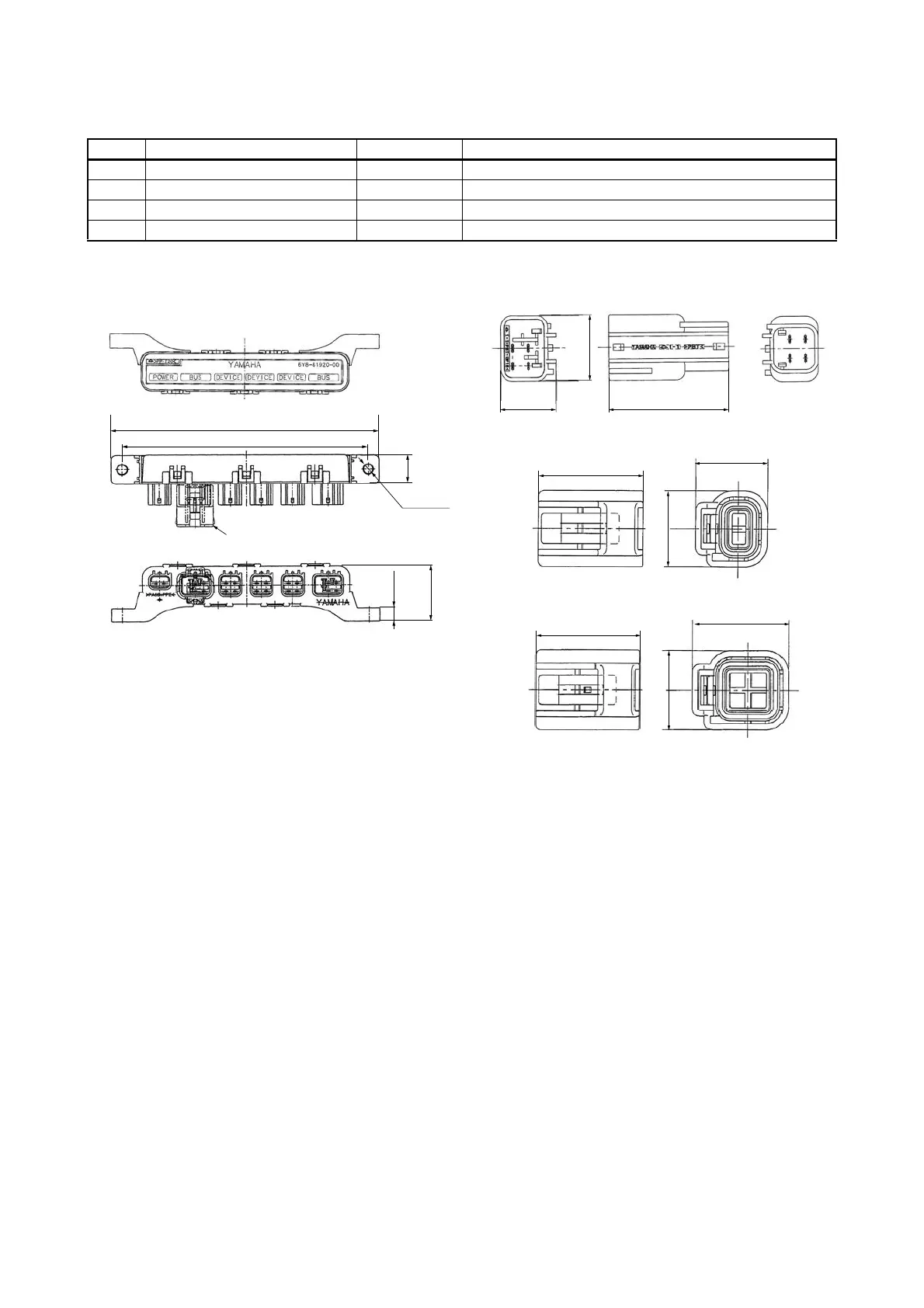

178 (7.01)
Resistor cap (GRY)
194.8 (7.67)
7 (0.28)
41.4
(1.63)
21.4
(0.84)
10
(0.39)
22.55
(0.88)
19.65
(0.77)
42 (1.65)
(WHT)
26 (1.02)
18.54 (0.73)
19.3 (0.76)
(RED)
23.95 (0.94)
20.25 (0.79)
26 (1.02)
(WHT)
12
3
4
mm (in.)mm (in.)
* Face the connectors downward for installation.
