WIRE HARNESS

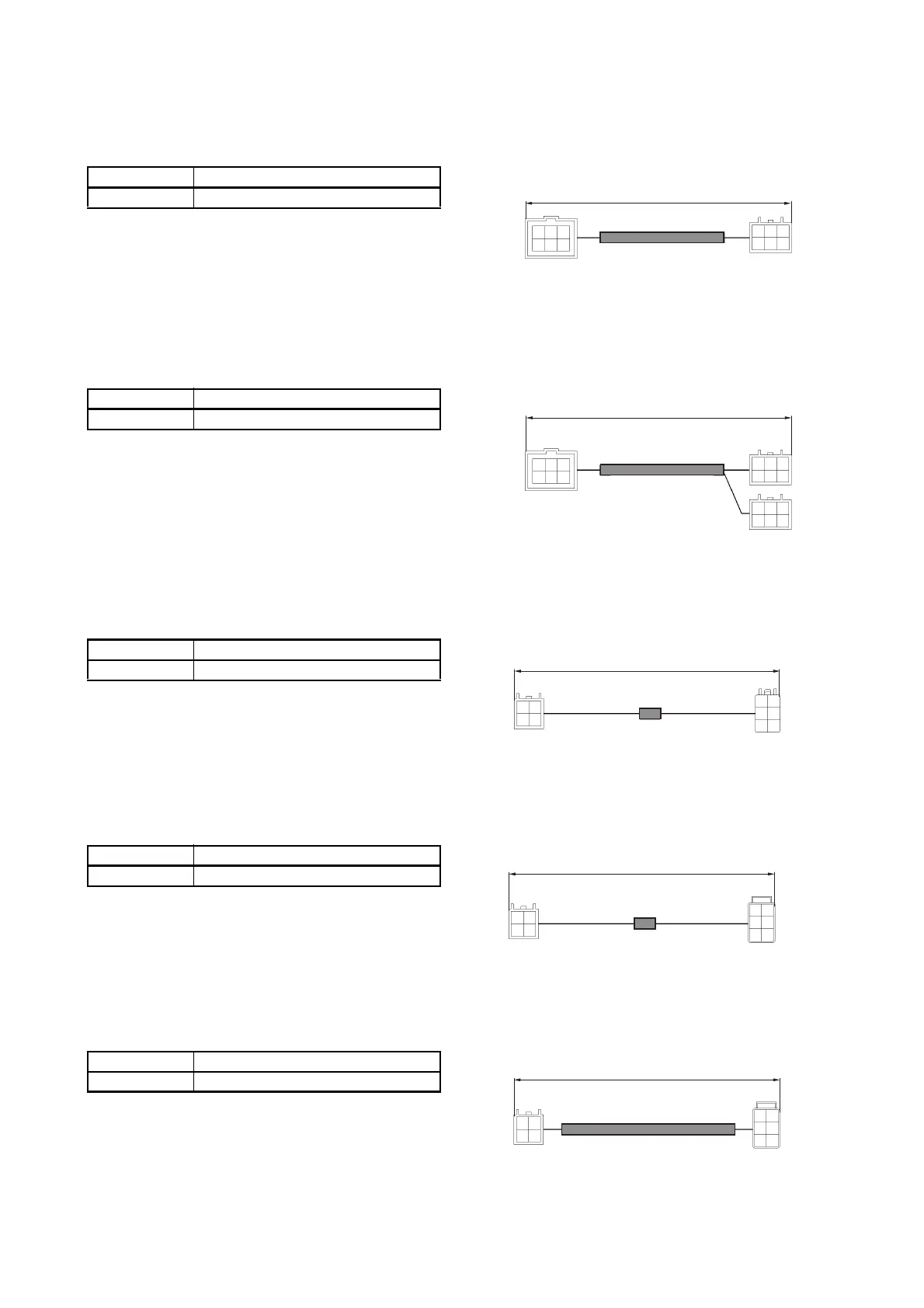

CONVERSION HARNESS
Used to connect between DEC and network hub.
CONVERSION HARNESS 1
Used to connect between DEC and network hub if dual station system is used and multi-sensor is
connected.
CONVERSION HARNESS 4
Used to connect between premium gauge and network hub.
CONVERSION HARNESS 5
Used to connect between analog gauge IF/ Gateway and network hub.
CONVERSION HARNESS 6
Used to connect between multi-sensor and network hub.
Part No. Remarks
6Y9-83553-00 For 6Y9 network system
Part No. Remarks
6Y9-83553-10 For 6Y9 network system
Part No. Remarks
6Y9-83553-40 For 6Y9 network system
Part No. Remarks
6Y9-83553-50 For 6Y9 network system
Part No. Remarks
6Y9-83553-60 For 6Y9 network system
310 (12.2)
(WHT)
W
X
X
L
W
W
X
X
X
L
X
W
(GRY)
To RC To hub
mm (in.)
310 (12.2)
(WHT)
W
X
L
L
X
W
X
X
B
L
R
W
X
X
B
L
R
W
(GRY)
(GRY)
To RC
To hub
#1
To hub
#2
mm (in.)
150 (5.91)
(WHT)
R
W
B
L
X
L
R
W
XB
(GRN)
Black taping
To
hub
To
premium
gauge
mm (in.)
160 (6.3)
(WHT)
R
W
B
L
R
W
X
L
BX
(GRN)
Green taping
To
hub
To
gateway/ IF
mm (in.)
240 (9.45)
(WHT)
R
W
B
L
R
W
L
L
BW
(GRN)
Orange taping
To
hub
To multi-
sensor
mm (in.)
