Yamaha 30DMHO - Routing Coolant Temp. Lead; Routing the Coolant Press. Tube

5-22

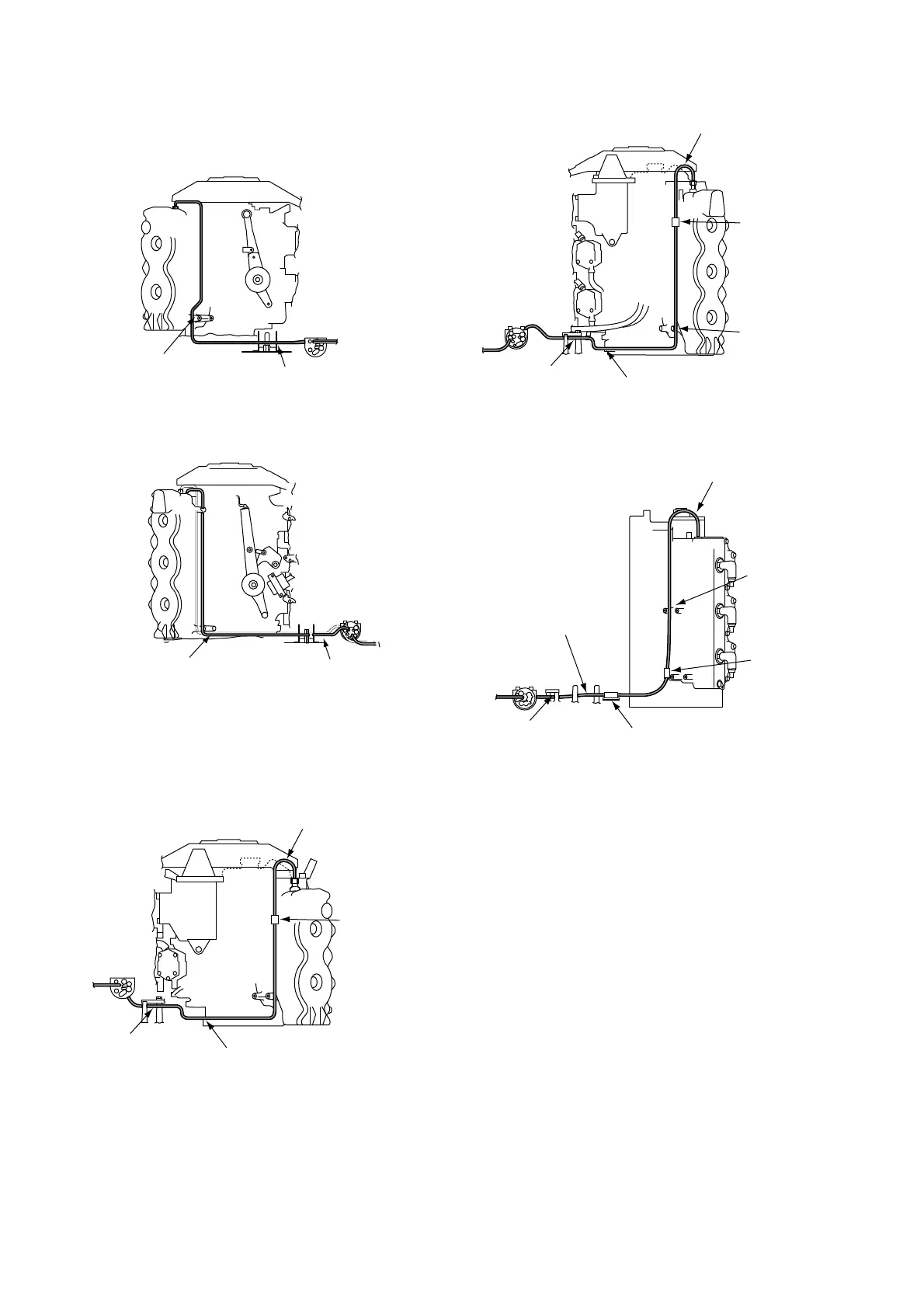

COOLANT TEMP. METER
ROUTING COOLANT TEMP. LEAD
V4
V6 (2.6)
ROUTING THE COOLANT PRESS.
TUBE
V4
V6 (2.6)
V6 (3.1)
Through the
stopper base
Secure with
10-pin harness holder
Through the
stopper base
Secure with
10-pin harness
holder
Secure with
cable holder
Along port-side
bottom cowling
Add a clamp to
oil tank mount
bolt to secure
tube
Same height
as oil tank
Secure with
cable holder
Along port-side
bottom cowling
Add a clamp to
oil tank mount
bolt to secure
tube
Same height
as oil tank
Through
the stopper
base
Secure with
cable holder
Through the
fuel filter
base
Same height as
thermostat cover
Through the
fuel pump
stopper base
Secure with
fuel hose clamp
Secure with
clamp
