Yamaha 30DMHO - Interchangeability Between Tachometer and Engine

5-44
WIRING DIAGRAMS
INTERCHANGEABILITY BETWEEN TACHOMETER AND ENGINE (up to 2006 and
after 2007)

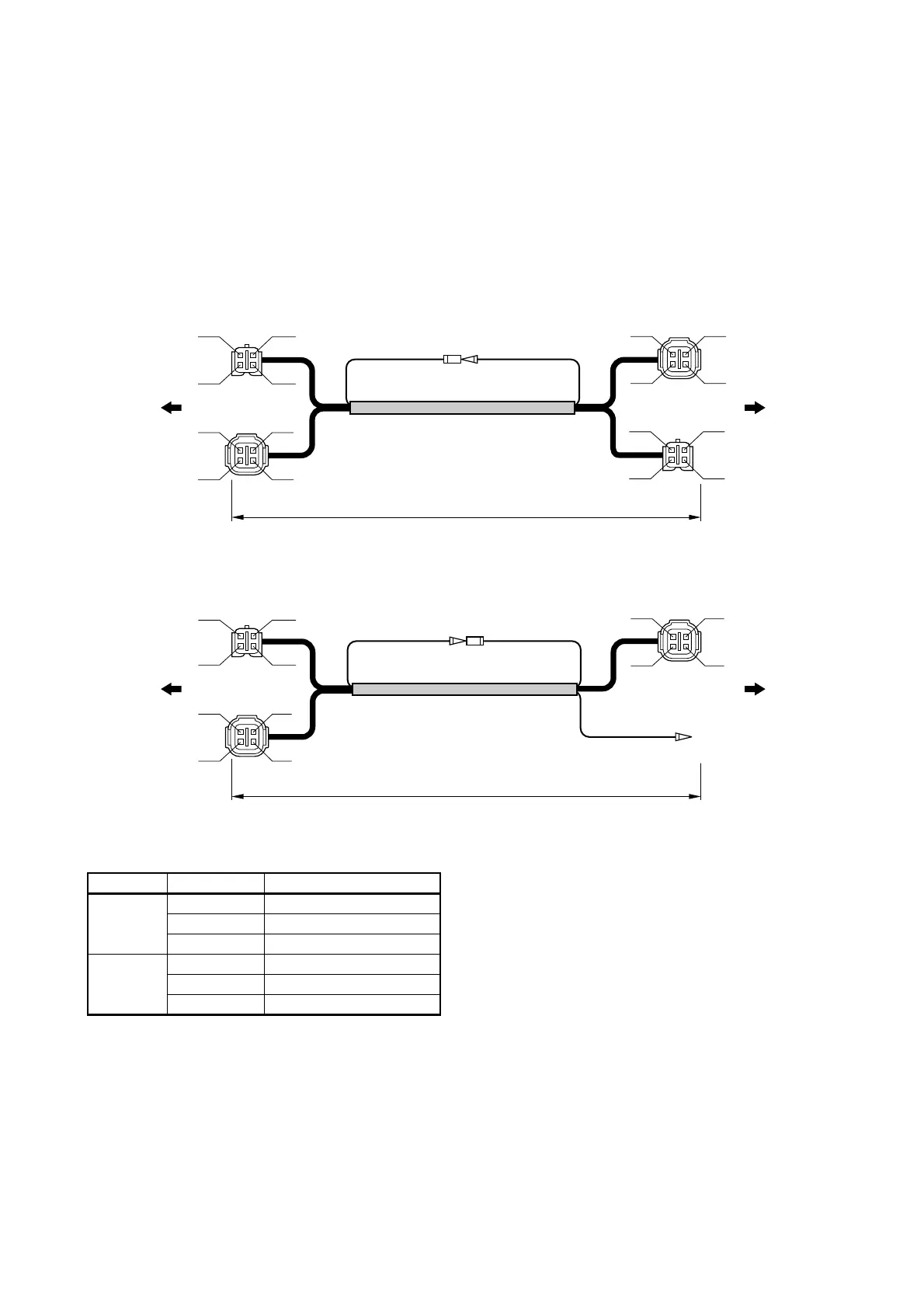

The wire-harness adapter is available for connection between 2006 and former engines and 2007
and later gauges or between 2006 and former gauges and 2007 and later engines. The water detec-
tion warning and check engine warning are no longer activated if either 2007 and later engines or
2007 and later gauges are installed.
Wire-harness adapter 1
P/N: 6Y5-85335-00
Wire-harness adapter 2
P/N: 6Y5-85335-10
For US and Canada
The interchangeability between engine and gauge for model year is shown in the table below.
Engine Gauge Interchangeability
- 2003
- 2003 OK
2004 - 2006 OK
2007 - Requires 6Y5-85335-10
2004 -
- 2003 Requires 6Y5-85335-00
2004 - 2006 OK
2007 - OK
