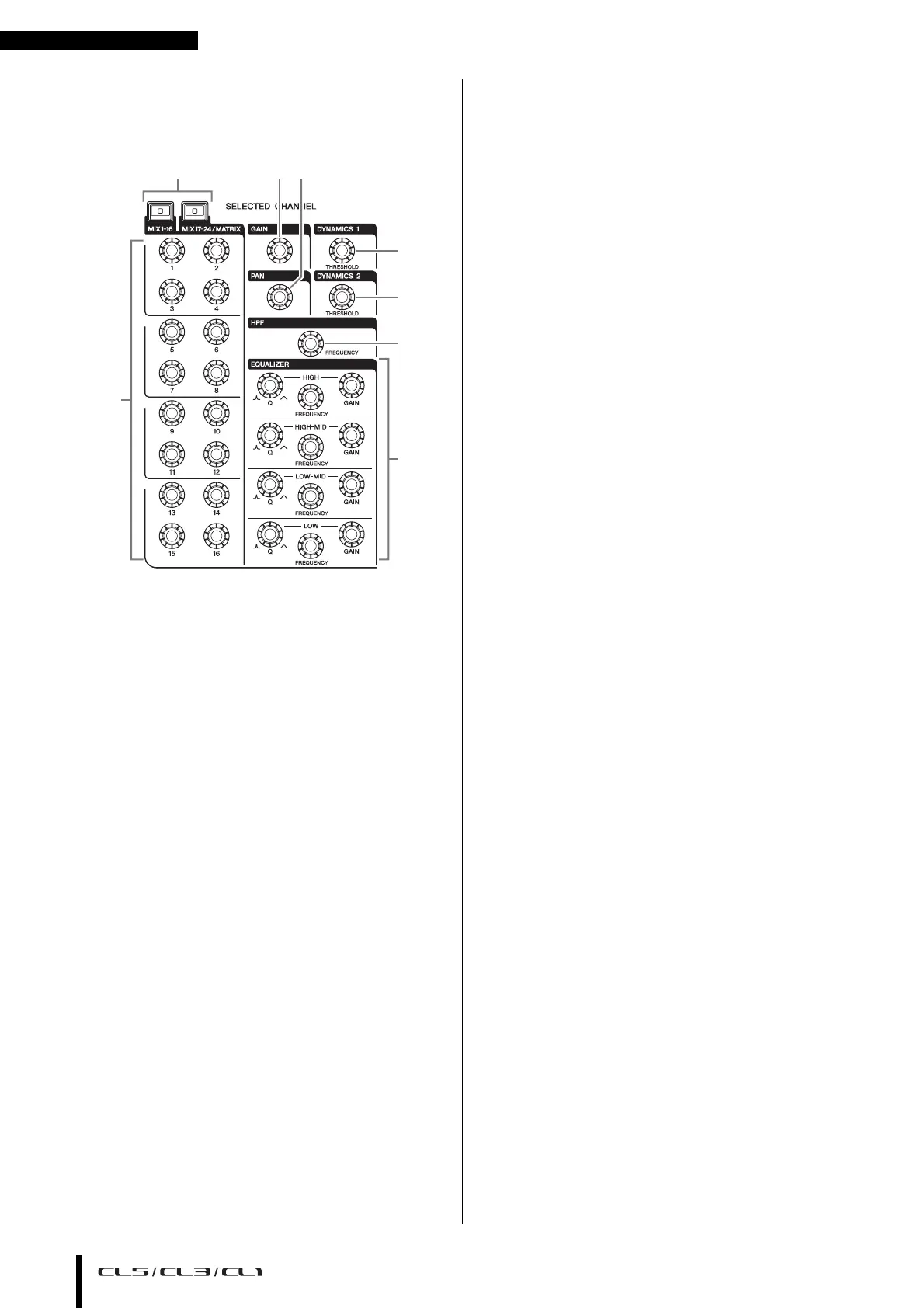

SELECTED CHANNEL section
This section enables you to set the mix parameters for the
currently-selected channel.
1 [MIX1–16] key/[MIX17–24/MATRIX]key
Select a MIX or MATRIX bus that is controlled by the
knobs located below the keys.
2 [1]–[16] knobs
Adjust the send level from currently-selected channels
to the MIX or MATRIX bus.
In SENDS ON FADER mode, push in a knob to select
the corresponding destination bus.
NOTE
If the SIGNAL TYPE of the destination bus is set to
STEREO, use the left knobs (odd-numbered channels) to
adjust PAN and the right knobs (even-numbered channels)
to adjust the send level.
3 [GAIN] knob
Adjusts the head amp’s analog gain for an input
channel.
On the other hand, it adjusts the digital gain if GAIN
KNOB FUNCTION is set to DIGITAL GAIN in the
PREFERENCE tab of the USER SETUP screen.
This knob has no effect for other types of channels.
NOTE
• The PAD will be switched on or off internally when the HA
analog gain is adjusted between +17 dB and +18 dB.
Keep in mind that noise may be generated when using
phantom power if there is a difference between the Hot and
Cold output impedance of an external device connected to
the INPUT connector.
• The gain parameter value indicates the amount of
amplification of the currently-input signal. Refer to the
Conversion Table (page 11) for information on the
relationship to conventional input sensitivity values.
4 [PAN] knob
When a monaural channel is selected, this knob
adjusts the panning of the signal sent to the STEREO
bus.
When a stereo channel is selected, this knob adjusts
the PAN or left/right balance, whichever is selected.
5 [DYNAMICS 1] knob
6 [DYNAMICS 2] knob
Adjust the THRESHOLD parameter of the gate,
compressor, etc.
The [DYNAMICS 2] knob has no effect if the MIX,
MATRIX, STEREO, or MONO channel is selected.
7 [HPF] knob
Adjusts the HPF cutoff frequency for an input
channel. It has no effect on other types of channels.
8 EQ [Q], EQ [FREQUENCY], EQ [GAIN] knobs
For each band of the four-band EQ, these knobs adjust
the Q, center frequency (cutoff frequency), and gain.
Press the EQ [Q] and EQ [GAIN] knobs
simultaneously to reset the GAIN setting for each
band to the default value (0.0 dB).
5
6
7
1
2
34
8

Yamaha CL3 Specifications

General

DJ mixer	-
Product color	Black
Video capability	No
Frequency range	20 - 20000 Hz
Channels quantity	72 channels
Signal delay (@48kHz)	2.5 ms
Supported sample rates	44.1, 48 kHz
Digital sound processing	- bit
Power consumption (typical)	170 W
USB 2.0 ports quantity	1

Weight and Dimensions

Depth	667 mm
Width	839 mm
Height	299 mm
Weight	29000 g
