Chapter 4—Hookup Examples
DA824—Owner’s Manual
4 Hookup Examples
In the following hookup examples, the “Digital Audio Device” could be any device with
a compatible AES/EBU or ADAT interface, including the following Yamaha products
with the necessary I/O cards installed: DME32 Digital Mixing Engine, 02R Digital
Recording Console, 03D Digital Mixing Console, 01V Digital Mixing Console, or D24
Digital Multitrack Recorder.

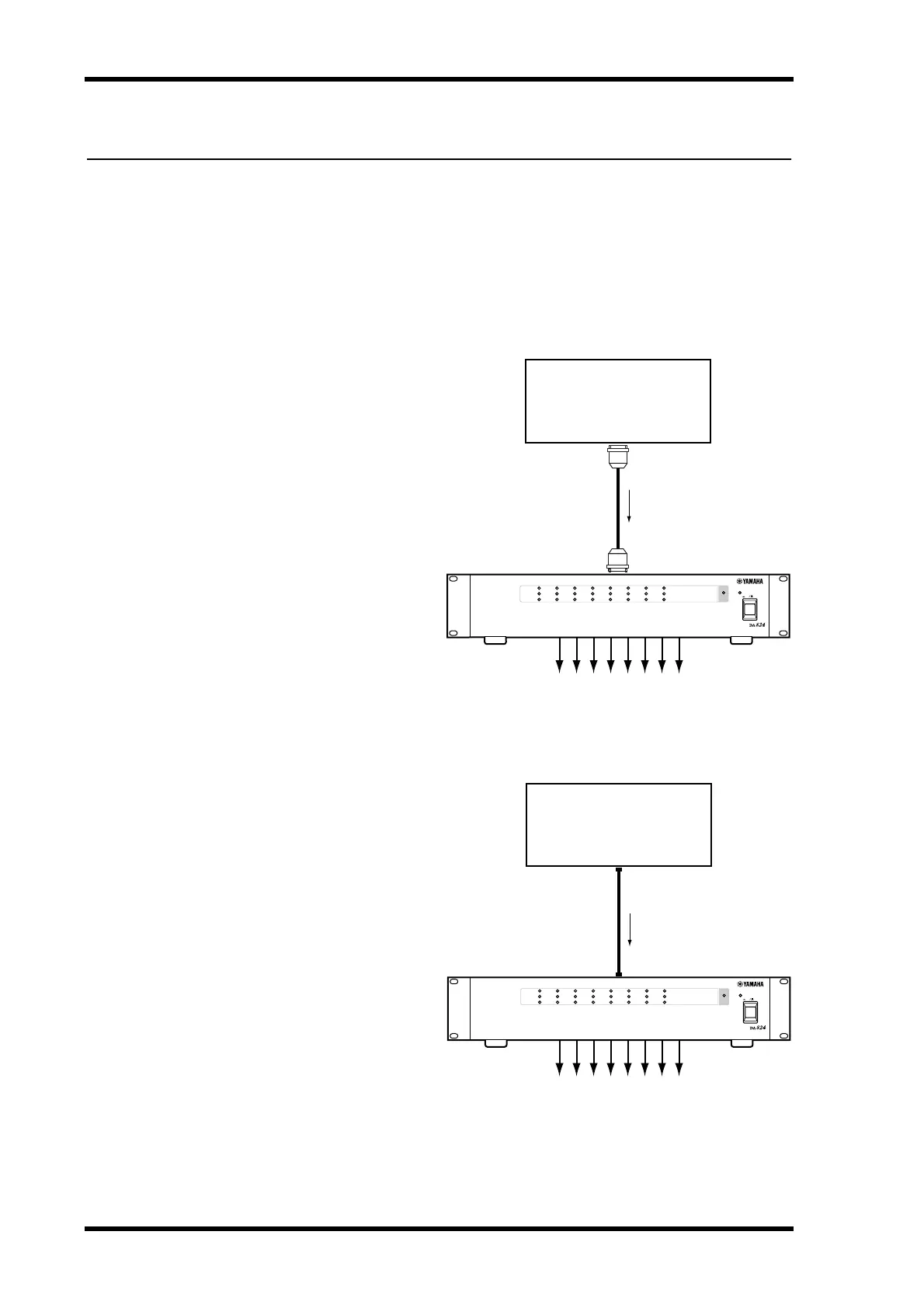

Basic AES/EBU Connection
This example shows how the
DA824 can be connected to a
digital audio device with an
AES/EBU interface by using
an MY8-AE I/O card and a
25-pin D-sub AES/EBU con-
necting cable.
Basic ADAT Connection
This example shows how the
DA824 can be connected to a
digital audio device with an
ADAT interface by using a
MY8-AT I/O card and stan-
dard ADAT connecting cable.
Digital Audio Device
(DME32, 02R, D24, etc.)
AES/EBU cable
SLOT: MY8-AE
AES/EBU I/O
Analog output x8
DA824
ON OFF
POWER
DA CONVERTER
LOCK
PEAK
SIGNAL
NOMINAL
PEAK
SIGNAL
NOMINAL
1 2345678
Digital Audio Device
(DME32, 02R, D24, etc.)
ADAT cable
SLOT: MY8-AT
OUT
IN
ADAT I/O
Analog output x8
DA824
ON OFF
POWER
DA CONVERTER
LOCK
PEAK
SIGNAL
NOMINAL
PEAK
SIGNAL
NOMINAL
1 2345678
