AES/EBU Connection with Splitter Cable
7
DA824—Owner’s Manual

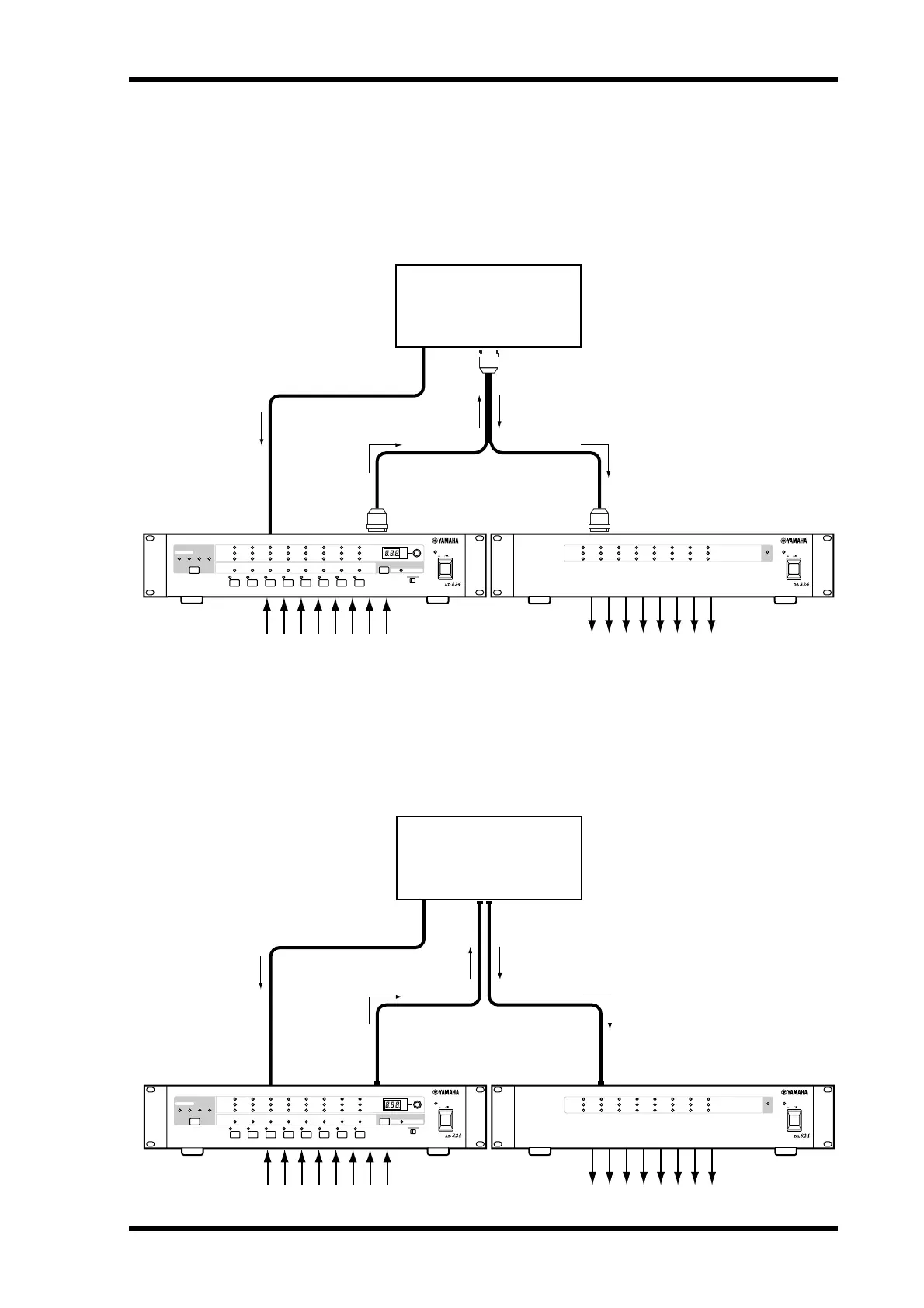

AES/EBU Connection with Splitter Cable
This example shows how both an AD824 and DA824 can be connected to a digital
audio device with a single AES/EBU interface by using MY8-AE I/O cards and a custom
AES/EBU splitter cable. Pin wiring details for the AES/EBU interface are supplied with
each MY8-AE I/O card. The digital audio device is the wordclock master, with the
AD824 receiving its wordclock via a BNC connection, the DA824, via its slot input.
Dual ADAT Connection
This example shows how both an AD824 and DA824 can be connected to a digital
audio device with standard ADAT I/O by using MY8-AT I/O cards and standard ADAT
connecting cables. The digital audio device is the wordclock master, with the AD824
receiving its wordclock via a BNC connection, the DA824, via its slot input.
AD824
Analog input x8
DA824
Analog output x8
Digital Audio Device
(DME32, 02R, D24, etc.)
Custom AES/EBU splitter cable
SLOT: MY8-AESLOT: MY8-AE
AES/EBU I/O
BNC cable
WC OUT
WC IN
ON OFF
POWER
DA CONVERTER
LOCK
PEAK
SIGNAL
NOMINAL
PEAK
SIGNAL
NOMINAL
1 2345678
ON OFF
POWER
AD CONVERTER
1 2345678
PEAK
SIGNAL
NOMINAL
PEAK
SIGNAL
+48V
SEL
NOMINAL
+48V
WORD CLOCK
INTERNAL
44.1kHz BNC SLOT48kHz
SEL
dB
GAIN
OFF ON
+48V MASTER
Analog input x8
Analog output x8
AD824 DA824
Digital Audio Device
(DME32, 02R, D24, etc.)
ADAT cables
SLOT: MY8-AT
SLOT: MY8-AT
IN OUT
IN
ADAT I/O
OUT
BNC cable
WC OUT
WC IN
ON OFF
POWER
DA CONVERTER
LOCK
PEAK
SIGNAL
NOMINAL
PEAK
SIGNAL
NOMINAL
1 2345678
ON OFF
POWER
AD CONVERTER
1 2345678
PEAK
SIGNAL
NOMINAL
PEAK
SIGNAL
+48V
SEL
NOMINAL
+48V
WORD CLOCK
INTERNAL
44.1kHz BNC SLOT48kHz
SEL
dB
GAIN
OFF ON
+48V MASTER
