DME Setup Manual 8

4 Master ID

When a device is assigned as a Slave in Master/Slave (2) above, this sets the host address for the Master device in that

group. This parameter cannot be set for the Master device.

5 Link Mode

Make sure that “100Base-TX” is selected.

10 If the system includes multiple DME devices, repeat the above settings for each individual device.

Refer to the DME manual for information on audio connection and further network connection details.

n If you will be using CobraNet™ for audio connections, the required bundle numbers and related settings must be made via the DME

Designer application.

n If you will be using EtherSound™ for audio connections, the routing and other EtherSound settings must be made via the AuviTran AVS-

ESMonitor software available from the AuviTran website:

http://www.auvitran.com/view.php?products_AVS-ESMonitor.php

Directly Connecting a Single DME Device to a Computer

When only one DME device is to be controlled, connect the device to the computer via a USB cable as described

in “DME Network Setup” on page 6.

Connecting Multiple DME Devices to a Computer in the Same Subnet

Connect multiple DME devices to the computer via a switching hub and Ethernet cables.

n It is possible to connect the computer to the Device Group Master using a USB cable.It is also possible to connect the computer to a

Slave DME using a USB cable if a DME Satellite is assigned as the Device Group Master.

n Use a switching hub that is capable of 100Base-TX operation.

n The maximum length of cables that can be used to connect DME units to a switching hub is 100 meters. Proper operation at this length,

however, will depend on the quality of the hub and cables used, and cannot be guaranteed.

n Use CAT5 STP (shielded twisted pair) type cable to maximize resistance to electromagnetic interference.

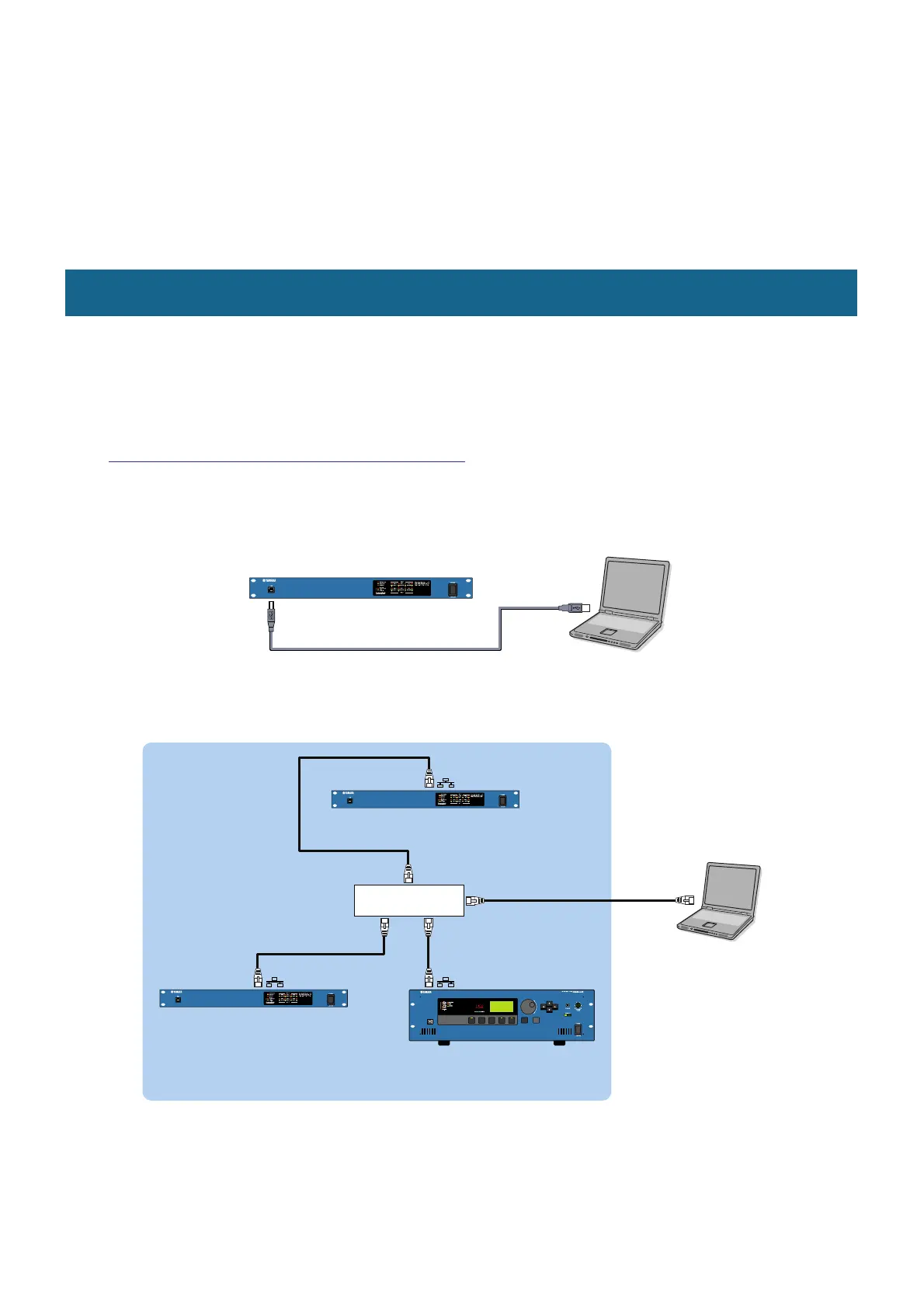

Computer to DME Connection

USB cable

Group Master

DME Satellite (IP Address: 192.168.0.2)

Device Group

Ethernet cable

Ethernet straight cable

DME Satellite

(IP Address: 192.168.0.3)

(Master ID: 2)

DME64N/24N

(IP Address: 192.168.0.250)

(Master ID: 2)

Computer

(IP Address: 192.168.0.100)

Switching hub
