Operation
48

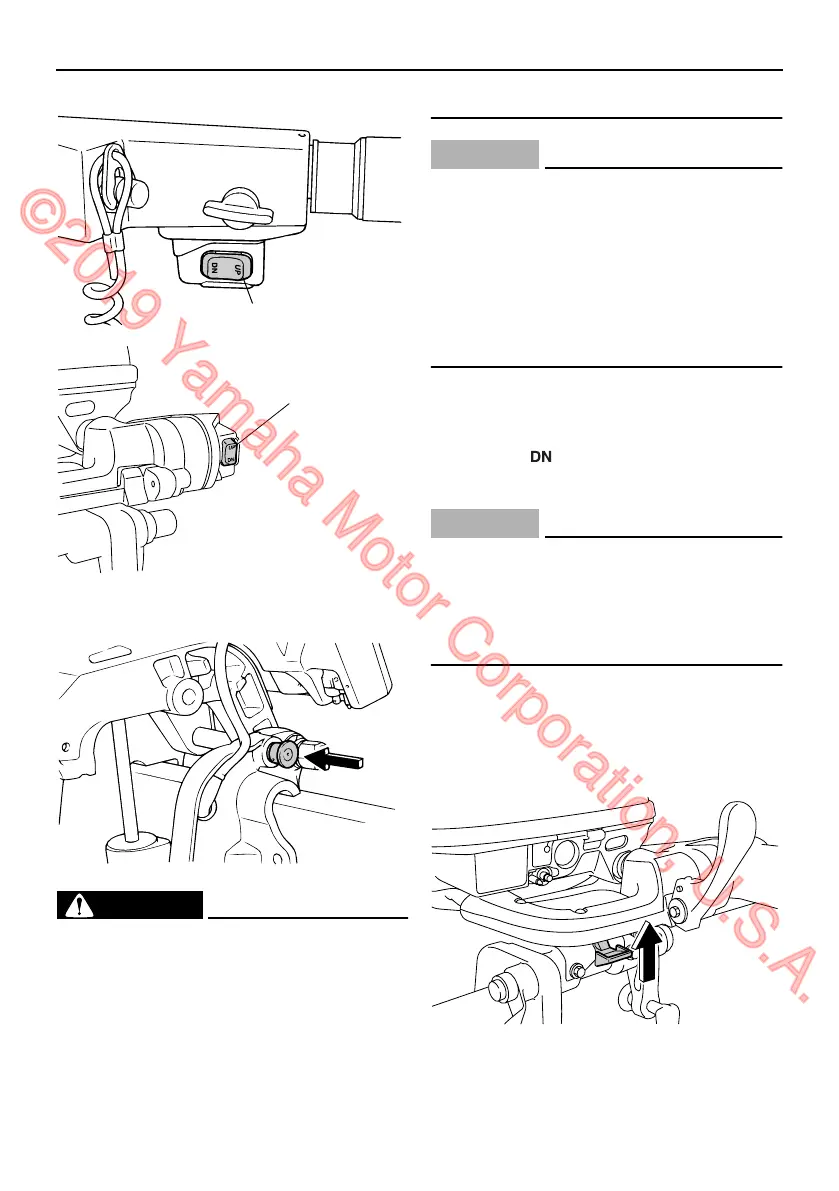

3. Push the tilt support knob into the clamp
bracket to support the engine.
WARNING
EWM00261
After tilting the outboard motor, be sure
to support it with the tilt support knob or
tilt support lever. Otherwise the outboard
motor could fall back down suddenly if oil
in the power trim and tilt unit or in the
power tilt unit loses pressure.
CAUTION:
ECM01640
Do not use the tilt support lever or knob
when trailering the boat. The outboard
motor could shake loose from the tilt sup-
port and fall. If the motor cannot be trail-
ered in the normal running position, use
an additional support device to secure it
in the tilt position. For more detailed in-
formation, see page 55.
4. Models equipped with trim rods: Once
the outboard motor is supported with the
tilt support lever, press the power tilt
switch “” (down) to retract the trim
rods.
CAUTION:
ECM00250
Be sure to retract the trim rods complete-
ly during mooring. This protects the rods
from marine growth and corrosion which
could damage the power trim and tilt
mechanism.
EMU30192
Procedure for tilting down (manual
tilt models)
1. Place the tilt lock lever in the lock posi-
tion.
2. Slightly tilt the engine up until the tilt sup-
port bar is automatically released.
UP
ZMU04900
ZMU05580
UP
ZMU02812
ZMU05541
✩✮✴✬✤✥✤✲✣ ✧✫
