Basic components
24
NOTE:
For instructions on using the power tilt
switch, see pages 43 and 46.
EMU31432

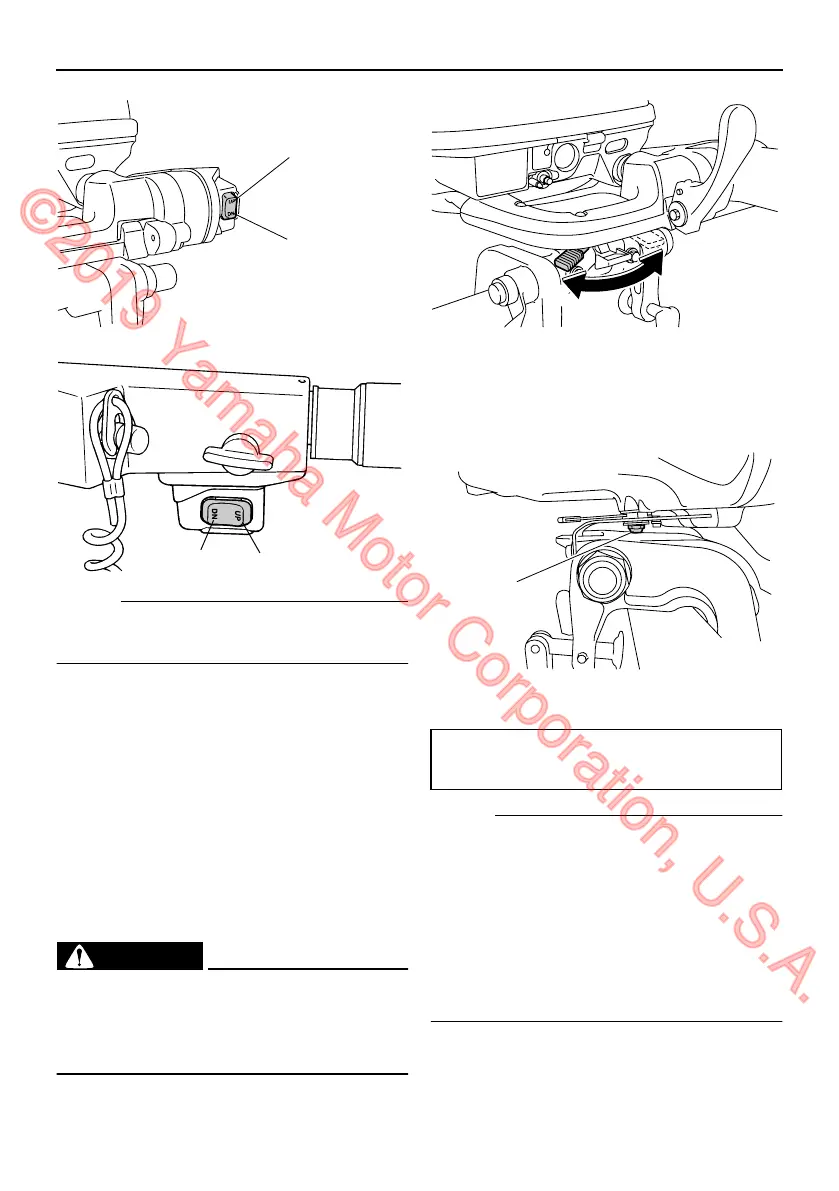

Steering friction adjuster
A friction device provides adjustable resis-
tance to the steering mechanism, and can be
set according to operator preference. An ad-
juster lever is located on the bottom of the
tiller handle bracket.
To increase resistance, turn the lever to the
port side “A”.
To decrease resistance, turn the lever to the
starboard side “B”.
WARNING
EWM00040
Do not overtighten the friction adjuster. If
there is too much resistance, it could be
difficult to steer, which could result in an
accident.
If the resistance does not increase even
when the lever is turned to the port side “A”,
make sure that the nut is tightened to the
specified torque.
NOTE:
●
Steering movement is blocked when the
adjuster lever is set to the “A” position.
●
Check the tiller handle for smooth move-
ment when the lever is turned to the star-
board side “B”.
●
Do not apply lubricants such as grease to
the friction areas of the steering friction ad-
juster.
ZMU05579
UP
DN
DN
UP
ZMU04899
1. Nut
Nut tightening torque:
5.8 Nm (4.3 ft-lb) (0.6 kgf-m)
ZMU05522
A
B
ZMU05523
1
✩✮✴✬✤✥✤✲✣ ✥✧
