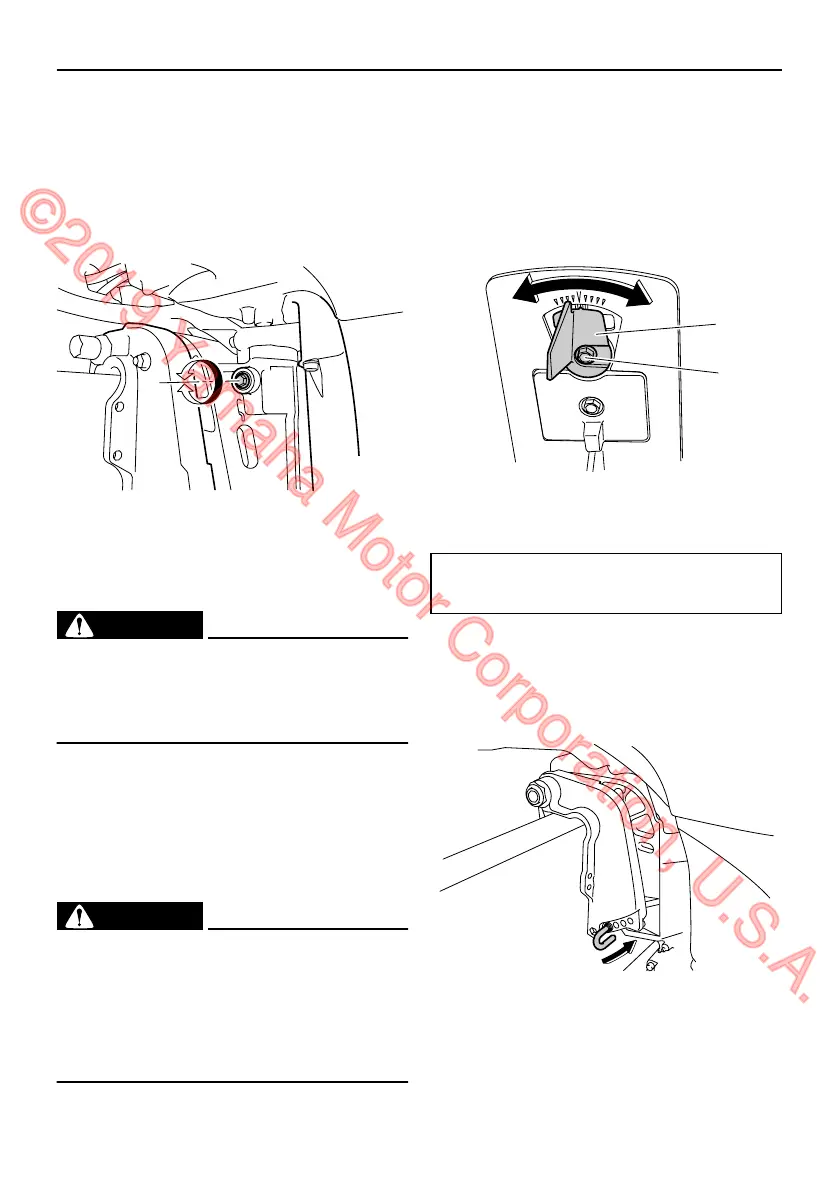

Steering friction adjuster
A friction device provides adjustable resis-
tance to the steering mechanism, and can be
set according to operator preference. An ad-
justing screw or bolt is located on the swivel
bracket.
To increase resistance, turn the adjuster
clockwise.
To decrease resistance, turn the adjuster
counterclockwise.
WARNING
EWM00040
Do not overtighten the friction adjuster. If
there is too much resistance, it could be
difficult to steer, which could result in an
accident.
EMU26252
Trim tab
The trim tab should be adjusted so that the
steering control can be turned to either the
right or left by applying the same amount of
force.
WARNING
EWM00840
An improperly adjusted trim tab could
cause difficult steering. Always test run
after the trim tab has been installed or re-
placed to be sure steering is correct. Be
sure you have tightened the bolt after ad-
justing the trim tab.
If the boat tends to veer to the left (port side),
turn the trim tab rear end to the port side “A”
in the figure.
If the boat tends to veer to the right (star-
board side), turn the trim tab end to the star-
board side “B” in the figure.
EMU26261
Trim rod (tilt pin)
The position of the trim rod determines the
minimum trim angle of the outboard motor in
relation to the transom.
EMU30530
Tilt lock mechanism
The tilt lock mechanism is used to prevent
the outboard motor from lifting out of the wa-
ZMU02288
1. Trim tab
2. Bolt
Bolt tightening torque:
8.0 Nm (5.8 ft-lb) (0.8 kgf-m)
ZMU05524
1
2
B
A
ZMU05525
✩✮✴✬✤✥✤✲✣ ✥
