5-29

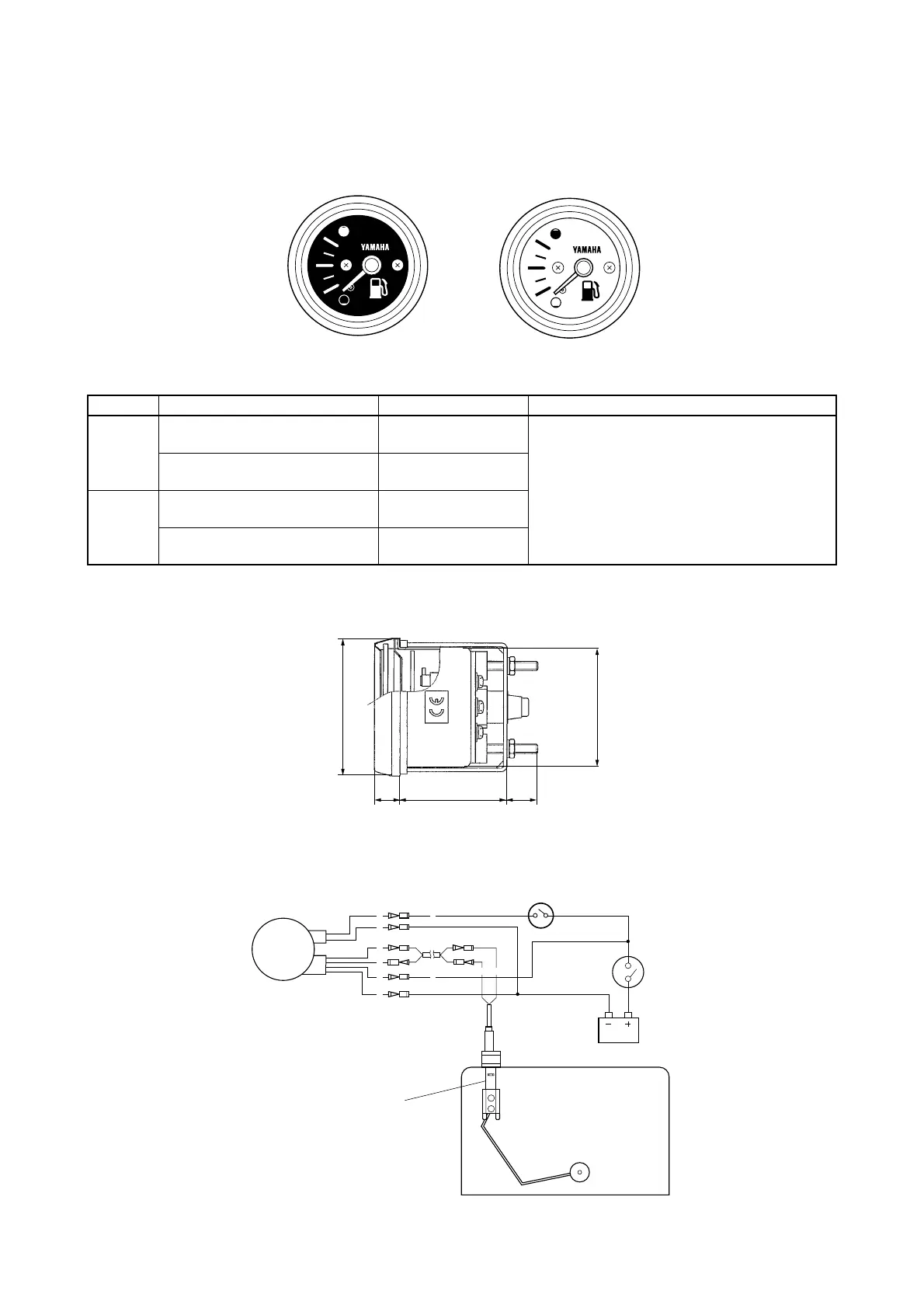

FUEL METER
The fuel meter indicates the amount of fuel remaining in the fuel tank.
However, there may occur difference between the indication and actual remaining fuel due to a fuel
tank shape, design, etc.
FUEL METER APPLICATIONS
FUEL METER DIMENSIONS
WIRING THE METER
Ref. No. Description Part No. Applicable model
1
For Yamaha sender (5 – 105 Ω)
Black panel
6Y7-85750-00
All electrical start models
For ABYC sender (30 – 240 Ω)
Black panel
6Y7-85750-10
2
For Yamaha sender (5 – 105 Ω)
White panel
6Y7-85750-20
For ABYC sender (30 – 240 Ω)
White panel
6Y7-85750-30
21
60 (2.36)
11 (0.43)
46.6 (1.83)
13.7 (0.54)
52 (2.05)
mm (in.)
L
BW
Fuel sender
(Yamaha, ABYC, others)
Battery
Fuel meter
Fuel tank
B
B
W
Y
L
Y
B
Lamp switch
IG
switch
To Next Page
