CONVENTIONAL WIRE HARNESS
An optional wire-harness for the remote control
is prepared. That will help any boats set up the
remote control equipments. Choose a suitable
wire-harness if necessary.
For the wire color code description, see the
table on page 5-35.

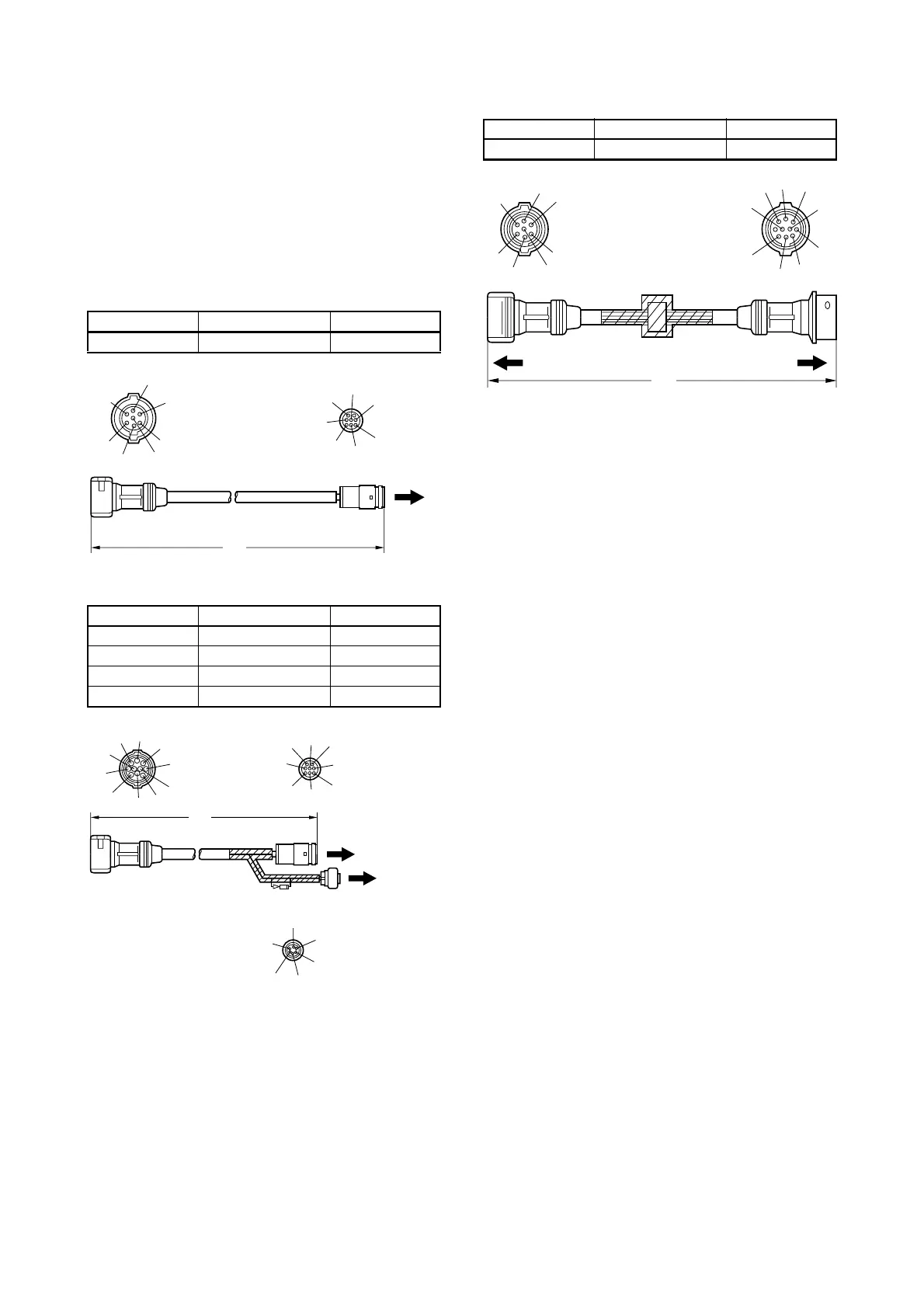

SWITCH PANEL HARNESS
7-PIN MAIN HARNESS
10-PIN MAIN HARNESS
7 TO 10-PIN ADAPTER
Part No. Length (L) Remarks
688-82586-50 5 m (16.4 ft) Without PTT
Part No. Length (L) Remarks
688-8258A-50 5 m (16.4 ft)
688-8258A-60 6 m (19.7 ft)
6K1-8258A-40 8 m (26 ft)
61B-8258A-01 9.5 m (31.6 ft)
L
P
G
Br
W
R
B
P
W
L
R
To S/W
panel
G
Br
B
(L)
R
Y
G
Lg
P
Br
B
L
W
Sb
P
W
L
R
G
Br
B
Y
R
R
Sb
Lg
Br
B
Br
To S/W
panel
To 704/6X3
RC box
(L)
Part No. Length (L) Remarks
703-8258A-00 0.5 m (1.6 ft)
L
P
G
Br
W
R
B
Sb
Y
R
G
P
Br
B
L
W
(L)
RC
ENG
