6-9
Coolant press.
sensor (OP)
FUEL TANK
Single-hub
with resistor
Trim
sender
NMEA
0183
Fuse (10A)
(+)
(GND)
GPS
SPEED/FUELTACH
Speed sensor
ECM
Multi-hub
ResistorCap

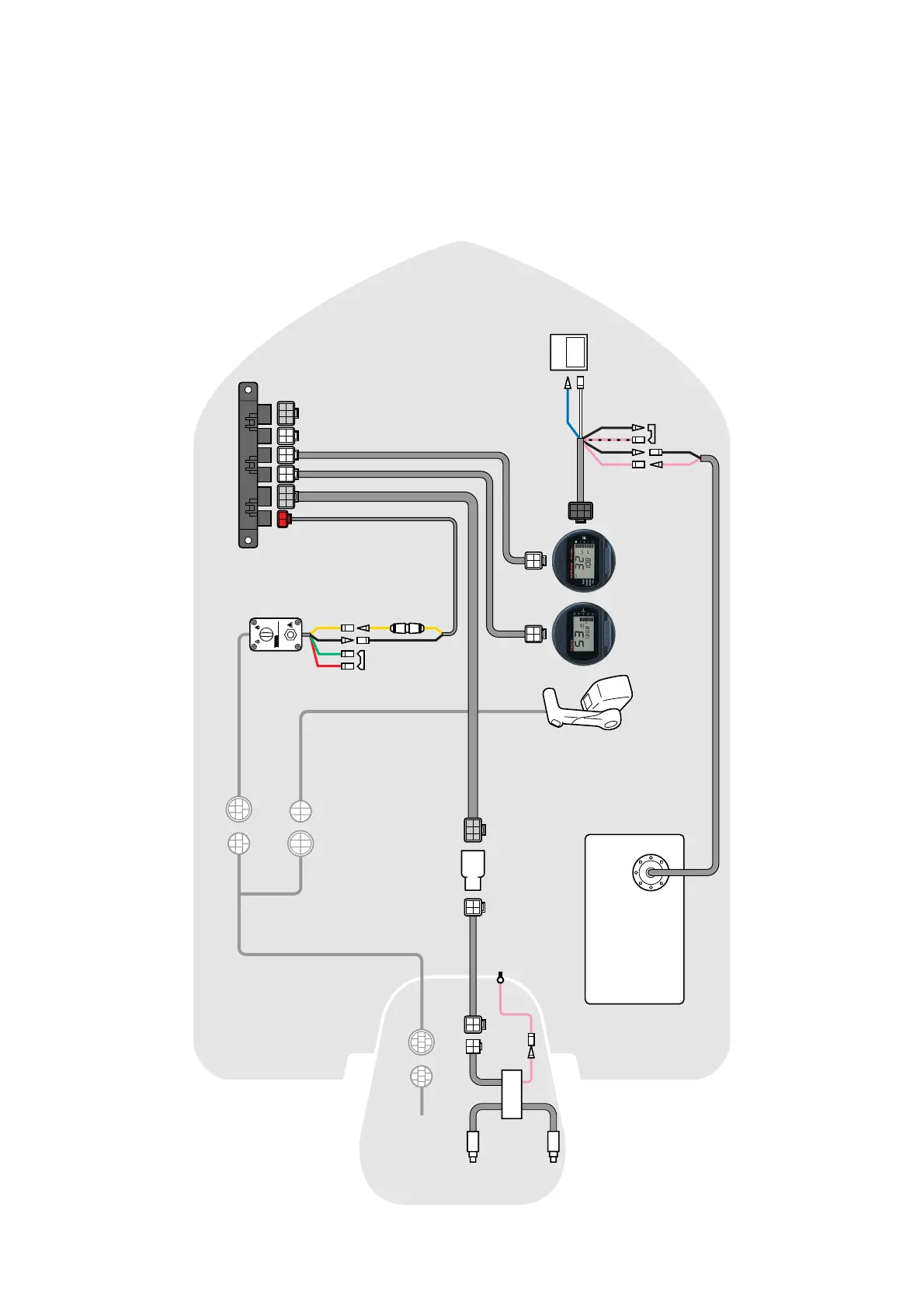

WIRING DIAGRAMS
FUEL INJECTED F50-F250 [Mechanical RC] & HPDI ENGINES
SINGLE ENGINE
