Maintenance and care
88
EJU34321

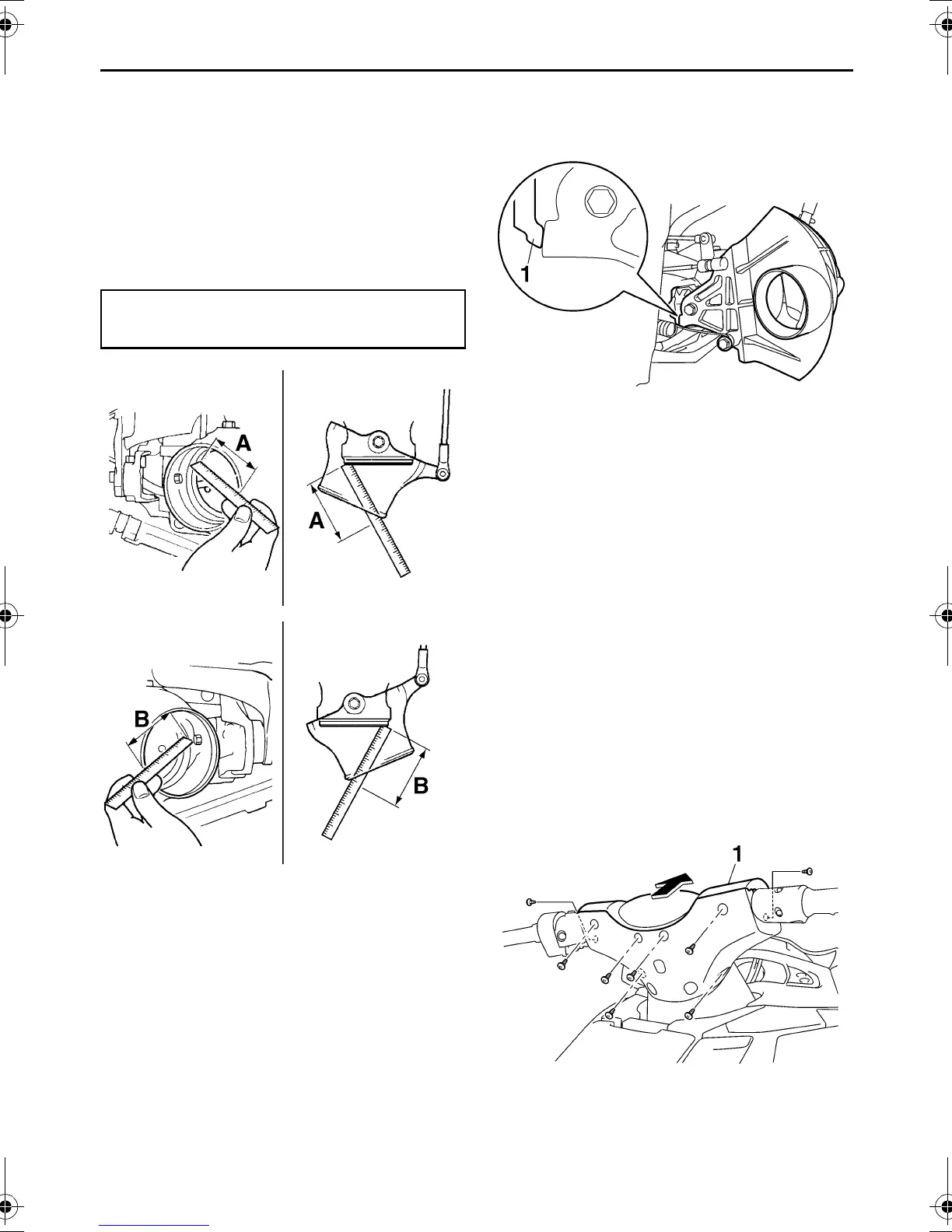

Checking the jet thrust nozzle angle
Check the handlebars and jet thrust nozzle for
smooth operation.
Turn the handlebars as far as possible to the
right and left and check that the difference of
distances A and B between the jet thrust noz-
zle and the nozzle is within specification.
If the steering is stiff or misadjusted, have a
Yamaha dealer service it.
EJU36590
Checking the shift cable
Place the shift lever in the reverse position.
Make sure that the reverse gate makes con-
tact with the stopper.
If the reverse gate does not make contact with
the stopper, have a Yamaha dealer service it.
EJU36560
Checking and adjusting the throttle
cable
Check that the throttle cable moves back to
the set position smoothly and that the throttle
lever free play is within specification.
Squeeze and release the throttle lever. If the
throttle lever does not return smoothly, have a
Yamaha dealer service it.
If the specified throttle lever free play cannot
be obtained as described below, have a
Yamaha dealer make the adjustment.
FX High Output
(1) Remove the eight screws, and then re-
move the front handlebar cover.
Difference of A and B:
Maximum 5 mm (0.20 in)
1 Stopper
1 Front handlebar cover
