Trouble recovery
105
(7) Securely install the seats in their original
positions.
If the fuse immediately blows again, the elec-
trical system may be defective. If this occurs,
have a Yamaha dealer service the watercraft.
EJU41821
Replacing the bilge pump fuse
If the fuse is blown, replace it with the proper
fuse.
To replace the fuse:
(1) Remove the seats and engine cover.
(See page 49 for seat removal and instal-
lation procedures and page 94 for engine
cover removal and installation proce-
dures.)
(2) Remove the plastic ties that are securing
the corrugated tube and bilge pump fuse
leads.
Be careful not to drop the plastic ties into the
engine compartment.
(3) Pull out the bilge pump fuse holder from
the rubber cover, and then remove the
fuse cover.
(4) Replace the blown fuse with the spare
fuse of the correct amperage.
WARNING! Do not use fuses of a dif-
ferent amperage than recommended.
Substitution with a fuse that has an
improper rating can cause extensive
electrical system damage and possi-
ble fire.
[EWJ00802]
If the fuse is difficult to remove, use the fuse
puller on the reverse side of the electrical box

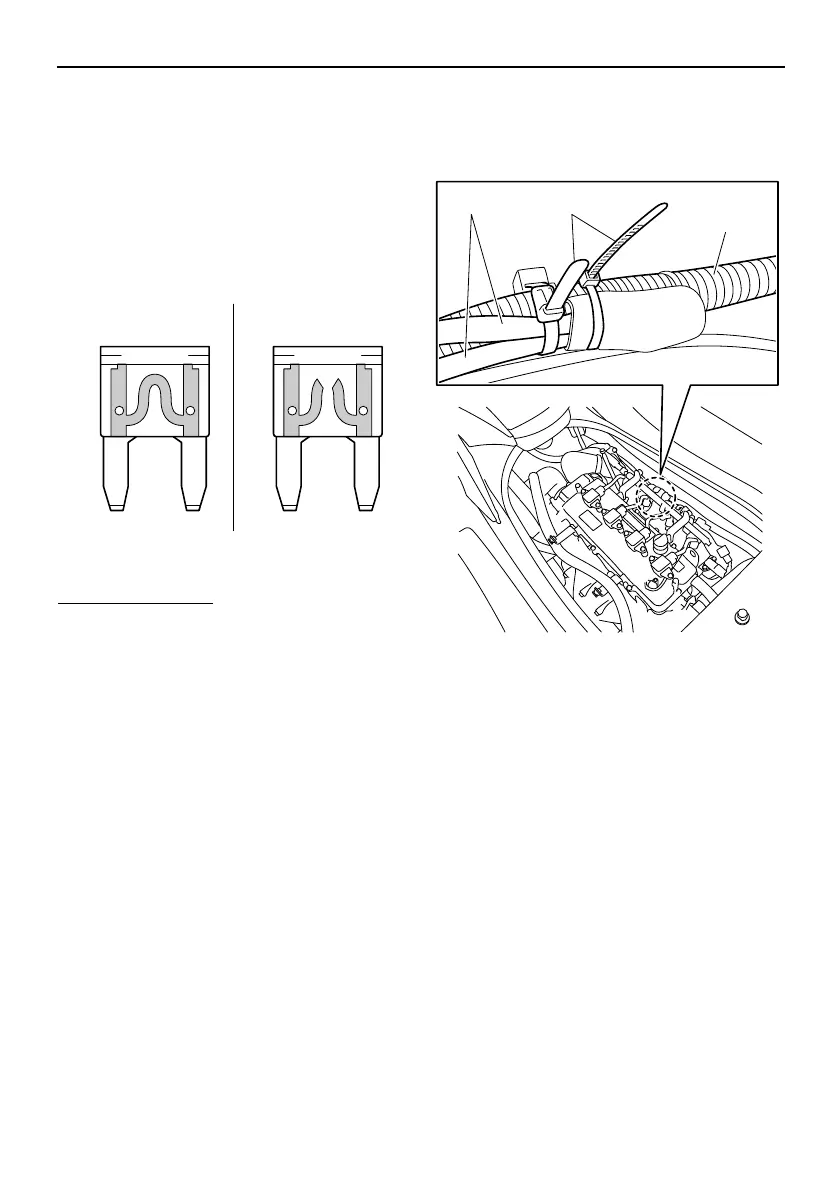

1 Good fuse
2 Blown fuse
1 Bilge pump fuse lead
2 Plastic tie
3 Corrugated tube
