Yamaha MT 10 User Manual

Periodic maintenance and adjustment
8-33
1
2
3
4
5
6
7
8
9
10
11
12

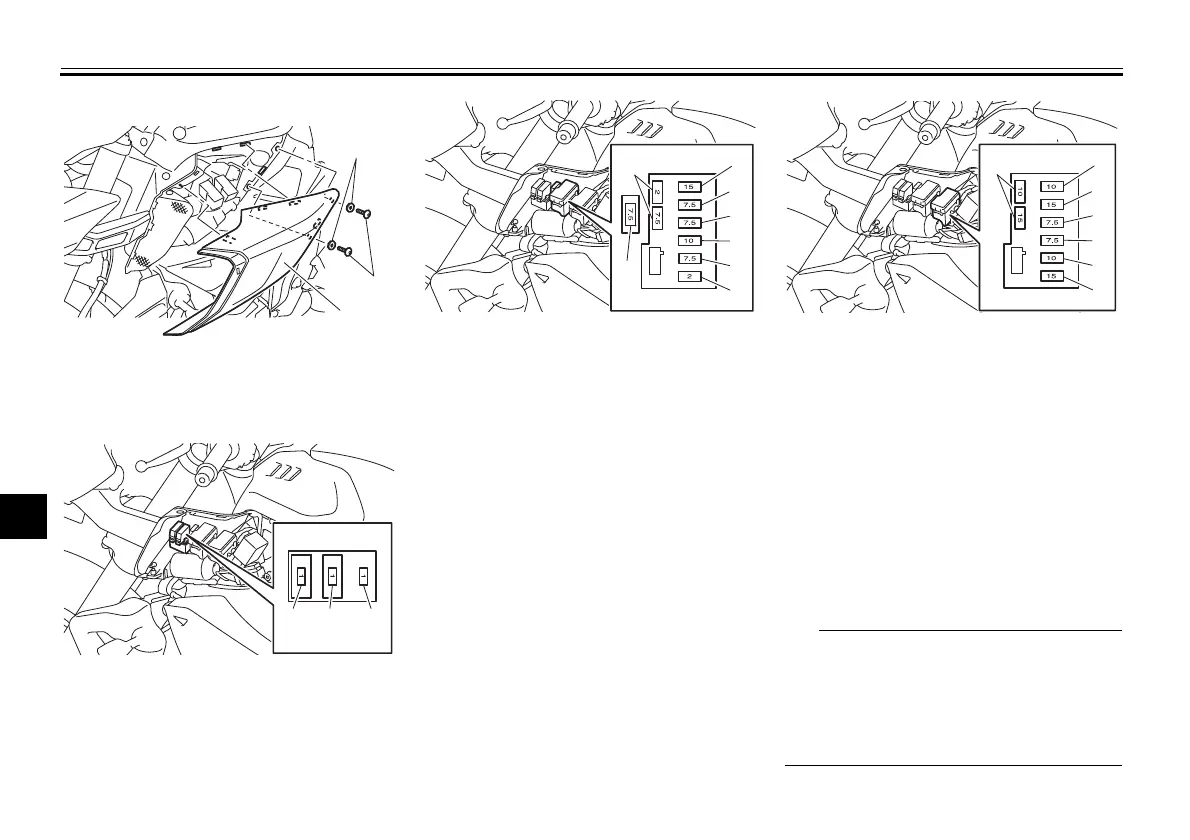

el B off.
3. Place the panels in the original po-
sition.
4. Install the washers, bolts and quick
fasteners.
TIP
The quick fasteners are installed by
pushing out the center pin, inserting the
fastener into the panel, and then by
pushing the center pin flush with the
fastener head.
1. Left side panel B
2. Washer
3. Bolt
1. Brake light fuse
2. Cruise control fuse
3. Spare fuse
1
3
2
321
1. Ignition fuse
2. Signaling system fuse
3. ABS ECU fuse
4. Headlight fuse
5. Hazard fuse
6. Terminal fuse 1 (for auxiliary DC jack)
7. Spare fuse
8. SCU fuse
7
1
2
3
4
5
6
8
1. ABS solenoid fuse
2. Fuel injection system fuse
3. Electronic throttle valve fuse
4. Backup fuse
5. Sub radiator fan motor fuse
6. Radiator fan motor fuse
7. Spare fuse
7
1
2
3
4
5
6
BW8-9-20_1.book 33 ページ ２０１６年１２月１３日 火曜日 午前１１時１８分

Yamaha MT 10 Specifications

General

Engine Type	Liquid-cooled, 4-stroke, DOHC, 4-valve
Displacement	998cc
Bore x Stroke	79.0 mm x 50.9 mm
Compression Ratio	12.0 : 1
Maximum Power	118.0 kW (160.4 PS) @ 11, 500 rpm
Fuel System	Fuel Injection
Ignition System	TCI
Transmission	Constant mesh, 6-speed
Final Drive	Chain
Front Suspension	Telescopic forks
Front Tyre	120/70 ZR17 M/C (58W)
Rear Tyre	190/55 ZR17 M/C (75W)
Overall Length	2, 095 mm
Overall Width	800 mm
Overall Height	1, 110 mm
Seat Height	825 mm
Wheelbase	1, 405 mm
Minimum Ground Clearance	135 mm
Wet Weight	210 kg
Fuel Tank Capacity	17 litres
Maximum Torque	111 Nm (11.3 kg-m) @ 9, 000 rpm
Rear Suspension	Swingarm
Front Brake	Dual hydraulic disc
Rear Brake	Hydraulic disc
Frame	Aluminum Deltabox
