5. Attach the coupler on each fork.
6. Slide the rubber cover to the origi-
nal position.
EAU67393
Adjusting the shock absorber
assembly
This model is is equipped with ÖHLINS
electronic racing suspension.
The compression and rebound damp-
ing forces are electronically adjusted.
(See ERS on page 5-16.)
NOTICE
ECA10102
To avoid damaging the mechanism,
do not attempt to turn beyond the
maximum or minimum settings.
Spring preload

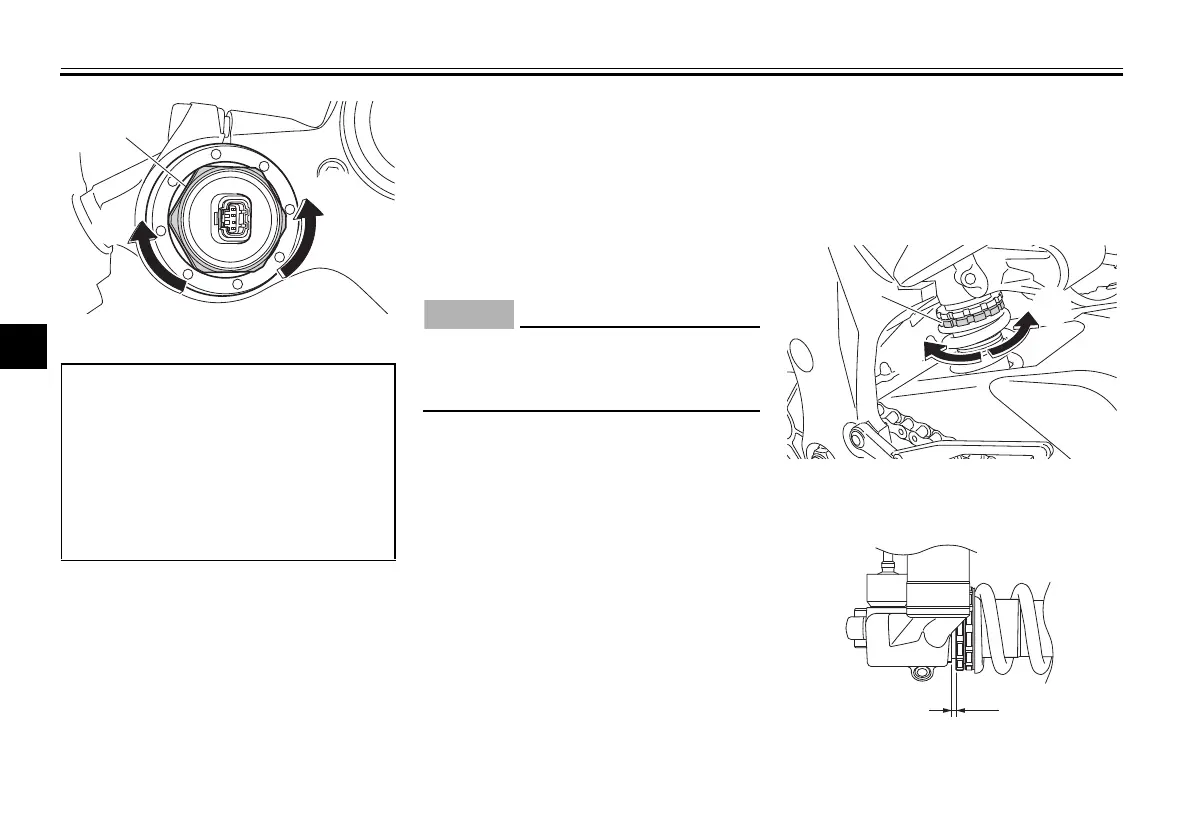

The spring preload adjustment is per-
formed manually.
1. Loosen the locknut.
2. To increase the spring preload and
thereby harden the suspension,
turn the adjusting ring in direction
(a). To decrease the spring pre-
load and thereby soften the sus-
pension, turn the adjusting ring in
direction (b).
The spring preload setting is deter-
mined by measuring distance A.
The longer distance A is, the high-
er the spring preload; the shorter
distance A is, the lower the spring
preload.
 Use the special wrench in the
owner’s tool kit to make the ad-
justment.
1. Spring preload adjusting bolt
Spring preload setting:
Minimum (soft):
0 turn(s) in direction (a)*
Standard:
11 turn(s) in direction (a)*
Maximum (hard):
15 turn(s) in direction (a)*
* With the adjusting nut fully turned in
direction (b)
1
(a)
(b)
1. Spring preload adjusting ring
1. Distance A
1
(a)
(b)
1
