Instrument and control functions
5-27
1
2
3
4
5
6
7
8
9
10
11
12
EAU12822

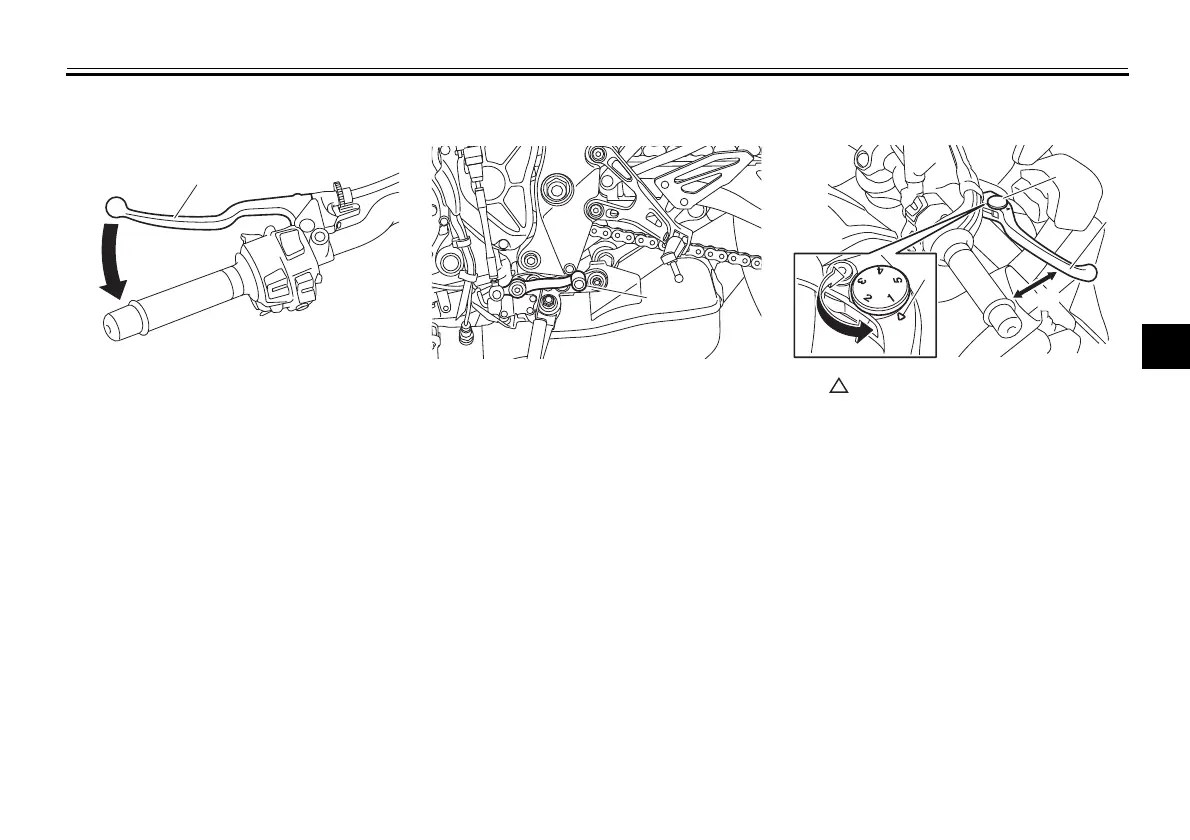

Clutch lever
The clutch lever is located on the left
side of the handlebar. To disengage
the clutch, pull the lever toward the
handlebar grip. To engage the clutch,
release the lever. The lever should be
pulled rapidly and released slowly for
smooth clutch operation.
The clutch lever is equipped with a
clutch switch, which is part of the igni-
tion circuit cut-off system. (See
page 5-37.)
EAU67010
Shift pedal
The shift pedal is located on the left
side of the motorcycle and is used in
combination with the clutch lever when
shifting the gears of the 6-speed con-
stant-mesh transmission.
When the quick-shift system is turned
on, the shift switch senses shift pedal
movement and allows for upshifting
without operating the clutch lever. See
QSS on page 5-15 for more informa-
tion.
EAU26825
Brake lever
The brake lever is located on the right
side of the handlebar. To apply the front
brake, pull the lever toward the throttle
grip.
The brake lever is equipped with a
brake lever position adjusting dial. To
adjust the distance between the brake
lever and the throttle grip, turn the ad-
justing dial while holding the lever
pushed away from the throttle grip.
Make sure that the appropriate setting
on the adjusting dial is aligned with the
1. Clutch lever
1
1. Shift pedal
1
1. “ ” mark
2. Brake lever position adjusting dial
3. Brake lever
4. Distance between brake lever and throttle
grip
4
1
2
3
BW8-9-20_1.book 27 ページ ２０１６年１２月１３日 火曜日 午前１１時１８分

Yamaha MT 10 Specifications

General

Engine Type	Liquid-cooled, 4-stroke, DOHC, 4-valve
Displacement	998cc
Bore x Stroke	79.0 mm x 50.9 mm
Compression Ratio	12.0 : 1
Maximum Power	118.0 kW (160.4 PS) @ 11, 500 rpm
Fuel System	Fuel Injection
Ignition System	TCI
Transmission	Constant mesh, 6-speed
Final Drive	Chain
Front Suspension	Telescopic forks
Front Tyre	120/70 ZR17 M/C (58W)
Rear Tyre	190/55 ZR17 M/C (75W)
Overall Length	2, 095 mm
Overall Width	800 mm
Overall Height	1, 110 mm
Seat Height	825 mm
Wheelbase	1, 405 mm
Minimum Ground Clearance	135 mm
Wet Weight	210 kg
Fuel Tank Capacity	17 litres
Maximum Torque	111 Nm (11.3 kg-m) @ 9, 000 rpm
Rear Suspension	Swingarm
Front Brake	Dual hydraulic disc
Rear Brake	Hydraulic disc
Frame	Aluminum Deltabox
